NSN 8120-00-663-9614 00-663-9614, 006639614
Product Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER
8120-00-663-9614 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.20416600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment42200038Marine Lifesaving and Diving Equipment42400027Safety and Rescue Equipment81200039Commercial and Industrial Gas Cylinders
Part Alternates: 8120-00-663-9614, 00-663-9614, 8120006639614, 006639614
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
81 | 01 JAN 1963 | 00-663-9614 | 21309 ( ADAPTER, COMPRESSED GAS CYLINDER VALVE CONNECTIONS ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 8120-00-663-9614
Related Products | NSN 8120-00-663-9614
Technical Data | NSN 8120-00-663-9614
Characteristic | Specifications |
---|---|
MATERIAL | BRASS |
SURFACE TREATMENT | CHROMIUM PLATED |
SPECIFIC GAS FOR WHICH DESIGNED | OXYGEN |
FIRST END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |
FIRST END STYLE DESIGNATOR | 4 PLAIN |
FIRST END THREAD SIZE | 0.830-14 |
FIRST END THREAD SERIES/TYPE DESIGNATOR | NGO |
FIRST END THREAD DIRECTION | RIGHT-HAND |
SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |

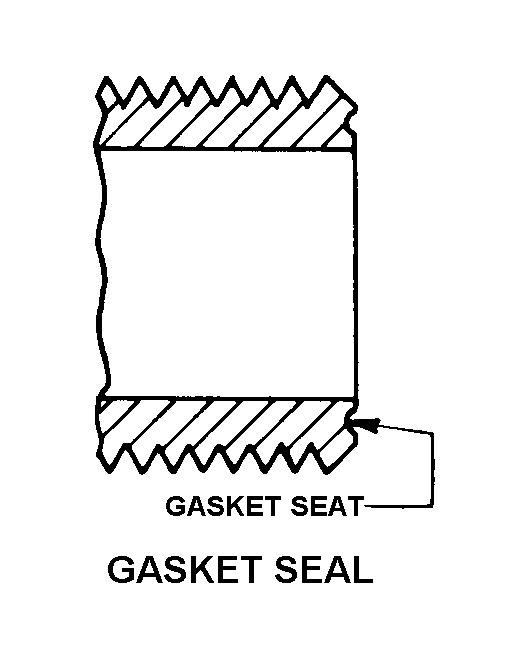

SECOND END STYLE DESIGNATOR | 50 GASKET SEAL |
SECOND END THREAD SIZE | 0.903-14 |
SECOND END THREAD SERIES/TYPE DESIGNATOR | NGO |
SECOND END THREAD DIRECTION | RIGHT-HAND |
SECOND END REDUCED PASSAGE INSIDE DIAMETER | 0.188 INCHES NOMINAL |
UNION END | NOT INCLUDED |
WRENCHING FACILITY | INCLUDED |
WRENCHING FACILITY SHAPE | HEXAGONAL |
OVERALL LENGTH | 2.563 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 8120-00-663-9614
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 095190 | HARDWARE, NOI |
Less than car load rating | P | 77.5 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
