Product Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER

8120-00-527-2413 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.20416600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment42200038Marine Lifesaving and Diving Equipment42400027Safety and Rescue Equipment81200039Commercial and Industrial Gas Cylinders

Part Alternates: 8120-00-527-2413, 00-527-2413, 8120005272413, 005272413

Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders

Supply Group (FSG) NSN Assign. NIIN
81 01 JAN 1963 00-527-2413

Drawings & Photos | NSN 8120-00-527-2413


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 8120-00-527-2413

Technical Data | NSN 8120-00-527-2413

Characteristic Specifications
MATERIAL BRASS
SPECIFIC GAS FOR WHICH DESIGNED HELIUM
FIRST END CONNECTION TYPE THREADED INTERNAL GAS CYLINDER

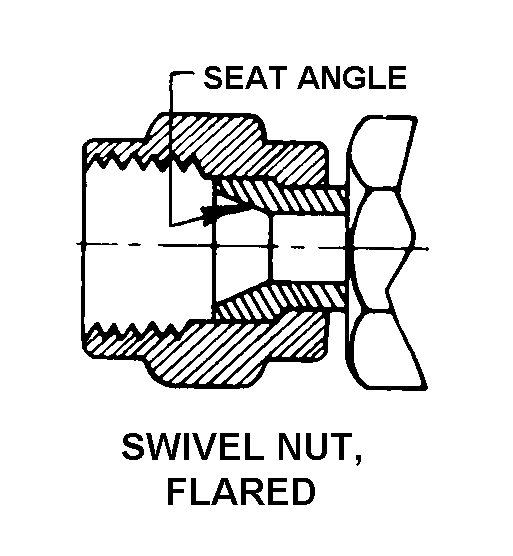

FIRST END STYLE DESIGNATOR 11 SWIVEL NUT, FLARED
FIRST END THREAD SIZE 0.960-14
FIRST END THREAD SERIES/TYPE DESIGNATOR NGO
FIRST END THREAD DIRECTION RIGHT-HAND
SECOND END CONNECTION TYPE THREADED INTERNAL GAS CYLINDER
SECOND END STYLE DESIGNATOR 3 GASKET SEAL
SECOND END THREAD SIZE 0.825-14
SECOND END THREAD SERIES/TYPE DESIGNATOR NGO
SECOND END THREAD DIRECTION LEFT-HAND
SECOND END REDUCED PASSAGE INSIDE DIAMETER 0.188 INCHES NOMINAL
UNION END NOT INCLUDED
WRENCHING FACILITY INCLUDED
WRENCHING FACILITY SHAPE HEXAGONAL
OVERALL LENGTH 3.188 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 8120-00-527-2413

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 8120-00-527-2413

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
