NSN 8120-00-081-8297 D1166180, D116-6-180, 00-081-8297
Product Details | COMPRESSED GAS CYLINDER
8120-00-081-8297 Empty cylinder only.
Part Alternates: D1166180, D116-6-180, 8120-00-081-8297, 00-081-8297, 8120000818297, 000818297
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 01 JAN 1963 | 00-081-8297 | 49517 ( CYLINDER, COMPRESSED GAS, AIR TECHNICAL ) |
Drawings & Photos | NSN 8120-00-081-8297
Cross Reference | NSN 8120-00-081-8297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D116-6-180 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8120-00-081-8297
Related Products | NSN 8120-00-081-8297
Technical Data | NSN 8120-00-081-8297
| Characteristic | Specifications |
|---|---|
| SHATTERPROOF FEATURE | INCLUDED |

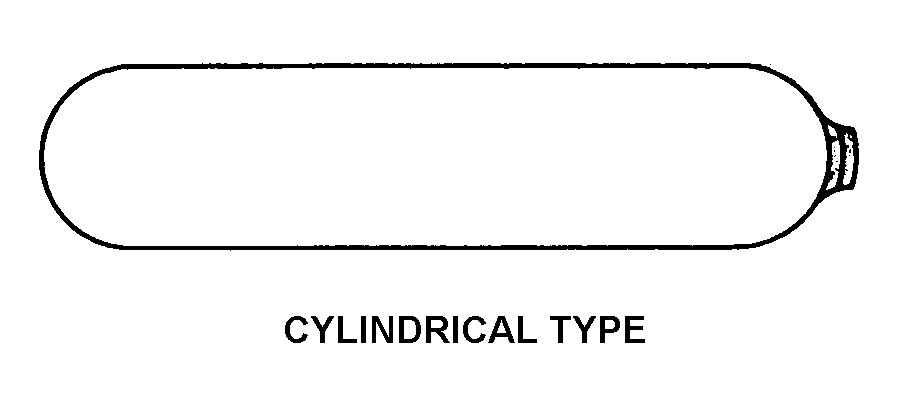

| CYLINDER STYLE DESIGNATOR | 3 CYLINDRICAL TYPE |
| MAXIMUM OPERATING PRESSURE | 2250.0 POUNDS PER SQUARE INCH |
| SPECIFIC GAS FOR WHICH DESIGNED | COMPRESSED AIR |
| CAPACITY RATING | 730.000 CUBIC INCHES NOMINAL |
| NECK THREAD LOCATION | EXTERNAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 NPT |
| NECK CLOSURE | NOT PROVIDED |
| CROSS SECTION OUTSIDE DIAMETER | 6.810 INCHES NOMINAL |
| OVERALL HEIGHT | 25.000 INCHES NOMINAL |
| III FUNCTIONAL CLASSIFICATION | INTENDED TO HOLD COMPRESSED AIR |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | D116-6-180 |
Restrictions/Controls & Freight Information | NSN 8120-00-081-8297
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 9 | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041160 | CYLINDERS(AIR/GAS/LIQUID)SUB 3 |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | E | Empty hazardous material containers or packages (empty label) |
Management | NSN 8120-00-081-8297
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | B | Ground Forces Support Materiel (Other Support Materiel) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Z | Other Munitions/CBR Categories |
| Weapons Systems/End Item or Homogeneous Group | ZF | Disperser Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | A12 | US Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 9 | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
