NSN 8120-00-037-9666 2500-0010-1, 00-037-9666, 250000101
Product Details | TECHNICAL OXYGEN COMPRESSED GAS CYLINDER
8120-00-037-9666 Empty cylinder only.
Part Alternates: 2500-0010-1, 8120-00-037-9666, 00-037-9666, 8120000379666, 250000101, 000379666
Containers, Packaging, and Packing Supplies | Commercial and Industrial Gas Cylinders
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 03 NOV 1972 | 00-037-9666 | 49505 ( CYLINDER, COMPRESSED GAS, OXYGEN, TECHNICAL ) |
Drawings & Photos | NSN 8120-00-037-9666
Cross Reference | NSN 8120-00-037-9666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2500-0010-1 | 04577 | CARLETON TECHNOLOGIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8120-00-037-9666
Related Products | NSN 8120-00-037-9666
Technical Data | NSN 8120-00-037-9666
| Characteristic | Specifications |
|---|---|

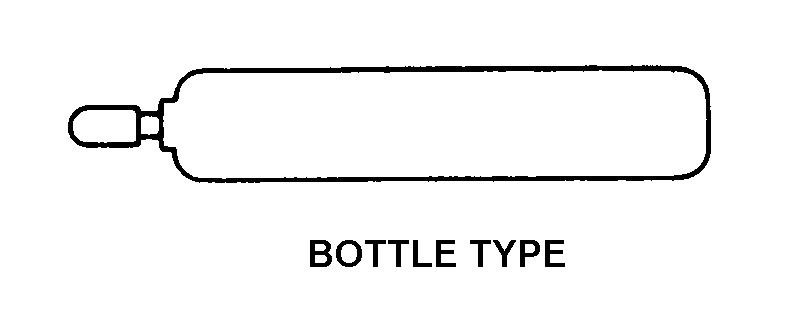

| CYLINDER STYLE DESIGNATOR | 1 BOTTLE TYPE |
| MAXIMUM OPERATING PRESSURE | 1800.0 POUNDS PER SQUARE INCH |
| PART A COLOR CODE | GREEN |
| PART B COLOR CODE | GREEN |
| PART C COLOR CODE | GREEN |
| BODY COLOR CODE | GREEN |
| COLOR CODED GAS TYPE | OXYGEN |
| NECK THREAD LOCATION | EXTERNAL |
| CROSS SECTION OUTSIDE DIAMETER | 3.365 INCHES MINIMUM AND 3.385 INCHES MAXIMUM |
| OVERALL HEIGHT | 13.150 INCHES NOMINAL |
| MANUFACTURERS CODE | 04577 |
| DESIGN CONTROL REFERENCE | 2500-0010-1 |
Restrictions/Controls & Freight Information | NSN 8120-00-037-9666
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041160 | CYLINDERS(AIR/GAS/LIQUID) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 8120-00-037-9666
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
