NSN 8105-01-395-7063 2070530, 01-395-7063, 013957063
Product Details | CABLE STORAGE BAG
8105-01-395-7063 A canvas bag with metal frame or snap fastening devices used to attach the bag to the launch tube wall. It is designed to store or hold the electrical power cable providing power between the work cage pendant and hoisting assembly. It may be water proof, cotton duck canvas, laminated canvas, or rubber coated canvas.
Part Alternates: 2070530, 8105-01-395-7063, 01-395-7063, 8105013957063, 013957063
Containers, Packaging, and Packing Supplies | Bags and Sacks
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
81 | 02 SEP 1994 | 01-395-7063 | 41451 ( BAG, CABLE STORAGE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 8105-01-395-7063
Related Products | NSN 8105-01-395-7063
Technical Data | NSN 8105-01-395-7063
Characteristic | Specifications |
---|---|

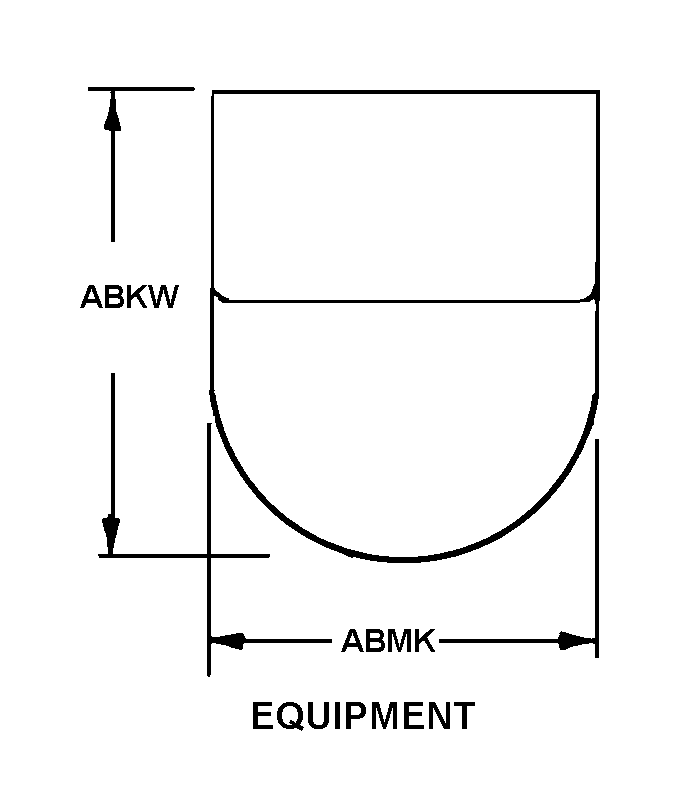

STYLE DESIGNATOR | A20 EQUIPMENT |
OVERALL HEIGHT | 17.000 INCHES NOMINAL |
OVERALL WIDTH | 16.500 INCHES NOMINAL |
MATERIAL AND LOCATION | COTTON DUCK, CCC-C-419, TYPE 1 SINGLE WALL |
COLOR | GREEN |
ASSEMBLY METHOD | STITCHING |
CLOSURE FASTENING TYPE | LAP-OVER TOP |
OPENING LOCATION | TOP |
Restrictions/Controls & Freight Information | NSN 8105-01-395-7063
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 8105-01-395-7063
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
