NSN 8105-01-097-4507 MB800812, MILB117, MIL-B-117
Product Details | PLASTIC BAG
8105-01-097-4507 NOTE: Do not use if a more specific name applies.
Part Alternates: MB800812, MILB117, MIL-B-117, MIL-B-117 TY1CLAST2, MILB117TY1CLAST2, MILR55182, RNC65J8000BS , 2100 8X12, 21008X12, 8105-01-097-4507, 01-097-4507, 8105010974507, 010974507
Containers, Packaging, and Packing Supplies | Bags and Sacks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | 12 JUL 1980 | 01-097-4507 | 16183 ( BAG, PLASTIC ) |

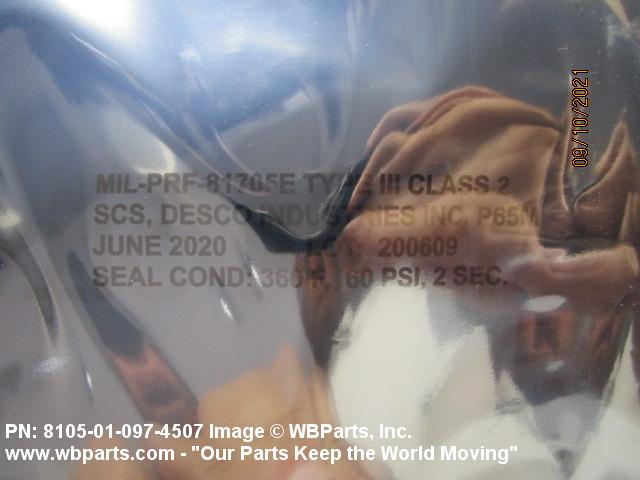

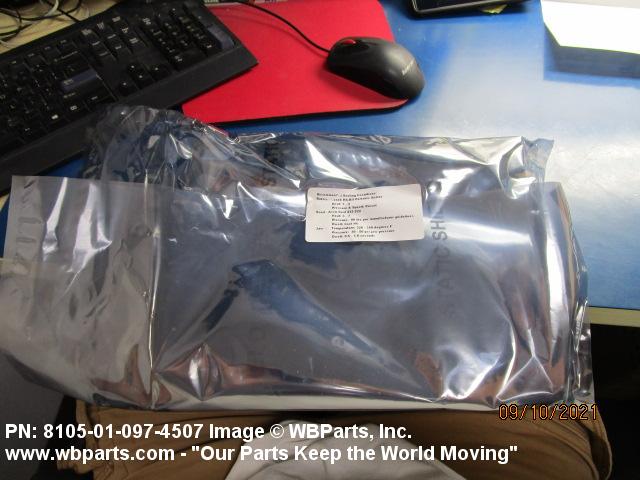

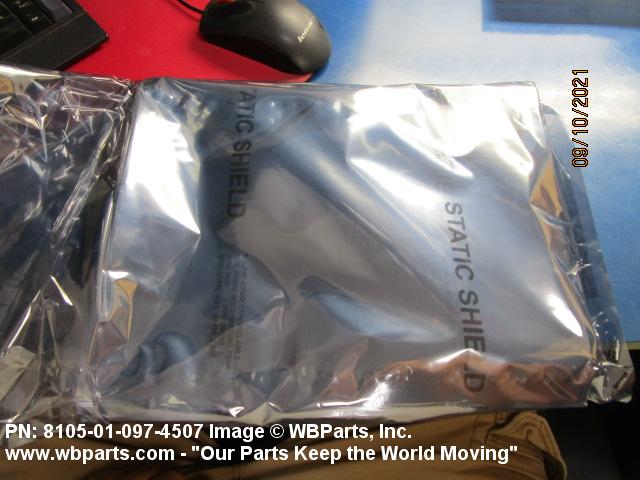

Drawings & Photos | NSN 8105-01-097-4507
Demand History | NSN 8105-01-097-4507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8105-01-097-4507 | 2024-04-26 | 1 | US |
| MILB117 | 2021-12-21 | 1 | US |
| MILB117 | 2021-11-16 | 1 | US |
| 8105-01-097-4507 | 2021-08-24 | 2 | United States |
| MILB117TY1CLAST2 | 2017-03-23 | 2 | US |
| 2100 8X12 | 2014-06-11 | 23 | US |
| 8105-01-097-4507 | 2014-06-11 | 23 | MANUAL |
| MILB117 | 2012-05-14 | 200 | US |
Cross Reference | NSN 8105-01-097-4507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2100 8X12 | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| 2100 8X12 | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| 2100 8X12 | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| MB800812 | 60872 | STATIC INC |
| MIL-B-117 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-117 TY1CLAST2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 8105-01-097-4507
Related Products | NSN 8105-01-097-4507
Technical Data | NSN 8105-01-097-4507
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 FLAT |
| OVERALL HEIGHT | 12.000 INCHES NOMINAL |
| FACE WIDTH | 8.000 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | WATERPROOF AND ANTISTATIC TREATED |
| ASSEMBLY METHOD | HEAT SEAL |
| PERFORATION FEATURE | NOT INCLUDED |
| MATERIAL TRANSPARENCY | CLEAR |
| CLOSURE FASTENING TYPE | HEAT SEAL |
| OPENING LOCATION | TOP |
| SPECIAL FEATURES | MATERIAL: BARRIER MATERIAL PER MIL-B-81705, TYPE 2 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND A CLASS AND 2 STYLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-117 |
Restrictions/Controls & Freight Information | NSN 8105-01-097-4507
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 8105-01-097-4507
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
