Product Details | CHEMICALLY TREATED ALUMINUM CORROSION RESISTANT COATING

8030-01-643-8671 A compound of nonspecific material designed for use as a corrosion resistant coating on anodized aluminum or aluminum that has received other chemical corrosion preventive treatment.

Part Alternates: BONDERITE M-CR 1201 AERO , BONDERITEMCR1201AERO, MILDTL81706, MIL-DTL-81706 , 1938801 , 594418, 8030-01-643-8671, 01-643-8671, 8030016438671, 016438671

Brushes, Paints, Sealers, and Adhesives | Preservative and Sealing Compounds

Supply Group (FSG) NSN Assign. NIIN
80 2015105 01-643-8671

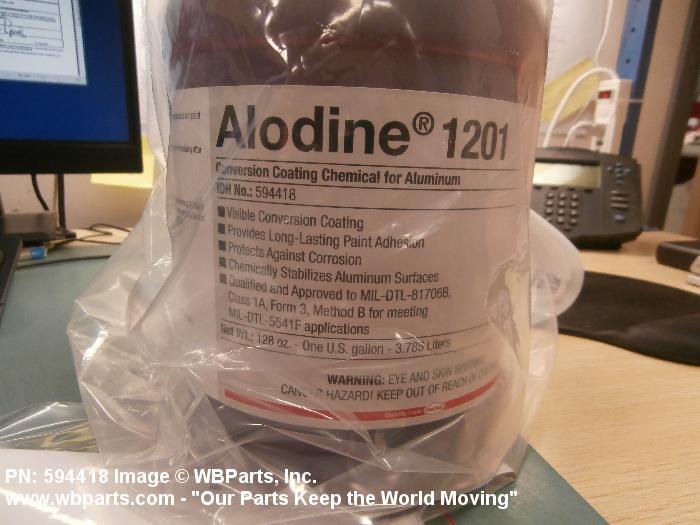

Drawings & Photos | NSN 8030-01-643-8671


Demand History | NSN 8030-01-643-8671

Part Number Request Date QTY Origin
8030-01-643-8671 2024-02-40 80 US
8030-01-643-8671 2021-06-166 1 AE
MILDTL81706 2020-05-135 1 BN
594418 2014-08-226 1 United States
MILDTL81706 2013-01-03 1 United States

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 8030-01-643-8671

Technical Data | NSN 8030-01-643-8671

Characteristic Specifications
SPECIAL MARKINGS DANGER: MAY CAUSE AN ALLERGIC SKIN REACTION. MAY CAUSE CANCER
SPECIAL FEATURES PACKAGING SIZE:15 KG; PHYSICAL STATE: LIQUID; COLOR: ORANGE; PH: <2; BOILING POINT/RANGE: >100¬C (>212¬F); MELTING POINT/RANGE: 0C (32¬F) CALCULATED; SPECIFIC GRAVITY: 1.00-1.02 AT 60¬F (15.56¬C); SAFE STORAGE, STORE AT OR ABOVE 40¬F (4.4¬C); HAZARDOUS COMPONENTS: CHROMIC ACID, FERROCYANIDE COMPOUND; ALSO KNOWN AS ALODINE 1201
PROTECTIVE STORAGE FEATURE CONTROLLED ROOM TEMPERATURE
III STORAGE TEMP RANGE -40.0 TO 40.0 DEG FAHRENHEIT
III END ITEM IDENTIFICATION CONVERSION COATING
III DOT IDENTIFICATION NUMBER UN3082
III DOT HAZARD CLASS/DIVISION 9
III LEVEL OF DERMAL IRRITATION POTENTIAL STRONG
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-DTL-81706

Restrictions/Controls & Freight Information | NSN 8030-01-643-8671

Category Code Description
Hazardous Material Indicator CodeDThere is no information in the HMIS; however, the NSN is in an FSC in Table I of Federal Standard 313 and an MSDS should be available to the user
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
