NSN 7920-00-255-5135 AA3118, A-A-3118, AA3118/B6
Product Details | SCRATCH WIRE BRUSH
7920-00-255-5135 An item having a wire fill section made with round wire inset in a wooden block which may have a handle. It is designed for removing loose paint, rust, and the like.20213860090Underwater Use Explosive Ordnance Disposal and Swimmer Weapons Systems Tools and Equipment79200034Brooms, Brushes, Mops, and Sponges
Part Alternates: AA3118, A-A-3118, AA3118/B6, AA3118B6, B822017, B-82-2017, CHS372BC, CHS-372-BC, HB178, DEFR474 , B82, B-82, 003113T , 2297C627, 7920-00-255-5135, 00-255-5135, 7920002555135, 002555135
Cleaning Equipment and Supplies | Brooms, Brushes, Mops, and Sponges
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 79 | 01 JAN 1963 | 00-255-5135 | 04088 ( BRUSH, WIRE, SCRATCH ) |
Drawings & Photos | NSN 7920-00-255-5135
Demand History | NSN 7920-00-255-5135
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7920-00-255-5135 | 2021-08-221 | 1 | United States |
| HB178 | 2019-08-233 | 20 | US |
| HB178 | 2017-01-10 | 7 | US |
| HB178 | 2017-01-10 | 7 | US |
| HB178 | 2016-06-179 | 25 | SA |
| 7920-00-255-5135 | 2011-03-76 | 50 | SA |
| 7920-00-255-5135 | 2010-10-297 | 60 | SA |
Cross Reference | NSN 7920-00-255-5135
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7920-00-255-5135 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| 7920-00-255-5135 | 83421 | NATIONAL INDUSTRIES FOR THE BLIND |
| A-A-3118 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA3118/B6 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B-82 | 61452 | NGK METALS CORPORATION DBA N G K BERYLCO |
| B-82-2017 | 61452 | NGK METALS CORPORATION DBA N G K BERYLCO |
| CHS-372-BC | 85211 | DIXON AND RIPPEL DIV BELLERN RESEARCH CORP |
| HB178 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7920-00-255-5135
Related Products | NSN 7920-00-255-5135
Technical Data | NSN 7920-00-255-5135
| Characteristic | Specifications |
|---|---|

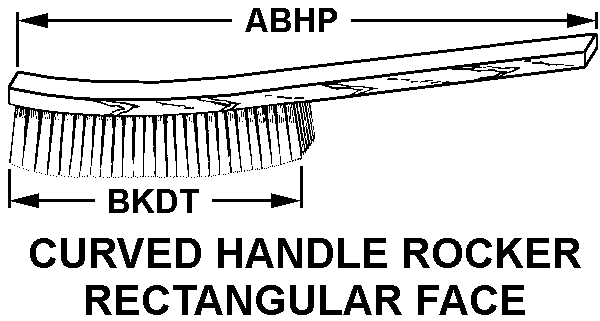

| STYLE DESIGNATOR | D7 CURVED HANDLE ROCKER RECTANGULAR FACE |
| OVERALL LENGTH | 13.750 INCHES MINIMUM AND 14.250 INCHES MAXIMUM |
| BRUSH PART LENGTH | 5.750 INCHES MINIMUM AND 6.000 INCHES MAXIMUM |
| BRUSH PART MATERIAL | BERYLLIUM COPPER ALLOY |
| BRUSH MATERIAL EXPOSED LENGTH | 1.125 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| BRUSH ROW QUANTITY ALONG WIDTH | 3 |
| BRUSH ROW QUANTITY ALONG LENGTH | 19 |
| SPARKPROOF FEATURE | INCLUDED |
| SPECIAL FEATURES | THE FILLER IS COPPER BERRYLIUM, 0.10 IN. DIA.; BRUSH CONTAINS 1.0 OZ. OF FILLER, BLOCK IS CLOSE-GRANINED, STRAIGHT GRAINED, WOOD OR GENERAL PURPOSE IMPACT RESISTANT PLASTIC; BLOCKS ARE ONE PIECE; FILLER IS STAPLE SET |
Restrictions/Controls & Freight Information | NSN 7920-00-255-5135
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 764 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7920-00-255-5135
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
