NSN 7910-00-632-9840 MODEL 55, MODEL55, C8735501
Product Details | PNEUMATIC VACUUM CLEANER
7910-00-632-9840 An air operated cleaning device, without moving parts for power operation, which picks up dust, particles of industrial scrap, liquids, and/or sludge, by suction and deposits them in a tank type receptacle.
Part Alternates: MODEL 55, MODEL55, C8735501, C87355-01, 551AS, 55-1AS, 5520, 55-20, 7910-00-632-9840, 00-632-9840, 7910006329840, 006329840
Cleaning Equipment and Supplies | Floor Polishers and Vacuum Cleaning Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 79 | 01 JAN 1963 | 00-632-9840 | 28055 ( CLEANER, VACUUM, PNEUMATIC ) |

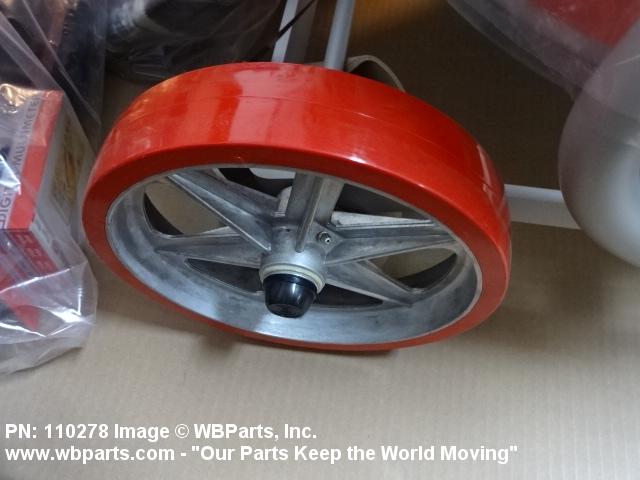

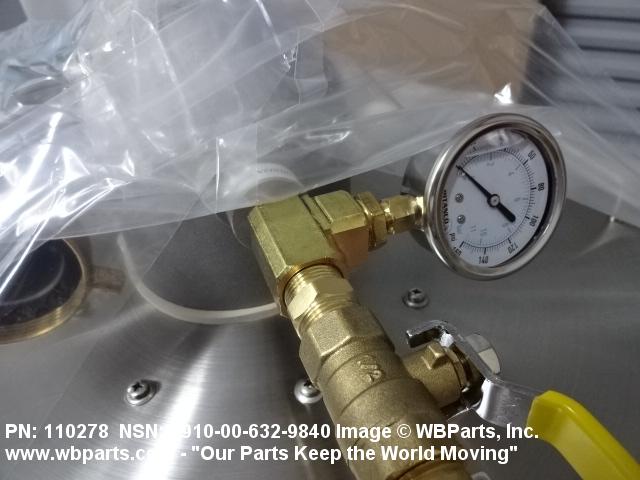

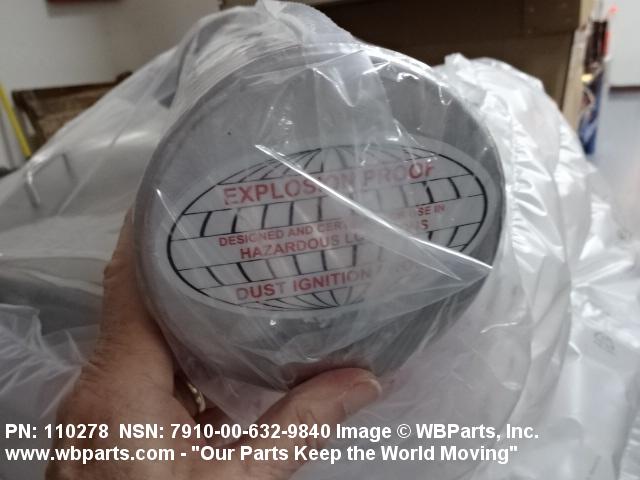

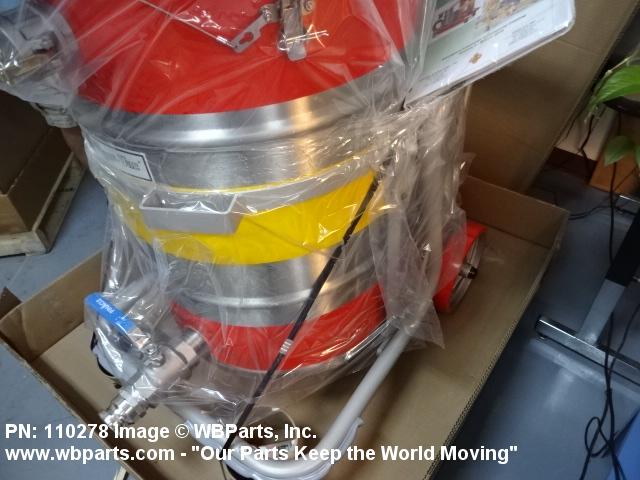

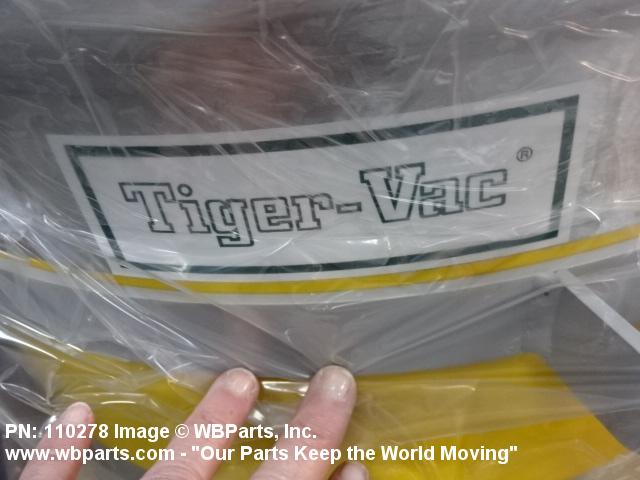

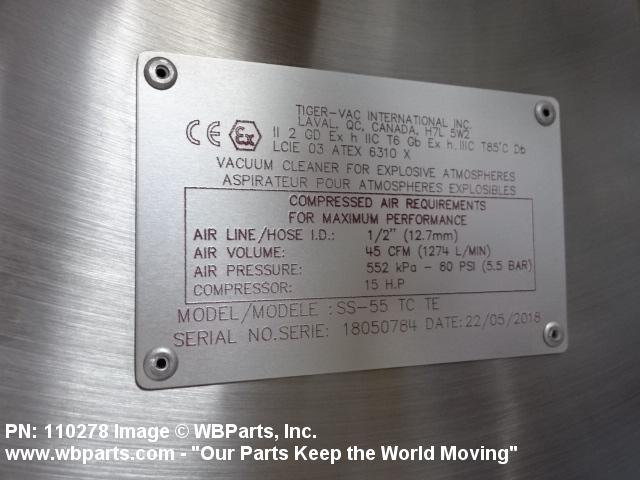

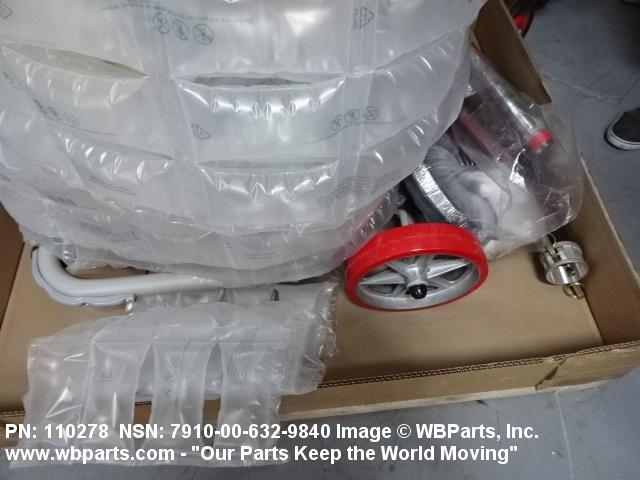

Drawings & Photos | NSN 7910-00-632-9840
Demand History | NSN 7910-00-632-9840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7910-00-632-9840 | 2018-03-73 | 2 | United States |
| 7910-00-632-9840 | 2018-03-62 | 1 | PK |
| 7910-00-632-9840 | 2016-11-312 | 3 | United States |
| 7910-00-632-9840 | 2014-04-105 | 3 | US |
| 5520 | 2011-09-257 | 1 | |
| 7910-00-632-9840 | 2010-09-249 | 2 | PK |
| 7910-00-632-9840 | 2010-08-236 | 1 | AR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7910-00-632-9840
Related Products | NSN 7910-00-632-9840
Technical Data | NSN 7910-00-632-9840
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | VERTICAL TANK |
| SEPARATOR TYPE | INCLOSED |
| MOUNTING TYPE | WHEEL |
| OPERATION METHOD | AIR |
| MINIMUM AIR PRESSURE REQUIRED | 30.0 POUNDS PER SQUARE INCH |
| AIR CONSUMPTION RATE | 46 CFM AT 100 PSI |
| REVOLVING BRUSH | NOT INCLUDED |
| BLOWER OUTLET | NOT INCLUDED |
| WATER LIFT DESIGN FEATURE | INCLUDED |
| SPECIAL FEATURES | A.W/NON-FERROUS VACUUM HOSE INLET, B.RATED ANTISPARKING, TOOL INCLUDE WAND, FLOOR TOOL, HOSE AND CREVICE TOOL |
Restrictions/Controls & Freight Information | NSN 7910-00-632-9840
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132680 | MACHINERY:VACUUM CLEANERS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7910-00-632-9840
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
