NSN 7690-01-562-3963 J5316AF, J5316-AF, 01-562-3963
Product Details | DECAL
7690-01-562-3963 A design, picture, legend, or shape processed on specially prepared paper for transferring by the decalcomania process to china, glass, metal, porcelain, plastic, and like surfaces. See also MARKER, IDENTIFICATION.
Part Alternates: J5316AF, J5316-AF, 7690-01-562-3963, 01-562-3963, 7690015623963, 015623963
Books, Maps, and Other Publications | Miscellaneous Printed Matter
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 76 | 08 APR 2008 | 01-562-3963 | 03194 ( DECAL ) |

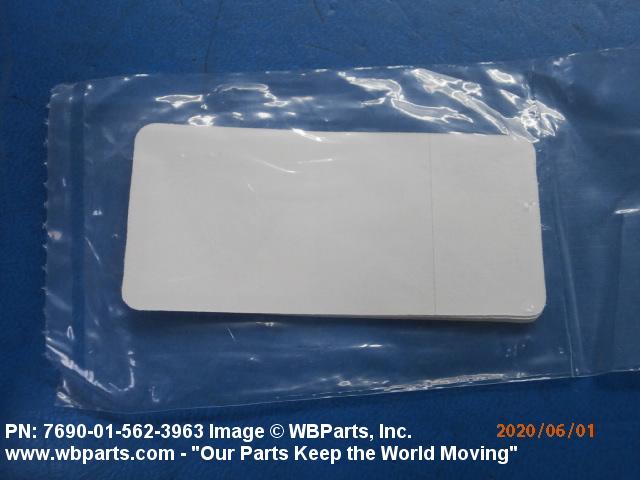

Drawings & Photos | NSN 7690-01-562-3963
Demand History | NSN 7690-01-562-3963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J5316-AF | 2023-07-190 | 21 | DIBBS |
| J5316-AF | 2021-06-158 | 7 | DIBBS |
| J5316-AF | 2021-05-129 | 2 | DIBBS |
| 7690-01-562-3963 | 2020-05-141 | 2 | United States |
| J5316AF | 2013-08-218 | 1 | US |
| 7690-01-562-3963 | 2012-10-277 | 3 | US |
Cross Reference | NSN 7690-01-562-3963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J5316-AF | 398N3 | SAFETY SIGNS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7690-01-562-3963
Related Products | NSN 7690-01-562-3963
Technical Data | NSN 7690-01-562-3963
| Characteristic | Specifications |
|---|---|
| MARKING DESIGNATION | LEGEND 1ST SIDE |
| INSCRIPTION | WARNING HAZARDOUS VOLTAGE. DISCONNECT POWER BEFORE SERVICING. 1ST SIDE |
| COLOR | BLACK 1ST SIDE INSCRIPTION ORANGE AND WHITE AND YELLOW 1ST SIDE INSCRIPTION BACKGROUND |
| FEATURES PROVIDED | PRESSURE SENSITIVE ADHESIVE TAPE |
| BASIC SHAPE STYLE | A1A SQUARE W/ROUNDED CORNERS |
| WIDTH | 3.000 INCHES NOMINAL |
| LENGTH | 1.375 INCHES NOMINAL |
| END ITEM IDENTIFICATION | AN/TPN-31A, GROUND CONTROL APPROACH SYSTEM |
Restrictions/Controls & Freight Information | NSN 7690-01-562-3963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 152900 | PAPER DECALCOMANIAS/HEAT TRNSF |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 737 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | G | Printed forms, publications, drawings, training guides, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7690-01-562-3963
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
