Product Details | DECAL

7690-00-962-2908 A design, picture, legend, or shape processed on specially prepared paper for transferring by the decalcomania process to china, glass, metal, porcelain, plastic, and like surfaces. See also MARKER, IDENTIFICATION.

Part Alternates: 2310059, 7690-00-962-2908, 00-962-2908, 7690009622908, 009622908

Books, Maps, and Other Publications | Miscellaneous Printed Matter

Supply Group (FSG) NSN Assign. NIIN
76 01 JAN 1963 00-962-2908

Drawings & Photos | NSN 7690-00-962-2908


Cross Reference | NSN 7690-00-962-2908

Part Number Cage Code Manufacturer
2310059 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 7690-00-962-2908

Technical Data | NSN 7690-00-962-2908

Characteristic Specifications
INSCRIPTION ALTERNATE QUADRANTS BLACK ON A WHITE BACKGROUND OF THE 1.000 IN. DIA. DECAL
COLOR BLACK, FED STD 595, 17038 INSCRIPTION WHITE, FED STD 595, 17875 INSCRIPTION BACKGROUND
FEATURES PROVIDED REFLECTIVE SURFACE

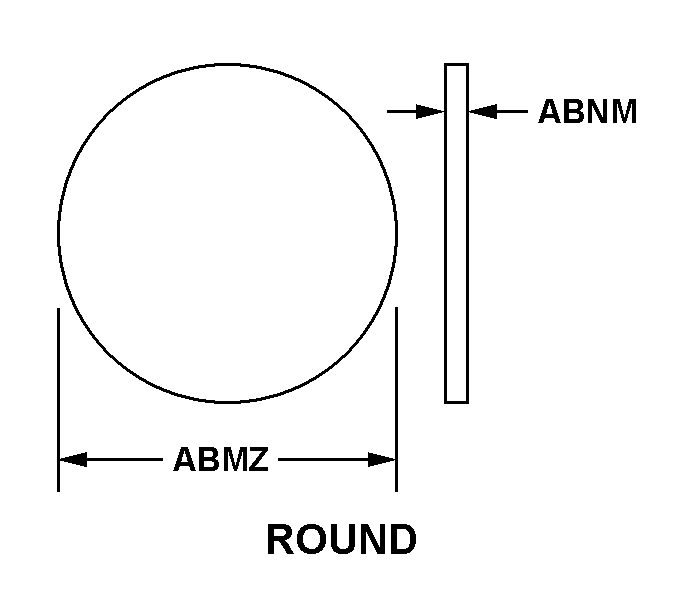

BASIC SHAPE STYLE A22 ROUND
DIAMETER 1.000 INCHES NOMINAL
ENVIRONMENTAL PROTECTION WATER RESISTANT
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 2310059

Restrictions/Controls & Freight Information | NSN 7690-00-962-2908

Category Code Description
Shelf-Life Code:M24 months
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 152900 PAPER DECALCOMANIAS/HEAT TRNSF
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 737 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity G Printed forms, publications, drawings, training guides, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 7690-00-962-2908

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life CodeM24 months
Purchasing QTY
UOM
1
EA : Each
