NSN 7510-00-720-7516 BT2005, BT20051, BT2005-1
Product Details | PRESSURE SENSITIVE ADHESIVE TAPE
7510-00-720-7516 A flexible item in roll form, six inches (152.4mm) 0r less in width, designed to be affixed to an object by adhesion. It does not contain coding signification, legendary characters, or printed data of any type. Includes masking tape. Excludes TAPE, ADHESIVE, RUBBER; TAPE, INSULATION, ELECTRICAL; TAPE, SEMI-CONDUCTING, ELECTRICAL; and TAPE, SHIELDING, ELECTRICAL.
Part Alternates: BT2005, BT20051, BT2005-1, S10310, S-10310 , XT000725611, XT-0007-2561-1, DT999980139, DT-9999-8013-9, L-T-80, P11 25X55, P1125X55, LT80, 3M 425 , 3M 425-25MM , 3M425, 3M42525MM, 425, 425 1 IN., 4251IN, 70006386968, 7510-00-720-7516, 00-720-7516, 7510007207516, 007207516
Office Supplies and Devices | Office Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 75 | 01 JAN 1963 | 00-720-7516 | 11212 ( TAPE, PRESSURE SENSITIVE ADHESIVE ) |
Drawings & Photos | NSN 7510-00-720-7516
Demand History | NSN 7510-00-720-7516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70006386968 | 2023-11-332 | 1 | DIBBS |
| BT2005-1 | 2023-11-332 | 1 | DIBBS |
| S-10310 | 2023-11-332 | 1 | DIBBS |
| 7510-00-720-7516 | 2022-02-38 | 72 | United States |
| 7510-00-720-7516 | 2019-07-212 | 6 | United States |
| 7510-00-720-7516 | 2019-07-197 | 6 | United States |
| 4251IN | 2019-06-176 | 1 | Norway |
| 3M425 | 2017-10-283 | 1 | MY |
| 7510-00-720-7516 | 2017-10-279 | 6 | Malaysia |
| 7510-00-720-7516 | 2017-10-279 | 9 | Malaysia |
| 7510-00-720-7516 | 2017-10-275 | 3 | Malaysia |
| 7510-00-720-7516 | 2017-10-275 | 3 | Malaysia |
| 7510-00-720-7516 | 2015-03-73 | 2 | DIBBS |
| 7510-00-720-7516 | 2015-01-08 | 2 | DIBBS |
| 425 | 2013-07-190 | 10 | United States |
| 3M 425 | 2013-05-134 | 10 | CZ |
| 7510-00-720-7516 | 2013-01-16 | 2 | United States |
| 7510-00-720-7516 | 2009-06-169 | 50 | Canada |
Cross Reference | NSN 7510-00-720-7516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M 425 | 52152 | 3M COMPANY DIV INDUSTRIAL ADHESIVES AND TAPES |
| 3M 425 | K8767 | 3M UNITED KINGDOM PLC DBA 3M NORTHALLERTON |
| 3M 425-25MM | K8767 | 3M UNITED KINGDOM PLC DBA 3M NORTHALLERTON |
| 425 | 26066 | MINNESOTA MINING AND MFG CO INDUSTRIAL TAPE DIV |
| 425 | 52152 | 3M COMPANY DIV INDUSTRIAL ADHESIVES AND TAPES |
| 425 1 IN. | 26066 | MINNESOTA MINING AND MFG CO INDUSTRIAL TAPE DIV |
| 425 1 IN. | 52152 | 3M COMPANY DIV INDUSTRIAL ADHESIVES AND TAPES |
| 70006386968 | 76381 | 3M COMPANY DBA 3M |
| BT2005 | 0E7C4 | BRON TAPES OF COLORADO INC. |
| BT2005-1 | 0E7C4 | BRON TAPES OF COLORADO INC. |
| DT-9999-8013-9 | D2607 | 3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE & |
| L-T-80 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| P11 25X55 | B0936 | STOKVIS TAPES NV |
| S-10310 | 7Z049 | ULINE, INC. DBA ULINE |
| XT-0007-2561-1 | D2607 | 3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE & |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7510-00-720-7516
Related Products | NSN 7510-00-720-7516
Technical Data | NSN 7510-00-720-7516
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| COLOR | SILVER OVERALL |
| MATERIAL TRANSPARENCY | OPAQUE |
| SURFACE LUSTER | GLOSS |
| NOMINAL LENGTH | 60.0 YARDS |

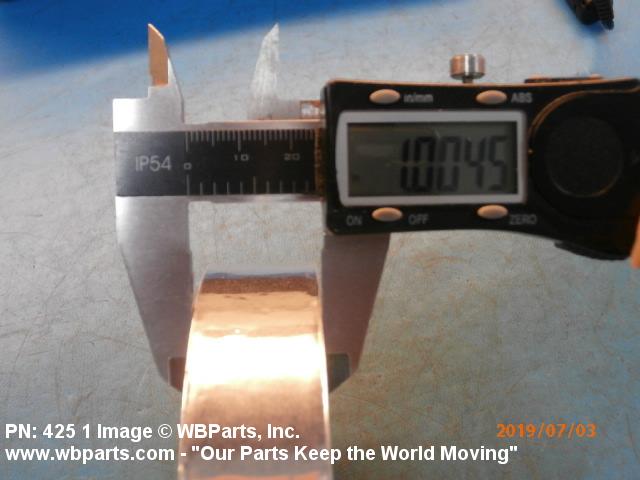

| NOMINAL WIDTH | 1.000 INCHES |
| MINIMUM TENSILE STRENGTH | 30 POUNDS PER SQUARE INCH |
| CORE NOMINAL DIAMETER | 3.000 INCHES |
| NOMINAL OVERALL THICKNESS | 0.0050 INCHES |
| ADHESIVE LOCATION | ONE SIDE |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 7510-00-720-7516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 4 | 12 months |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7510-00-720-7516
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
