NSN 7050-01-029-7325 21441282, 2144128-2, 3631
Product Details | DIGITAL TO ANALOG CONVERTER
7050-01-029-7325 A device whose output signal is a continuous average of a discrete input signal of predetermined form, rate, and sequence. See also CONVERTER, DIGITAL TO DIGITAL. Excludes MICROCIRCUIT (1), (as modified).20270500014ADP COMPONENTS77350075Parts and Accessories of Phonographs, Radios, and Television Set: Home Type
Part Alternates: 21441282, 2144128-2, 3631, 7050-01-029-7325, 01-029-7325, 7050010297325, 010297325
Automatic Data Processing Equipment (Including Firmware), Software, Supplies and Support Equipment | ADP Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 70 | 21 OCT 1976 | 01-029-7325 | 60308 ( CONVERTER, DIGITAL TO ANALOG ) |

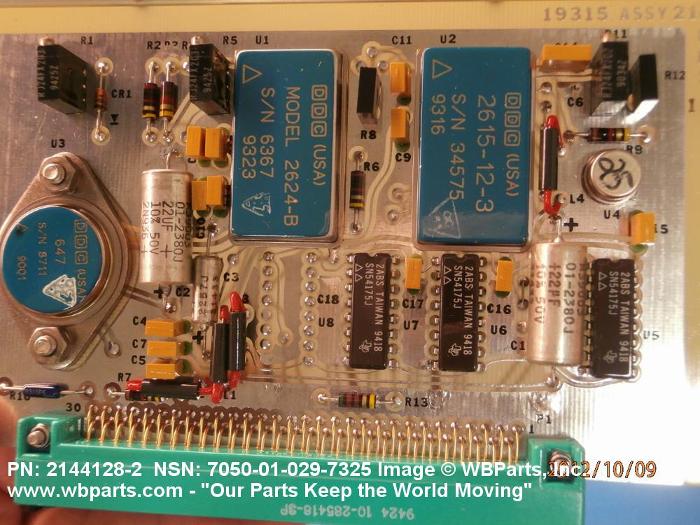

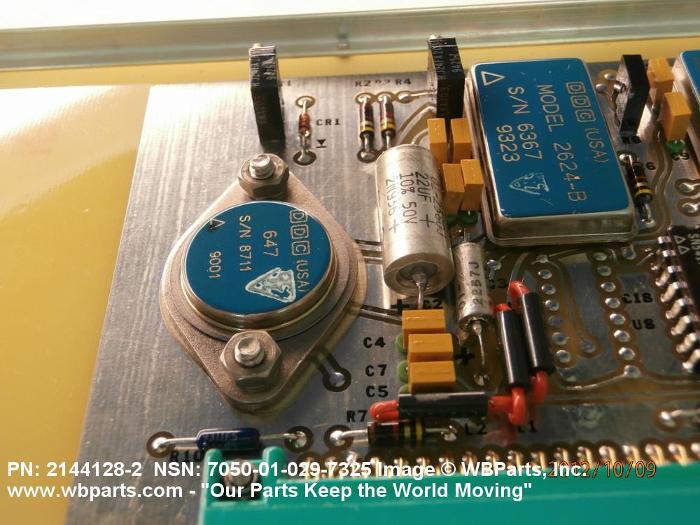

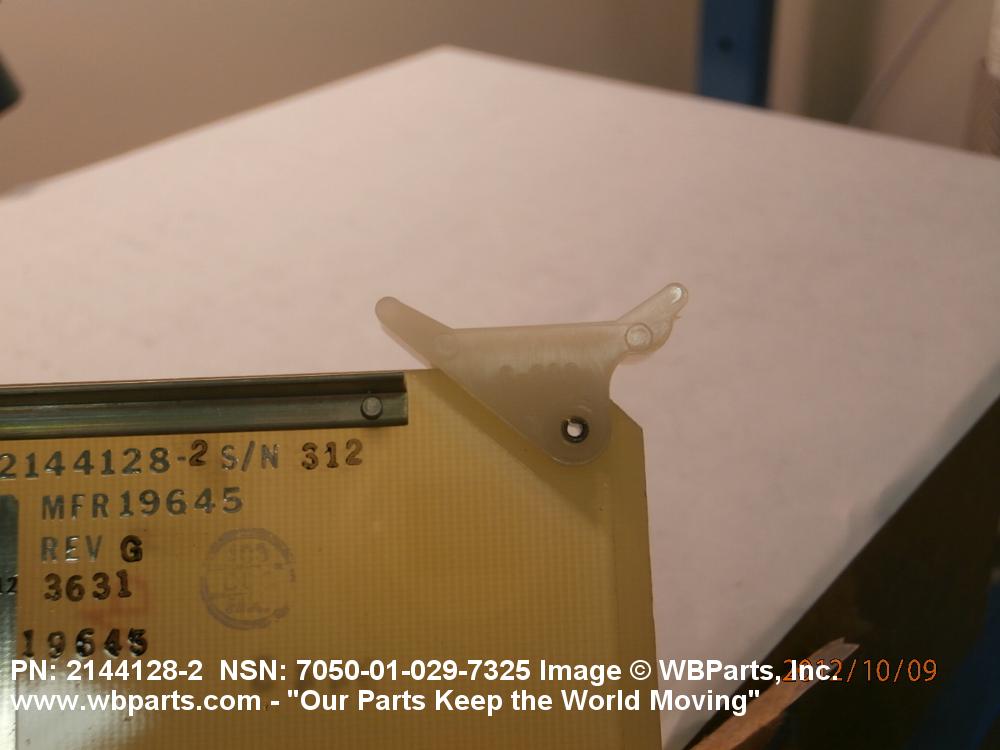

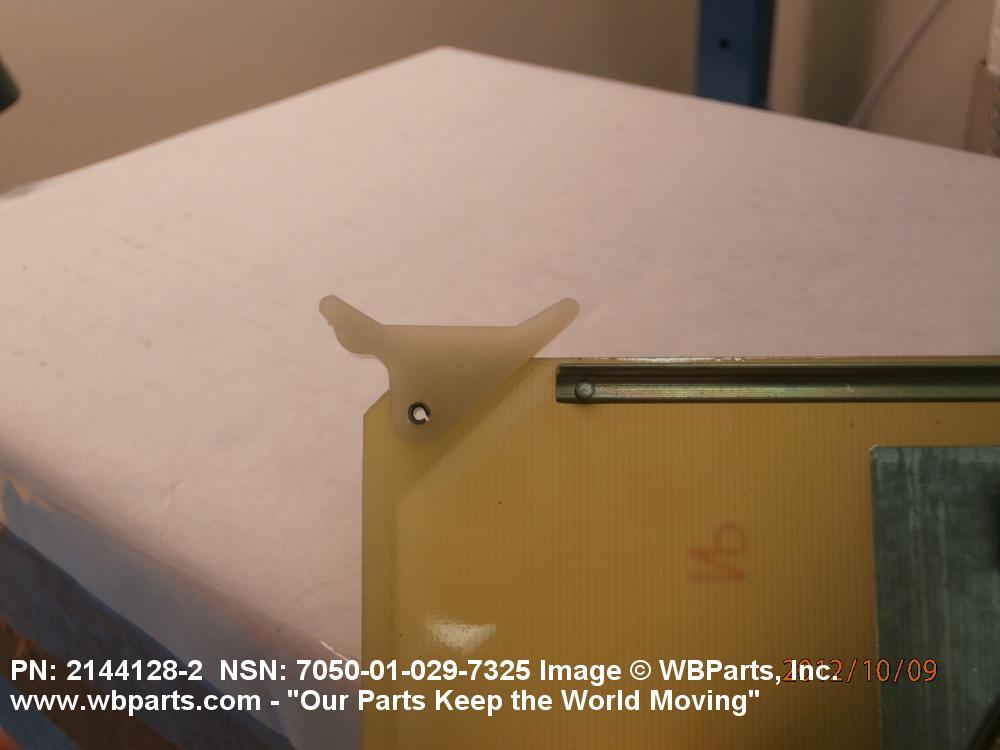

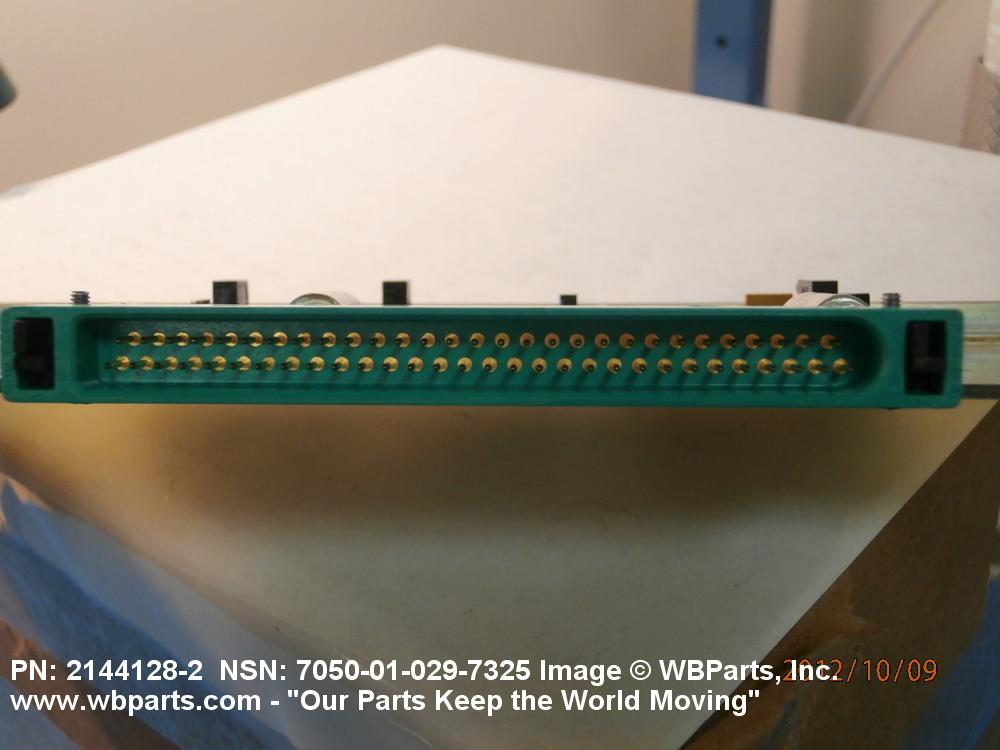

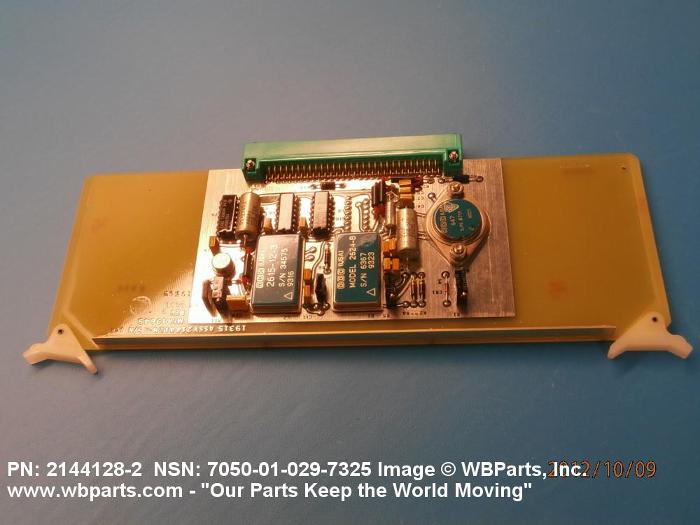

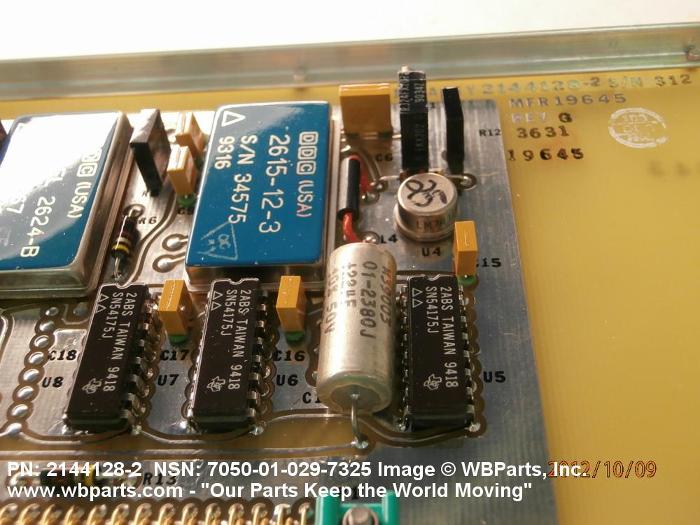

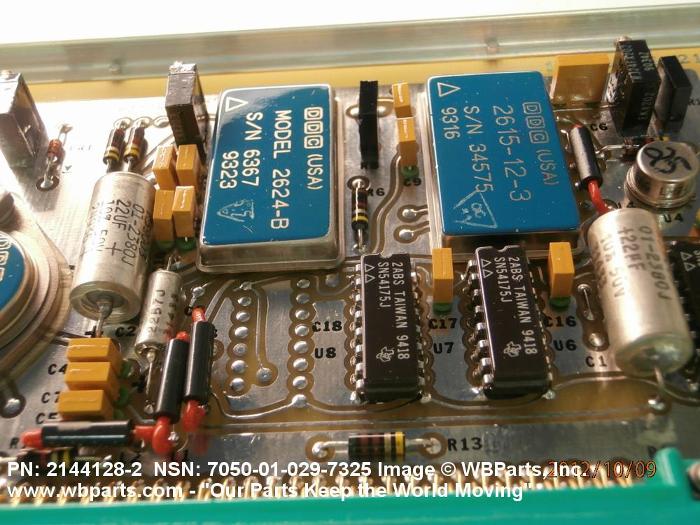

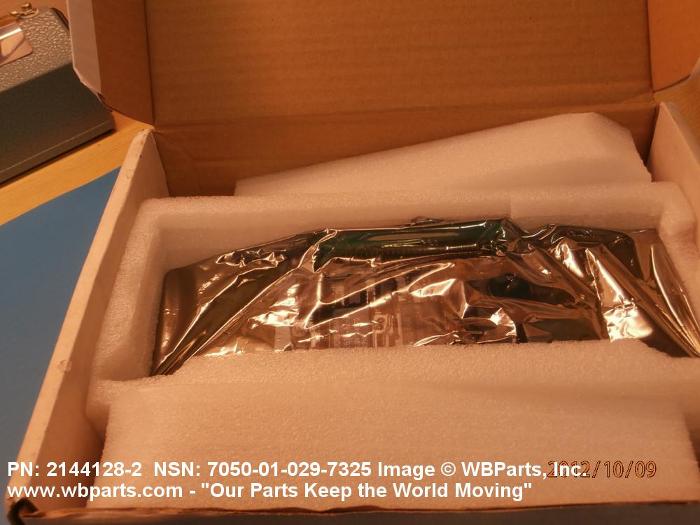

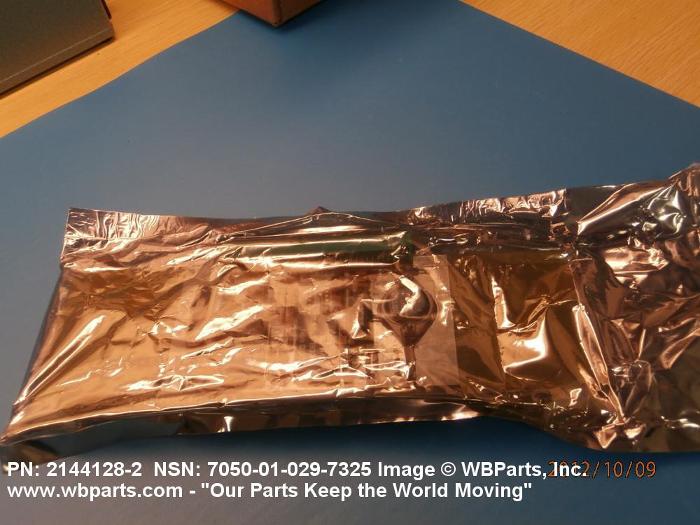

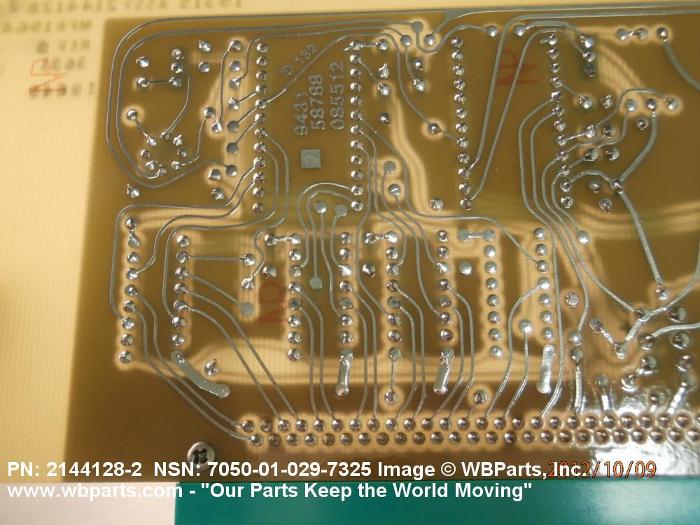

Drawings & Photos | NSN 7050-01-029-7325
Demand History | NSN 7050-01-029-7325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21441282 | 2012-09-268 | 1 | United States |
| 21441282 | 2012-09-255 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7050-01-029-7325
Related Products | NSN 7050-01-029-7325
Technical Data | NSN 7050-01-029-7325
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | CHARACTERISTICS 12 BIT;LINEARITY PORM 1500 LSB;VCC SENSITIVITY PORM .02 PCT RDG V;ANALOG OUTPUT 9 MSB ONLY;OUTPUT IMPEDANCE 200 MILLIOHMS MIN FOR PORM 2V FS;OUTPUT CURRENT PORM 50MA;OPERATING TEMP 0/70 DEG C;OPERATING LIFE 10,000 HRS;DIM. O/A 9.438 IN. L,3.375 IN. W,0.690 IN. H |
| MANUFACTURERS CODE | 19645 |
| DESIGN CONTROL REFERENCE | 3631 |
Restrictions/Controls & Freight Information | NSN 7050-01-029-7325
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 8 | ADP Components. Represents ADP component assemblies that are parts of analog, digital, or hybrid data processing devices. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES,SYSTEMS OR DEVICES, DATA |
| Less than car load rating | M | 85 |
| Less than truck load rating | A | 400.0 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7050-01-029-7325
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
