NSN 7035-01-570-0310 SC280001, SC280-001, 520-680-501
Product Details | ELECTRONIC COMMAN SWITCHING UNIT
7035-01-570-0310 An item specifically designed to be used in conjunction with other electronic components to provide automatic switching facilities for a PROGRAMMER, ELECTRONIC COMMAND SIGNALS. For manually operated switching units, see SWITCH (as modified).20314300037Guided Missile Remote Control Systems58950037Miscellaneous Communication Equipment70350021ADP Support Equipment
Part Alternates: SC280001, SC280-001, 520-680-501, 7035-01-570-0310, 01-570-0310, 7035015700310, 520680501, 015700310
Automatic Data Processing Equipment (Including Firmware), Software, Supplies and Support Equipment | ADP Support Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 70 | 15 DEC 2008 | 01-570-0310 | 16234 ( SWITCHING UNIT, ELECTRONIC COMMAND SIGNALS PROGRAMMER ) |

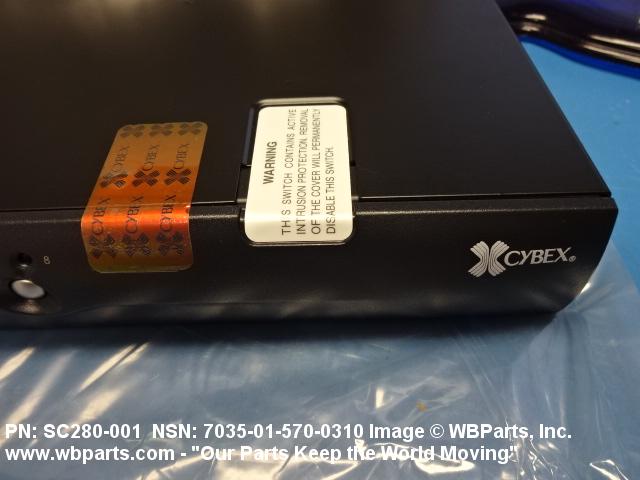

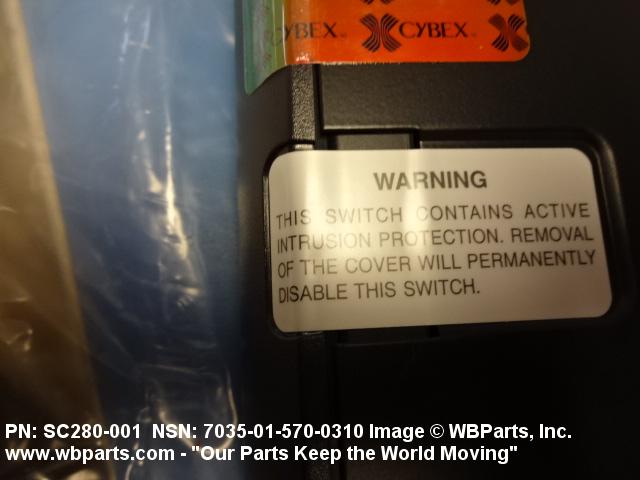

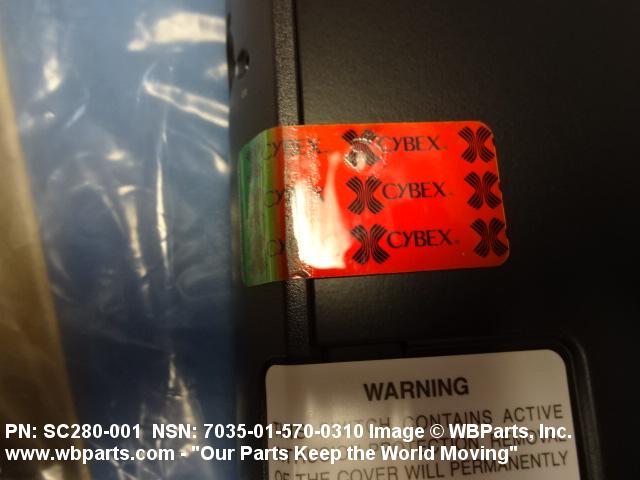

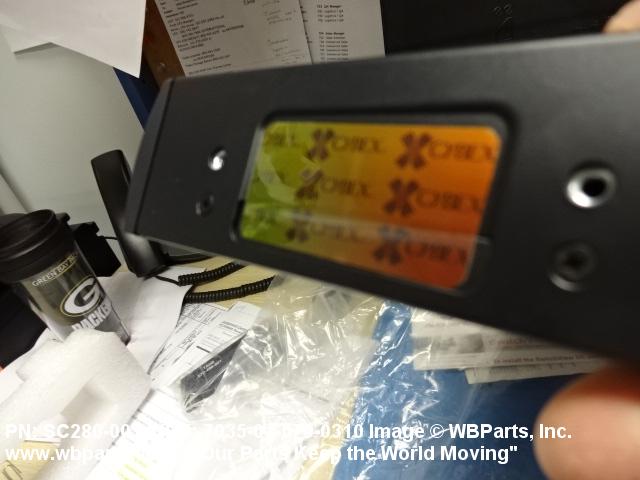

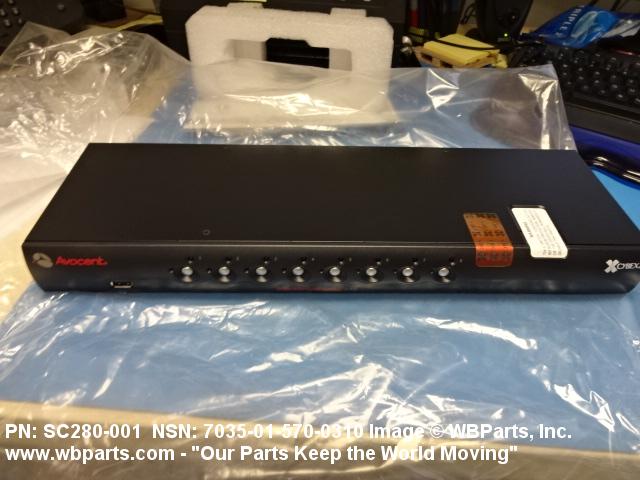

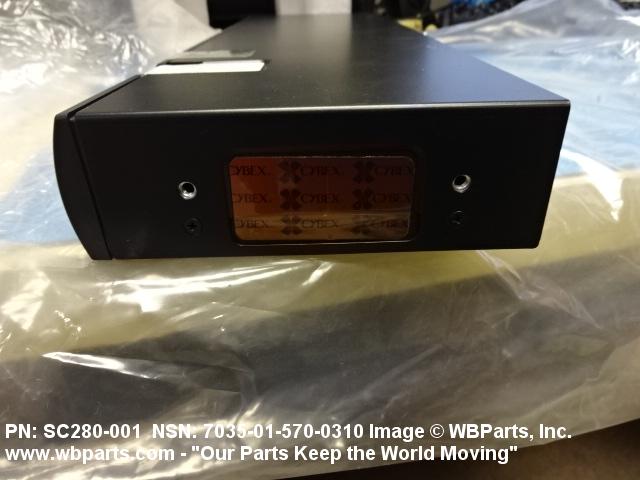

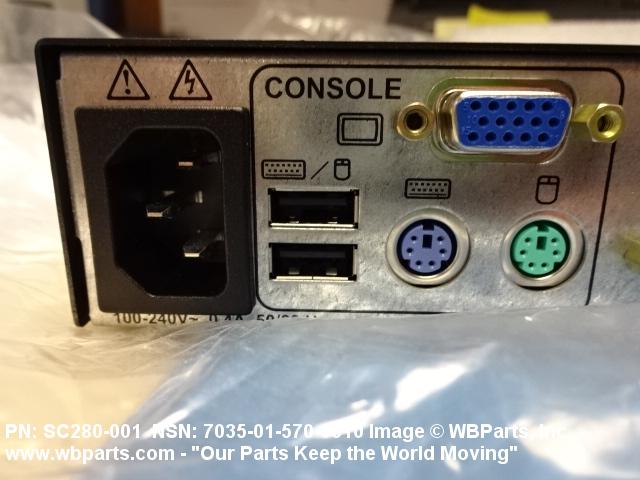

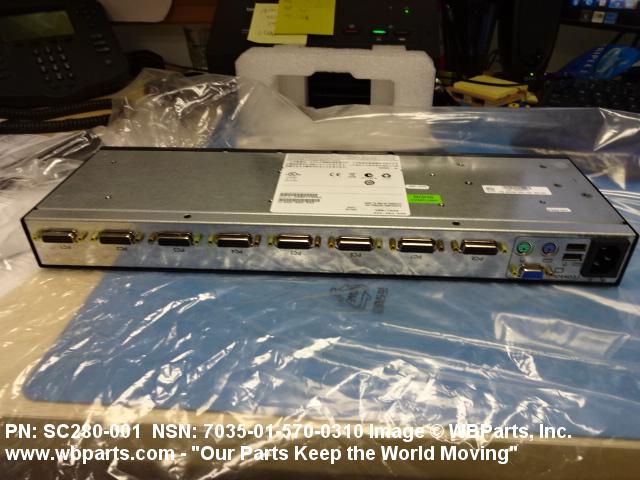

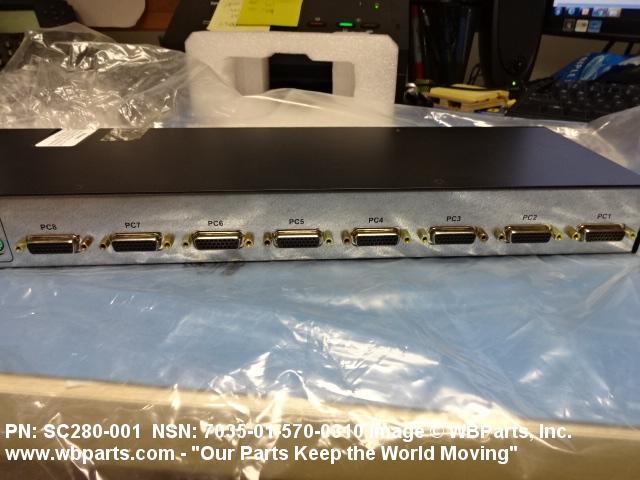

Drawings & Photos | NSN 7035-01-570-0310
Demand History | NSN 7035-01-570-0310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7035-01-570-0310 | 2017-03-75 | 1 | United States |
| 520-680-501 | 2017-01-26 | 2 | |
| 7035-01-570-0310 | 2017-01-21 | 2 | NECO |
| 520-680-501 | 2015-12-336 | 1 | |
| 7035-01-570-0310 | 2015-12-335 | 1 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 7035-01-570-0310
Technical Data | NSN 7035-01-570-0310
| Characteristic | Specifications |
|---|---|
| OVERALL DEPTH | 5.380 INCHES NOMINAL |
| OVERALL WIDTH | 17.000 INCHES NOMINAL |
| SPECIAL FEATURES | WEIGHT:3.75 LBS;OPERATING TEMPERATURE:32-104 DEGREE FAHRENHEIT;STORAGE TEMPERATURE:4-122 DEGREE FAHRENHEIT |
| OVERALL HEIGHT | 1.720 INCHES NOMINAL |
| CURRENT TYPE | AC |
| FREQUENCY RATING | 50.0 HERTZ MINIMUM AND 60.0 HERTZ MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | KVM SWITCH |
| VOLTAGE IN VOLTS | 240.0 |
Restrictions/Controls & Freight Information | NSN 7035-01-570-0310
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
