NSN 7035-01-532-2184 TDU310, TDU-310, 01-532-2184
Product Details | MULTI CHANNEL TIME DISTRIBUTION UNIT
7035-01-532-2184
Part Alternates: TDU310, TDU-310, 7035-01-532-2184, 01-532-2184, 7035015322184, 015322184
Automatic Data Processing Equipment (Including Firmware), Software, Supplies and Support Equipment | ADP Support Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 70 | 02 AUG 2005 | 01-532-2184 | 77777 ( ) |

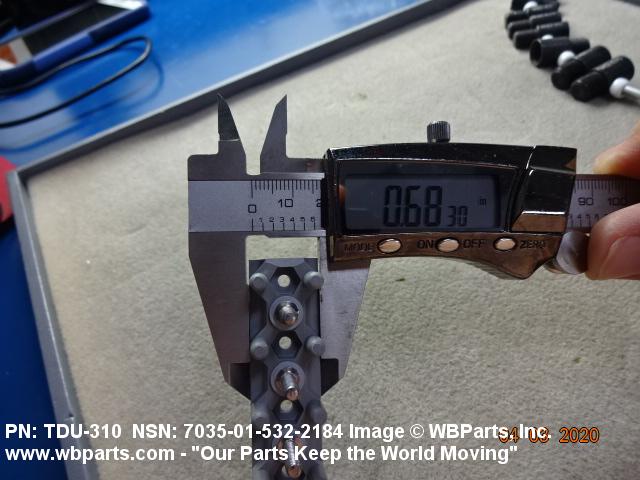

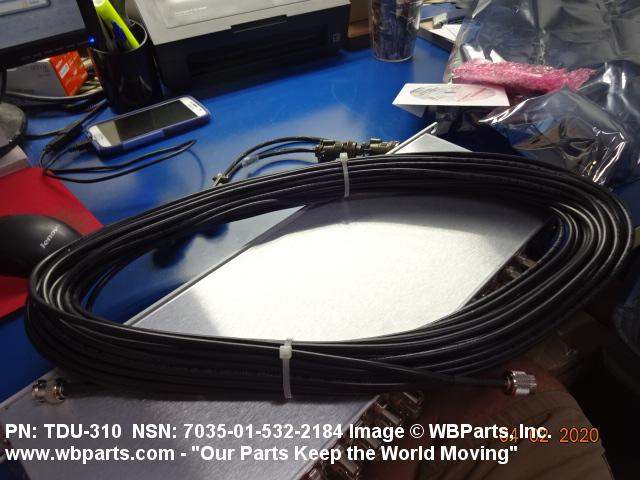

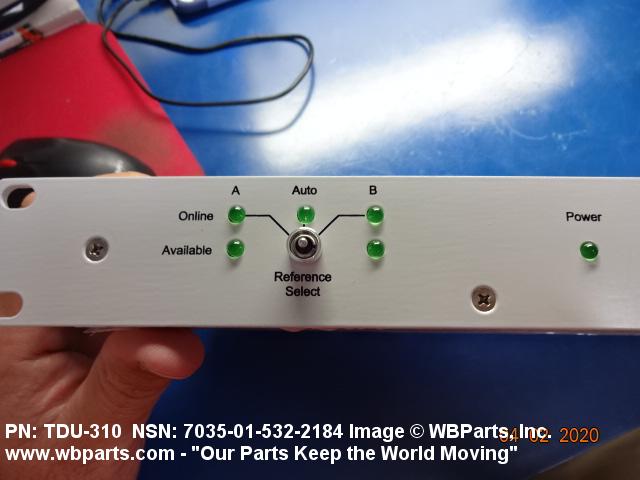

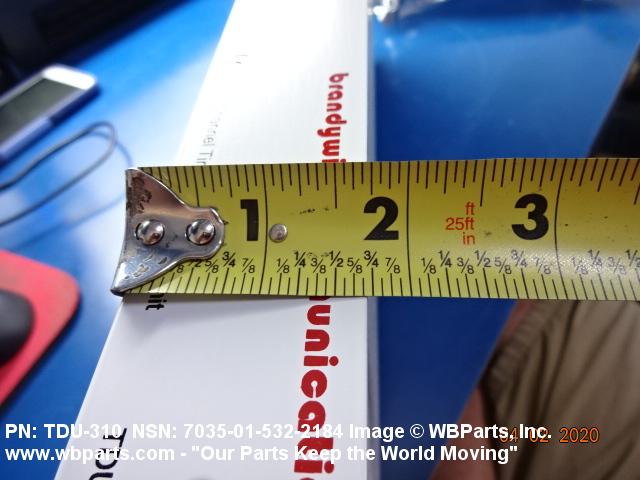

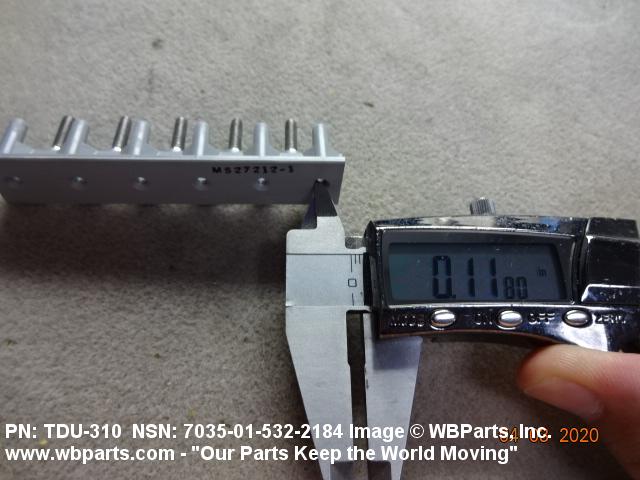

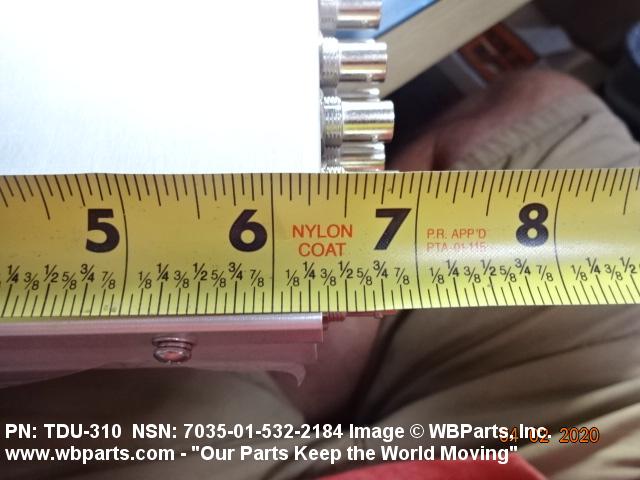

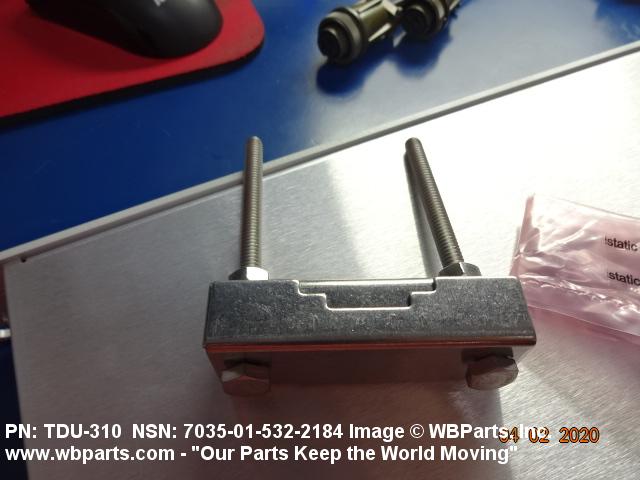

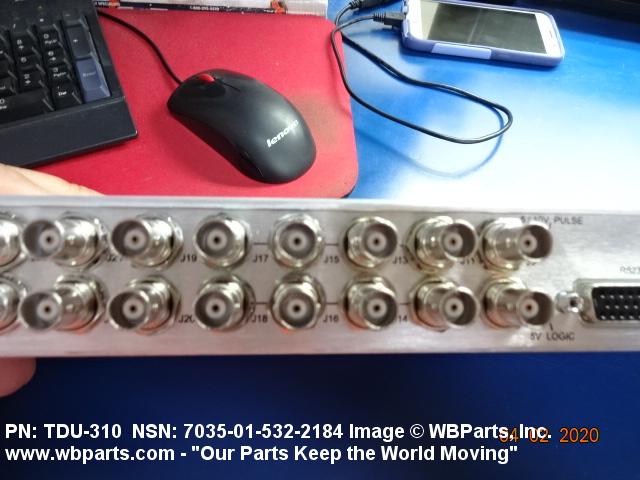

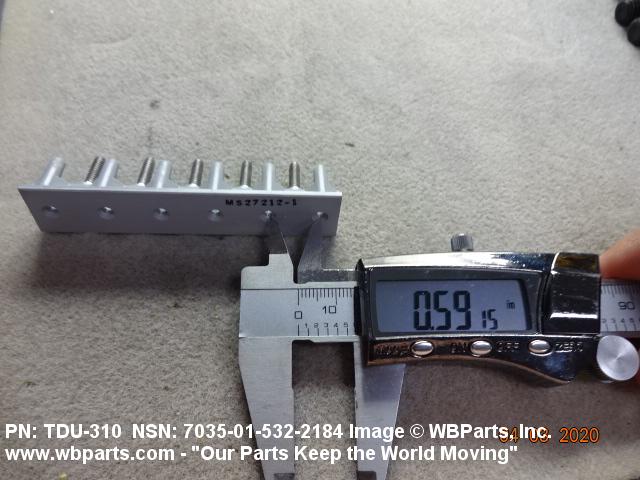

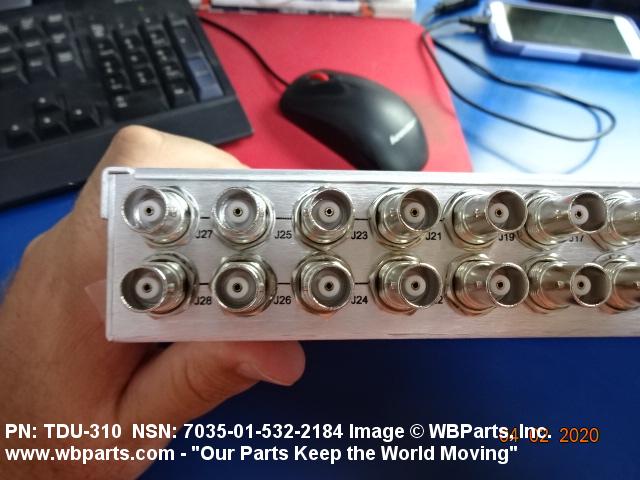

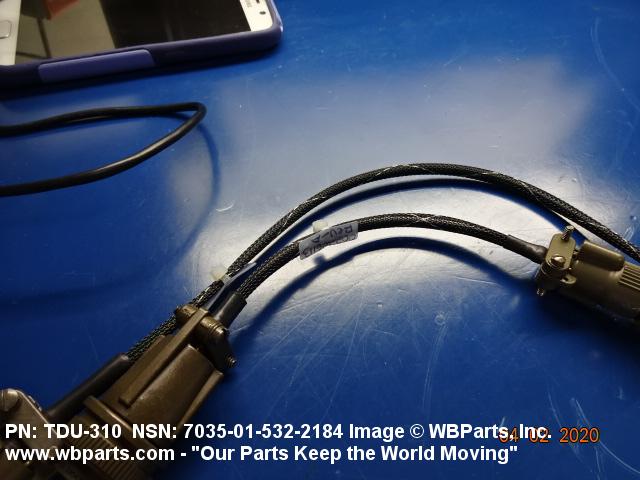

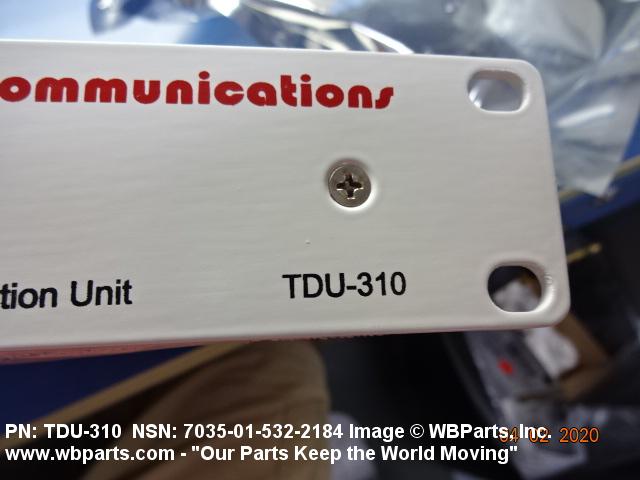

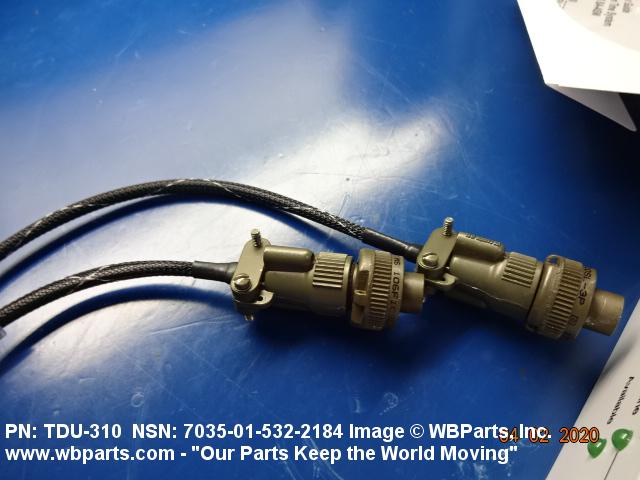

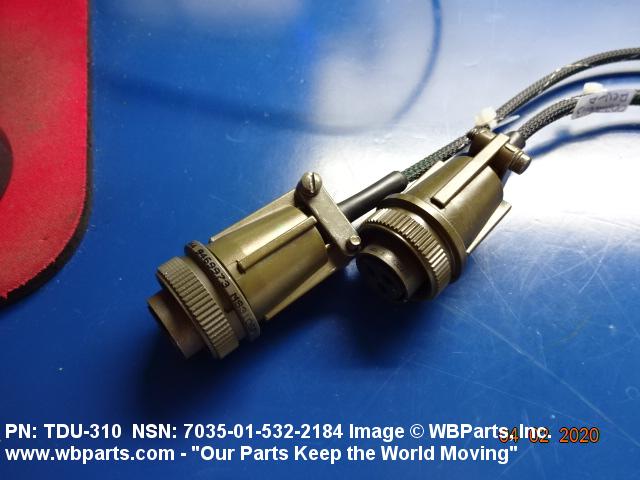

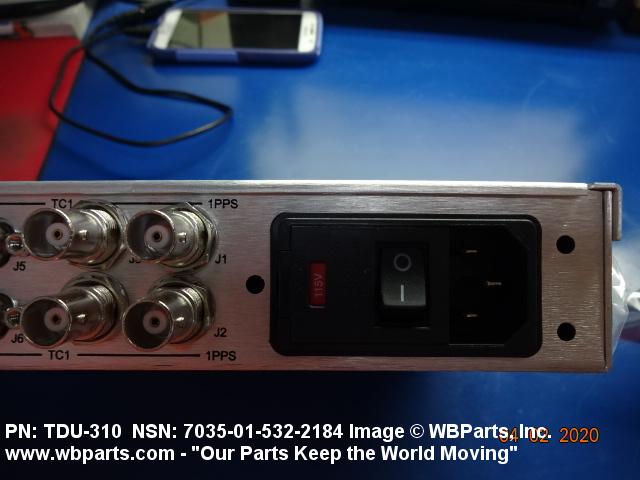

Drawings & Photos | NSN 7035-01-532-2184
Demand History | NSN 7035-01-532-2184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TDU-310 | 2021-05-136 | 1 | DIBBS |
| 7035-01-532-2184 | 2020-01-02 | 1 | United States |
| 7035-01-532-2184 | 2016-12-346 | 1 | DIBBS |
| 7035-01-532-2184 | 2015-09-273 | 2 | DIBBS |
| 7035-01-532-2184 | 2015-06-162 | 1 | DIBBS |
| 7035-01-532-2184 | 2015-06-160 | 1 | DIBBS |
| 7035-01-532-2184 | 2013-07-205 | 1 | DIBBS |
| 7035-01-532-2184 | 2013-07-204 | 1 | DIBBS |
| 7035-01-532-2184 | 2013-04-112 | 2 | DIBBS |
| 7035-01-532-2184 | 2013-03-86 | 2 | DIBBS |
| 7035-01-532-2184 | 2013-01-07 | 2 | DIBBS |
| 7035-01-532-2184 | 2012-12-339 | 2 | DIBBS |
| 7035-01-532-2184 | 2012-10-292 | 1 | DIBBS |
| 7035-01-532-2184 | 2012-07-198 | 6 | DIBBS |
| 7035-01-532-2184 | 2012-07-185 | 3 | DIBBS |
| 7035-01-532-2184 | 2012-05-150 | 2 | DIBBS |
| 7035-01-532-2184 | 2011-12-339 | 1 | DIBBS |
| 7035-01-532-2184 | 2011-09-265 | 1 | DIBBS |
| 7035-01-532-2184 | 2011-04-102 | 2 | DIBBS |
| 7035-01-532-2184 | 2010-11-322 | 5 | DIBBS |
| 7035-01-532-2184 | 2010-11-307 | 5 | DIBBS |
| 7035-01-532-2184 | 2010-11-306 | 2 | DIBBS |
Cross Reference | NSN 7035-01-532-2184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TDU-310 | 03NF8 | BRANDYWINE COMMUNICATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 7035-01-532-2184
Related Products | NSN 7035-01-532-2184
Technical Data | NSN 7035-01-532-2184
| Characteristic | Specifications |
|---|---|

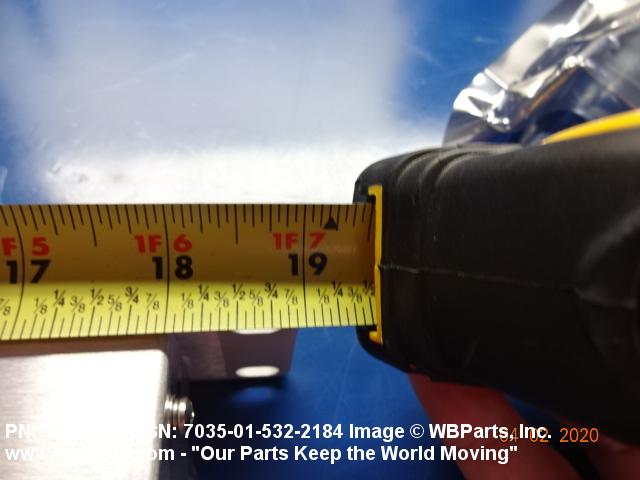

| OVERALL LENGTH | 19.000 INCHES NOMINAL |
| OVERALL WIDTH | 6.150 INCHES NOMINAL |
| OVERALL HEIGHT | 1.720 INCHES NOMINAL |

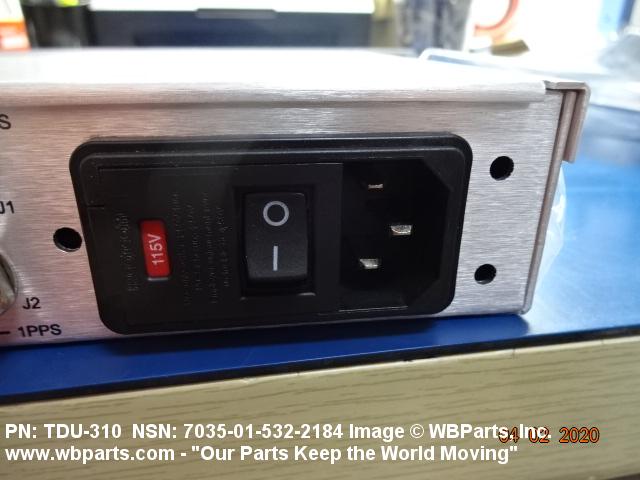

| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC AND 230.0 AC |

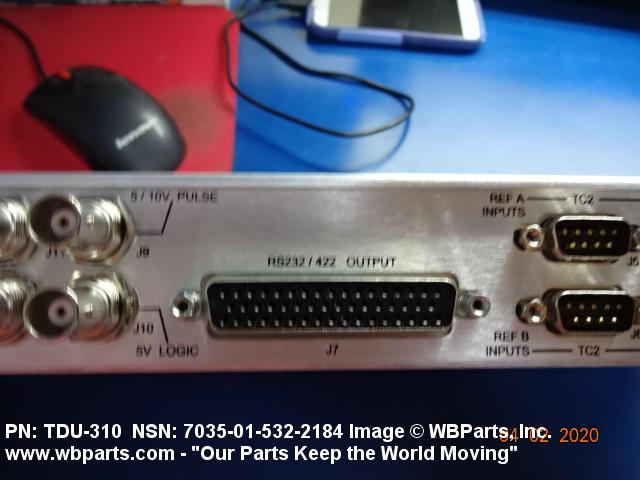

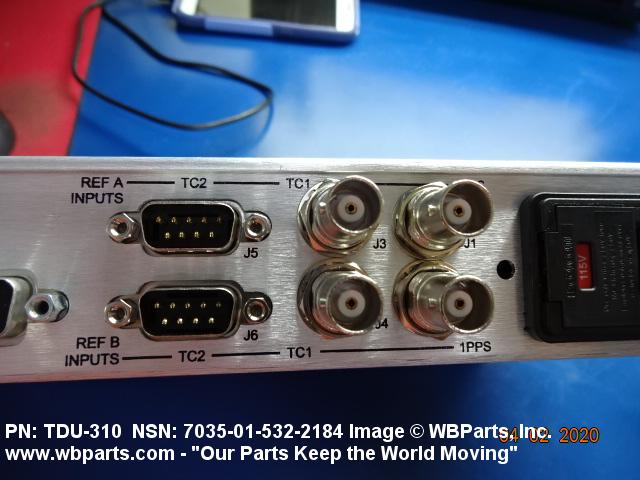

| SPECIAL FEATURES | WEIGHT 10 LBS.,CONNECTOR TYPE J5 EQUALS DB-9 FEMALE, J6 EQUALS DB-9 FEMALE, J7 EQUALS DB-50 FEMALE |
| III END ITEM IDENTIFICATION | OL-653(V)6/SSN-6(V), REAL TIME SUBSYSTEM |
| III FUNCTIONAL DESCRIPTION | ACCEPTS VARIOUS INPUTS FROM EXT. TIMING UNITS, CHOOSES BETWEEN THESE INPUT SOURCES, AND BUFFERS THE OUTPUTS OF THE SELECTED SOURCE TO THE USER. THE SELECTION IS 2X1 SWITCH FOR ALL INPUTS. THE INPUT CHOSEN IS USER PROGRAMMED TO BE EITHER SELECTABLE OR AUTOMATIC. |
Restrictions/Controls & Freight Information | NSN 7035-01-532-2184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 7035-01-532-2184
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
