NSN 6730-00-251-8663 400M, 00-251-8663, 002518663
Product Details | PHOTOGRAPHIC PROJECTION VIEWER-PRINTER
6730-00-251-8663 An item designed for viewing microfilm which magnifies and presents on an integrally mounted screen a right reading image. It is equipped with a printing and developing mechanism which delivers a permanent enlarged copy of the microfilm upon activation of the reproducing mechanism.
Part Alternates: 400M, 6730-00-251-8663, 00-251-8663, 6730002518663, 002518663
Photographic Equipment | Photographic Projection Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | 14 JUL 1969 | 00-251-8663 | 21930 ( VIEWER-PRINTER, PROJECTION, PHOTOGRAPHIC ) |
Drawings & Photos | NSN 6730-00-251-8663
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6730-00-251-8663
Related Products | NSN 6730-00-251-8663
Technical Data | NSN 6730-00-251-8663
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | TABLE |
| FILM ACCOMMODATION TYPE | MICROFILM AND ROLL |
| ACCOMMODATED FILM WIDTH | 16.0 INCHES MINIMUM AND 35.0 INCHES MAXIMUM |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| OVERALL LENGTH | 21.500 INCHES NOMINAL |
| OVERALL HEIGHT | 26.500 INCHES NOMINAL |
| OVERALL WIDTH | 17.000 INCHES NOMINAL |
| LAMP TYPE | QUARTZ IODIDE |
| LAMP QUANTITY | 1 |

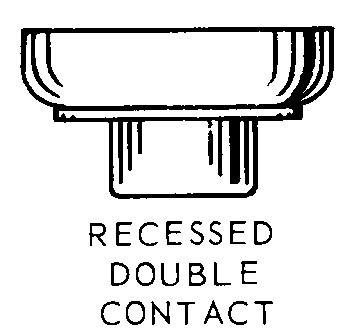

| LAMP BASE STYLE | A57 RECESSED DOUBLE CONTACT |

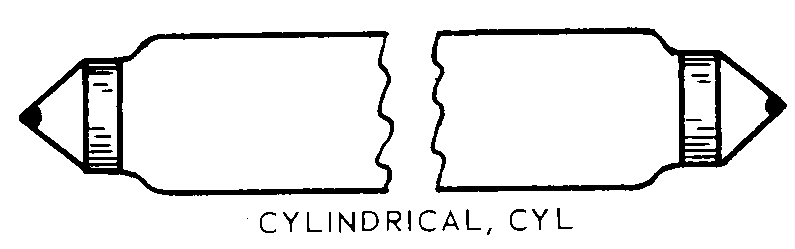

| LAMP BULB SHAPE STYLE | B23 CYLINDRICAL, CYL |
| LAMP BULB SIZE DESIGNATOR | CY -4 |
| LAMP | INCLUDED |
| LAMP WATTAGE RATING IN WATTS | 200.0 |
| DESIGN CURRENT RATING IN AMPS | 10.000 NOMINAL |
| CIRCUIT VOLTAGE RATING IN VOLTS | 20.0 NOMINAL |
| PRINT SIZE | 8 IN. BY 10 3/4 IN. |
| PRINTING PROCESS FOR WHICH DESIGNED | PHOTOGRAPHIC W/SINGLE SOLUTION DEVELOPER |
| MANUFACTURERS CODE | 7U948 |
| DESIGN CONTROL REFERENCE | 400M |
Restrictions/Controls & Freight Information | NSN 6730-00-251-8663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 039740 | PHOTOGRAPHERS MATERIALS NOI |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 756 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | P | Photographic supplies and equipment, including training films. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6730-00-251-8663
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TX | Armed Forces Radio |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
