Product Details | STILL PICTURE CAMERA BODY

6720-01-101-9910 A rigidly constructed camera component designed to position and provide a mounting means for a photographic lens and for locating film or plate in the focal plane of the camera and is used for positioning and holding controls, auxiliary assemblies, and the like. It may or may not include an exposure control system. It may or may not include a magazine. For items which have a lens(es) or lens cone, see CAMERA, STILL PICTURE.

Part Alternates: 1264B125, 6720-01-101-9910, 01-101-9910, 6720011019910, 011019910

Photographic Equipment | Cameras, Still Picture

Supply Group (FSG) NSN Assign. NIIN
67 11 OCT 1980 01-101-9910

Drawings & Photos | NSN 6720-01-101-9910


Cross Reference | NSN 6720-01-101-9910

Part Number Cage Code Manufacturer
1264B125 72314 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6720-01-101-9910

Technical Data | NSN 6720-01-101-9910

Characteristic Specifications
CAMERA TYPE AIRCRAFT/PANORAMIC RECONNAISSANCE

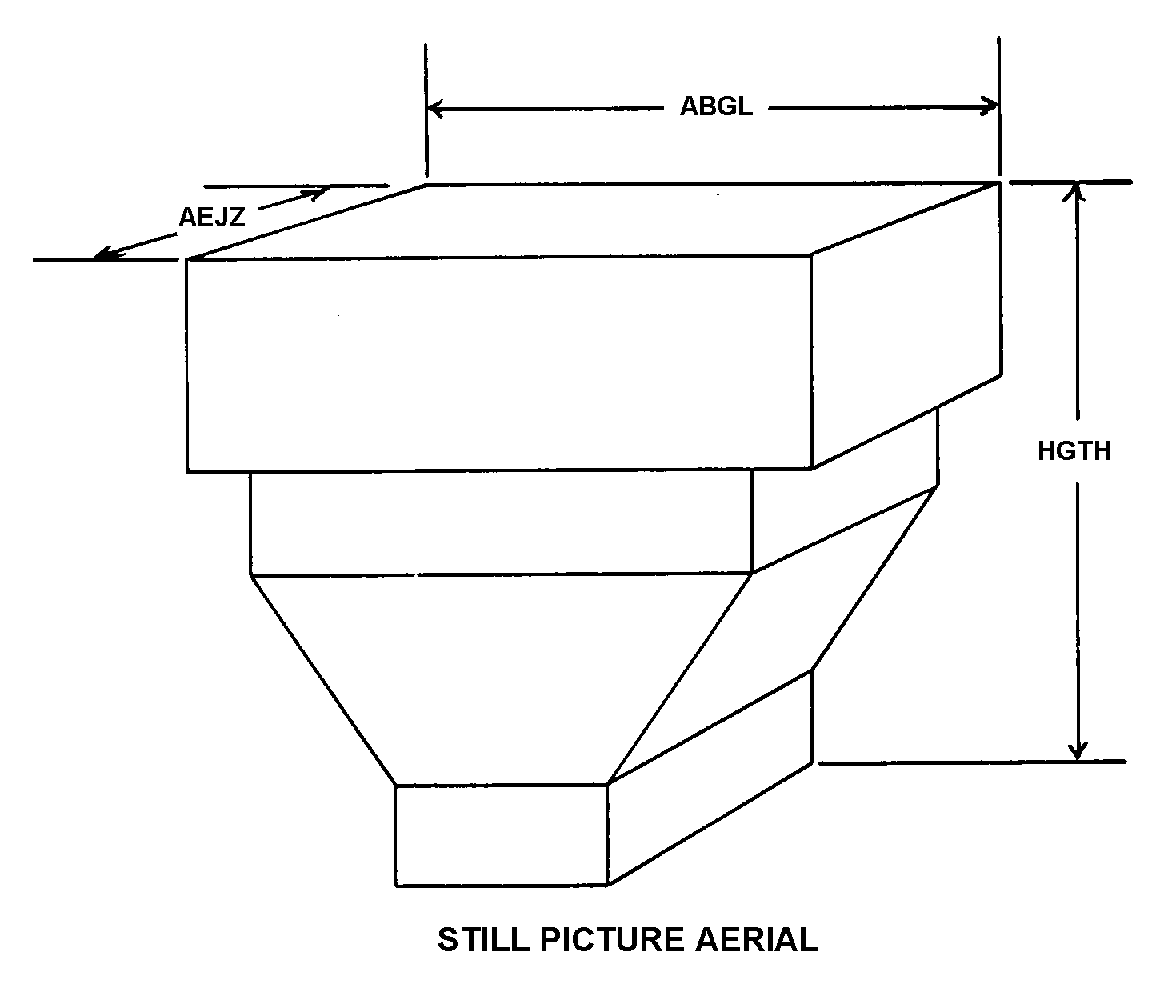

STYLE DESIGNATOR 3 STILL PICTURE AERIAL
WIDTH 17.250 INCHES NOMINAL
DEPTH 24.000 INCHES NOMINAL
HEIGHT 14.000 INCHES NOMINAL
SHUTTER TYPE ADJUSTABLE FOCAL PLANE AND ADJUSTABLE VARIABLE SPLIT
SHUTTER EXPOSURE SPEED IN SECONDS 0.0179 MINIMUM ADJUSTABLE AND 0.0004 MAXIMUM ADJUSTABLE
CAMERA MOUNTING TYPE AIRCRAFT
FILM ACCOMMODATION TYPE CASSETTE
FILM SIZE FOR WHICH DESIGNED 140
FILM WIDTH 5.00 INCHES NOMINAL
FILM LENGTH 2000.000 FEET NOMINAL
NEGATIVE WIDTH 4.500 INCHES NOMINAL
NEGATIVE LENGTH 28.300 INCHES NOMINAL
EXPOSURE QUANTITY ACCOMMODATED 805
FOCUS METHOD FIXED
LENS MOUNTING METHOD BARREL
FILM ADVANCE METHOD ELECTRIC MOTOR
DRIVE TYPE INTEGRAL
DRIVE MOTOR VOLTAGE RATING 115.0 ALTERNATING CURRENT AND 28.0 DIRECT CURRENT
DRIVE MOTOR CURRENT FREQUENCY IN HERTZ 400.0
DRIVE MOTOR PHASE THREE
FURNISHED ITEMS PROTECTIVE COVER
III UNPACKAGED UNIT WEIGHT 120.0 POUNDS
MANUFACTURERS CODE 72314
DESIGN CONTROL REFERENCE 1264B125
