NSN 6720-00-603-9353 74387051, 7438-705-1, 00-603-9353

Product Details | CAMERA SUBASSEMBLY

6720-00-603-9353 Two or more different types of items, having a common mounting or mounted on each other, which together form a portion of a camera, but which in itself is not a complete functioning item and cannot be assigned a more definite name.20267100023Cameras, Motion Picture67200022Cameras, Still Picture

Part Alternates: 74387051, 7438-705-1, 6720-00-603-9353, 00-603-9353, 6720006039353, 006039353

Photographic Equipment | Cameras, Still Picture

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
67	24 JAN 1968	00-603-9353	39225 ( CAMERA SUBASSEMBLY )

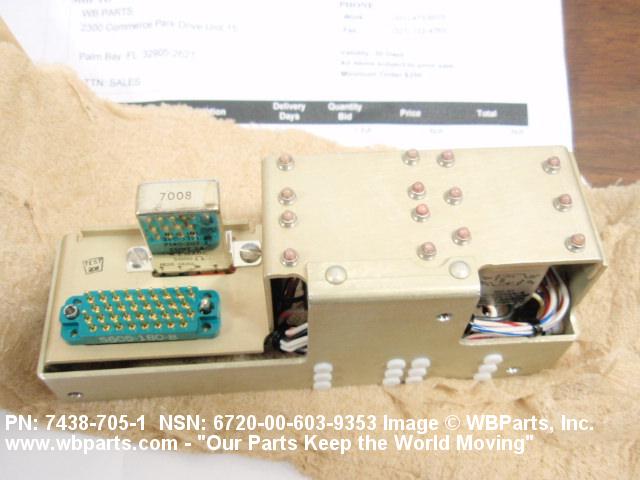

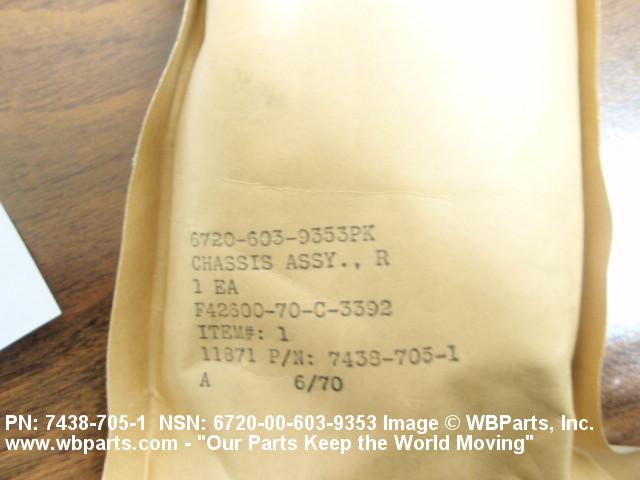

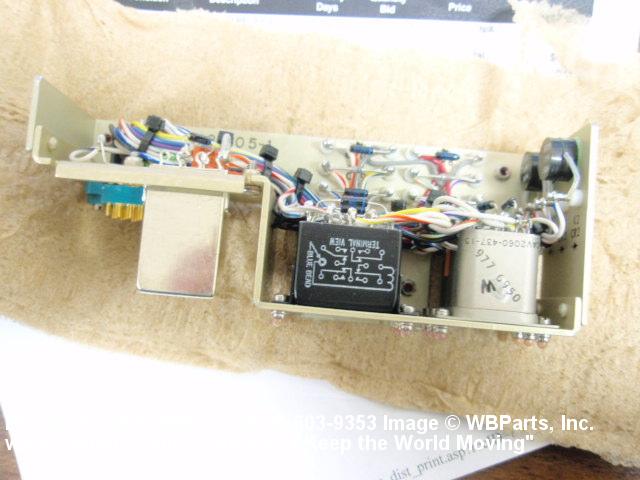

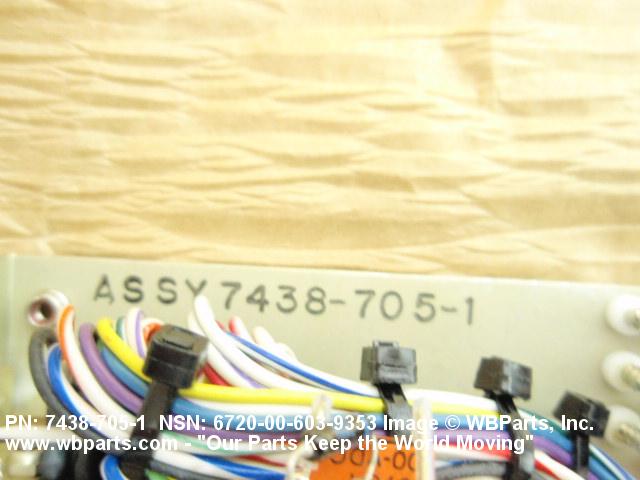

Drawings & Photos | NSN 6720-00-603-9353

Part Number	Request Date	QTY	Origin	SBA
6720-00-603-9353	2010-11-327	1	Korea
6720-00-603-9353	2010-08-237	1	Korea

Cross Reference | NSN 6720-00-603-9353

Part Number	Cage Code	Manufacturer
7438-705-1	11871	RECON/OPTICAL, INC.
7438-705-1	80294	BOURNS INSTRUMENTS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6720-00-603-9353

Compare

Related Products | NSN 6720-00-603-9353

6720-00-604-8408, 6720-00-605-2434, 6720-00-605-2436, 6720-00-605-3768, 6720-00-605-8513

Technical Data | NSN 6720-00-603-9353

Characteristic	Specifications
SPECIAL FEATURES	ORIGINAL NAME ON DRAWING CHASSIS AND RELAY ASSEMBLY, SHUTTER
III END ITEM IDENTIFICATION	CAMERA SET, STILL PICTURE TYPE KS-87B
MANUFACTURERS CODE	11871
DESIGN CONTROL REFERENCE	7438-705-1

Restrictions/Controls & Freight Information | NSN 6720-00-603-9353

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	039740	PHOTOGRAPHERS MATERIALS NOI
Less than car load rating	J	100.2
Less than truck load rating	J	100.2
Water commodity Code	756	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	P	Photographic supplies and equipment, including training films.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	Q	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6720-00-603-9353

Air Force
Navy

Category	Code	Description
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	FGZ	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	7R	Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia
Issue Repair, or Requisition	AR	Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved.
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	NRP	NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	H	Depot Level Reparable
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
