NSN 6695-01-133-6033 144A9257P5, 16530, 01-133-6033
Product Details | MOTIONAL PICKUP TRANSDUCER
6695-01-133-6033 An item that translates linear displacements of a gas, liquid, or solids into comparable electrical signals for application to equipment, such as telemetric data transmitting set, indicator, recorder, dual air data sensors, and the like. Item can measure pneumatic pressures from pitot impact, pitot-static, and static pressure ports with sensors and convert the pressures to electrical signals. Does not include mechanical linkage, amplifier, or indicator. Excludes sensitive switches and other items that operate on an on-off principal, synchros, and potentiometric type computer devices. See also TRANSMITTER (as modified) and TRANSDUCER, SUPERSONIC TEST.
Part Alternates: 144A9257P5, 16530, 6695-01-133-6033, 01-133-6033, 6695011336033, 011336033
Instruments and Laboratory Equipment | Combination and Miscellaneous Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 JUN 1982 | 01-133-6033 | 61282 ( TRANSDUCER, MOTIONAL PICKUP ) |

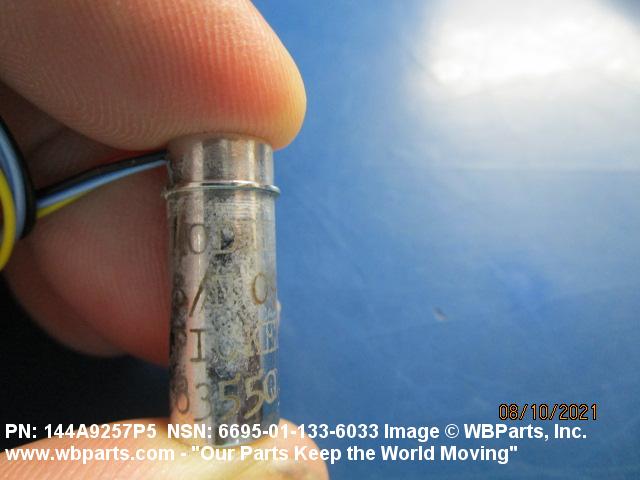

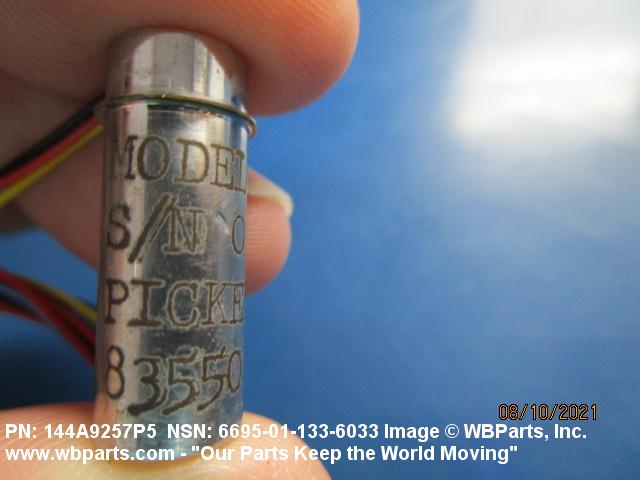

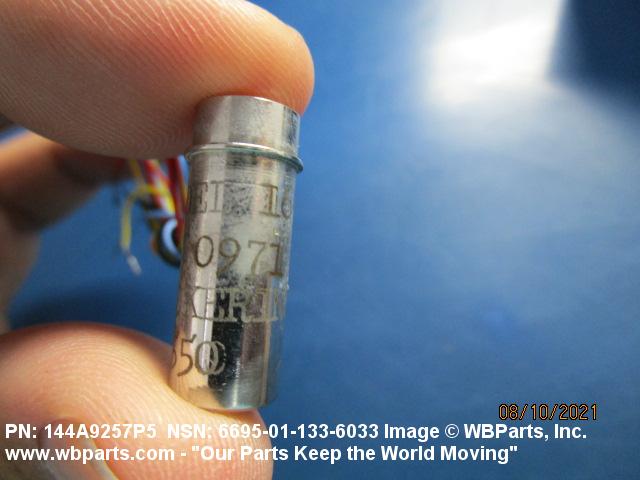

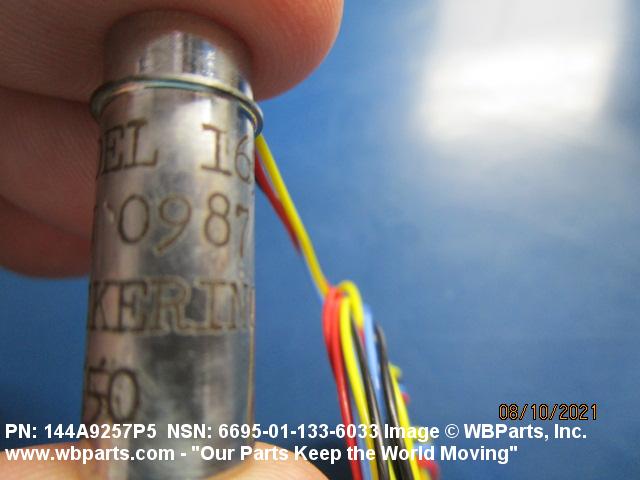

Drawings & Photos | NSN 6695-01-133-6033
Demand History | NSN 6695-01-133-6033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 144A9257P5 | 2023-11-327 | 1 | DIBBS |
| 16530 | 2023-11-327 | 1 | DIBBS |
| 6695-01-133-6033 | 2023-09-261 | 1 | United States |
| 144A9257P5 | 2023-08-240 | 1 | DIBBS |
| 16530 | 2023-08-240 | 1 | DIBBS |
| 144A9257P5 | 2021-10-293 | 1 | DIBBS |
| 16530 | 2021-10-293 | 1 | DIBBS |
| 144A9257P5 | 2021-10-285 | 1 | DIBBS |
| 16530 | 2021-10-285 | 1 | DIBBS |
| 6695-01-133-6033 | 2021-07-210 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6695-01-133-6033
Technical Data | NSN 6695-01-133-6033
| Characteristic | Specifications |
|---|---|

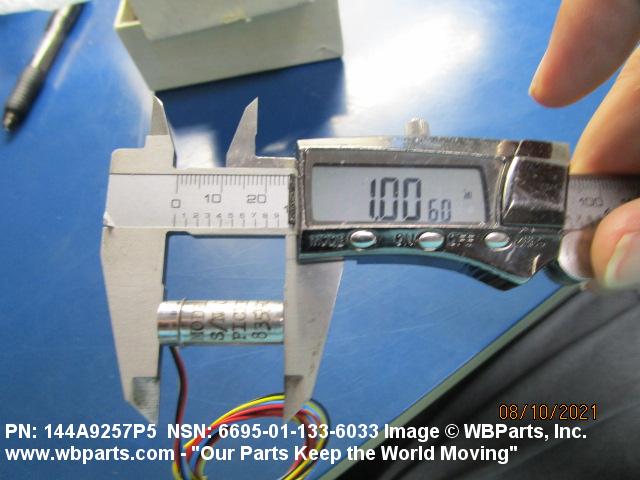

| OVERALL LENGTH | 1.700 INCHES MAXIMUM |

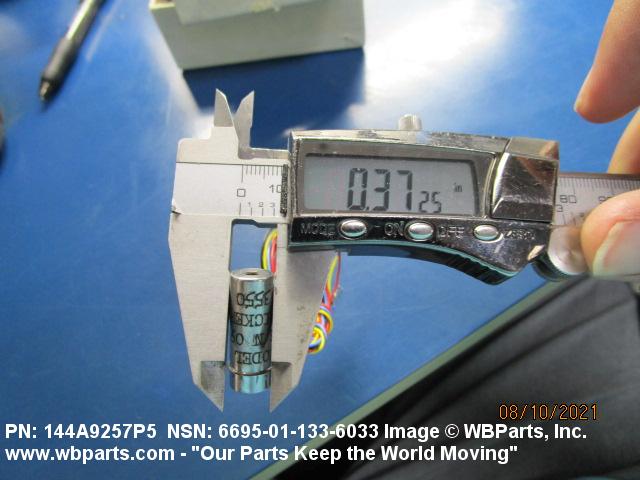

| OVERALL DIAMETER | 0.420 INCHES MAXIMUM |

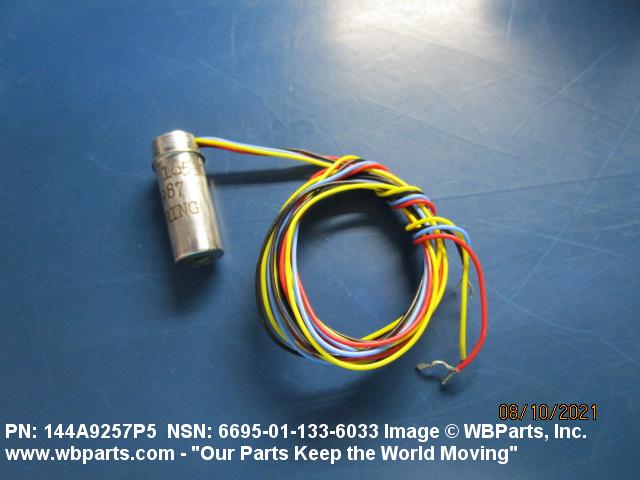

| SPECIAL FEATURES | 0.164-32 IN.UNC 2A THD;BERYLLIUM COPPER PROBE;EXCITATION 8.0 VAC AT 1.833 KHZ;FOUR WIRE LEADS 12.000 IN.LG |
| TEST DATA DOCUMENT | 89954-144A9257 SPECIFICATION |
| SPECIAL TEST FEATURES | TESTED FOR TEMPERATURE AND ALTITUDE |
| CRITICALITY CODE JUSTIFICATION | SPCL |
| III END ITEM IDENTIFICATION | FLIGHT SET |
| III FSC APPLICATION DATA | TEST SET,ELECTRONIC EQUIPMENT |
| MANUFACTURERS CODE | 89954 |
| DESIGN CONTROL REFERENCE | 144A9257P5 |
Restrictions/Controls & Freight Information | NSN 6695-01-133-6033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6695-01-133-6033
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
