NSN 6685-01-591-5202 GALK0464, 2340GXB160, 01-591-5202
Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-591-5202 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: GALK0464, 2340GXB160, 6685-01-591-5202, 01-591-5202, 6685015915202, 015915202
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 28 JAN 2011 | 01-591-5202 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

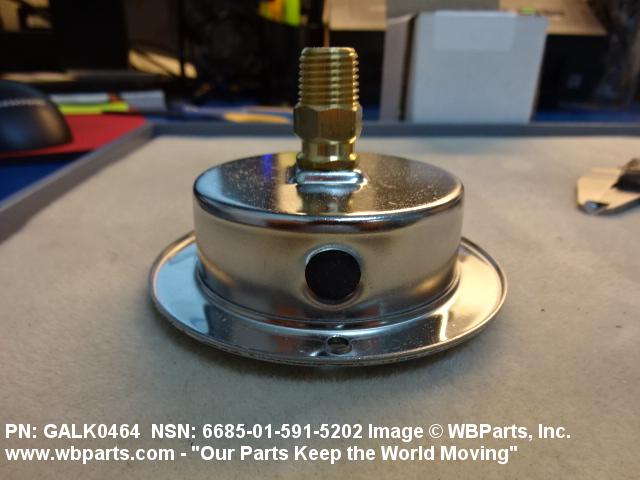

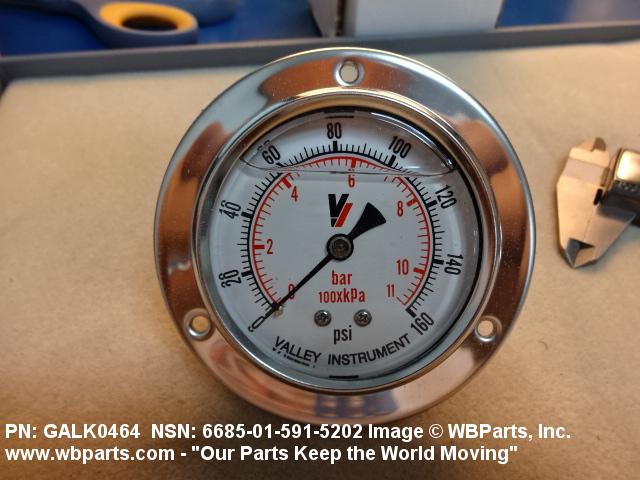

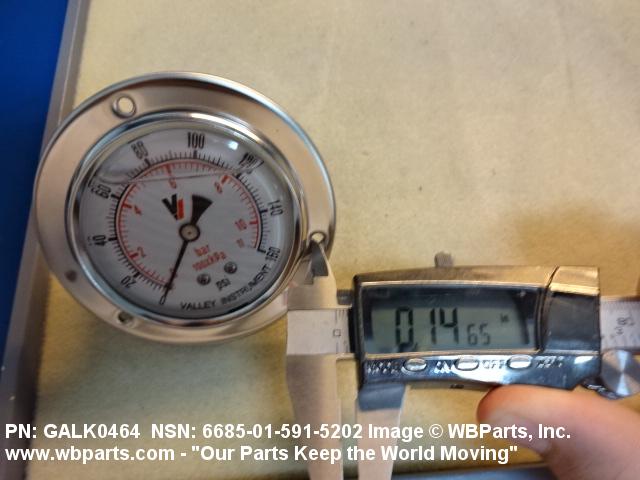

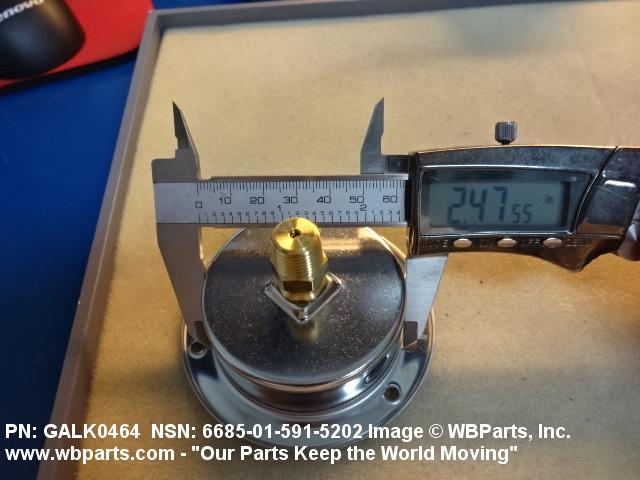

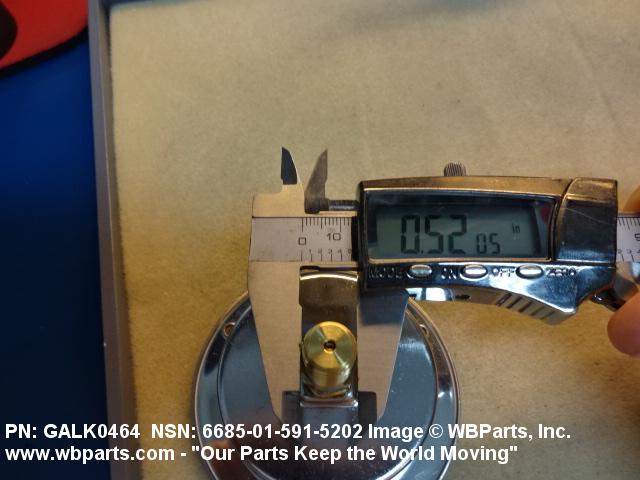

Drawings & Photos | NSN 6685-01-591-5202
Demand History | NSN 6685-01-591-5202
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GALK0464 | 2021-12-348 | 1 | United States |
| GALK0464 | 2018-11-309 | 1 | UK |
| GALK0464 | 2017-09-268 | 1 | United States |
| 6685-01-591-5202 | 2013-06-170 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-591-5202
Technical Data | NSN 6685-01-591-5202
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | STEEL, CORROSION RESISTING, 304 |
| GRADUATION UNIT | 20.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | 0 - 11 BAR; FLANGE MOUNT; LIQUID FILLED GLYCERIN |
| SCALE TYPE | DIAL |

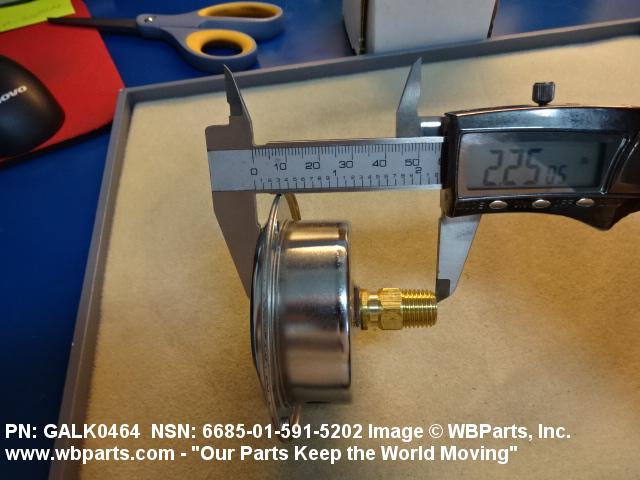

| OVERALL DEPTH | 2.270 INCHES NOMINAL |
| POINTER COLOR | BLACK |
| CONNECTION QUANTITY | 1 |
| SCALE ACCURACY | 1 TO 2 PERCENT |
| END ITEM IDENTIFICATION | SPIR-O-LATOR & PROCESSED WATER SEPARATOR |
| CONNECTION TYPE | EXTERNAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MODEL 40 GAUGE |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SCALE RANGE | +0.0/+160.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 2.0 POUNDS PER SQUARE INCH |
| MOUNTING METHOD | EXTERNAL THREAD |
| SCALE NAME | POUNDS PRESSURE |

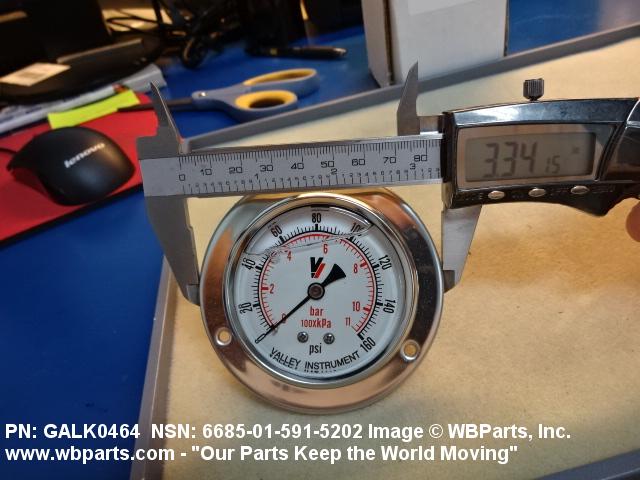

| OVERALL DIAMETER | 2.620 INCHES NOMINAL |
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | COPPER ALLOY |
| CONNECTION SIZE | 1/4 INCH MNPT |
| DIAL SIZE | 2.5 INCHES |
Restrictions/Controls & Freight Information | NSN 6685-01-591-5202
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
