NSN 6685-01-539-7247 3ESBK4BWPZZYZN1, 3ESBNK4BWPZZYZN1, 401-7528561 REV.A ITEM NO.31
Product Details | ELECTRICAL RESISTANCE TEMPERATURE TRANSMITTER
6685-01-539-7247 A device having a temperature sensing element whose electrical resistance varies with a change in temperature. It is designed to transmit information relative to temperature to an INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE. It may be a component part of a THERMOMETER, INDICATING, RESISTANCE; THERMOMETER, RECORDING, RESISTANCE. Excludes THERMOCOUPLE (as modified).
Part Alternates: 3ESBK4BWPZZYZN1, 3ESBNK4BWPZZYZN1, 401-7528561 REV.A ITEM NO.31, 4017528561REVAITEMNO31, 6685-01-539-7247, 01-539-7247, 6685015397247, 015397247
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 MAY 2006 | 01-539-7247 | 20340 ( TRANSMITTER, TEMPERATURE, ELECTRICAL RESISTANCE ) |
Drawings & Photos | NSN 6685-01-539-7247
Demand History | NSN 6685-01-539-7247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3ESBNK4BWPZZYZN1 | 2019-07-198 | 16 | DIBBS |
| 6685-01-539-7247 | 2013-05-121 | 3 | DIBBS |
| 6685-01-539-7247 | 2013-04-92 | 5 | DIBBS |
| 6685-01-539-7247 | 2012-05-146 | 1 | DIBBS |
| 6685-01-539-7247 | 2012-01-13 | 1 | DIBBS |
| 6685-01-539-7247 | 2011-12-362 | 2 | DIBBS |
| 6685-01-539-7247 | 2010-12-351 | 1 | DIBBS |
| 6685-01-539-7247 | 2009-01-26 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-539-7247
Technical Data | NSN 6685-01-539-7247
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | PROTECTIVE TUBE |
| MATERIAL | STEEL COMP 316 PROTECTIVE TUBE |

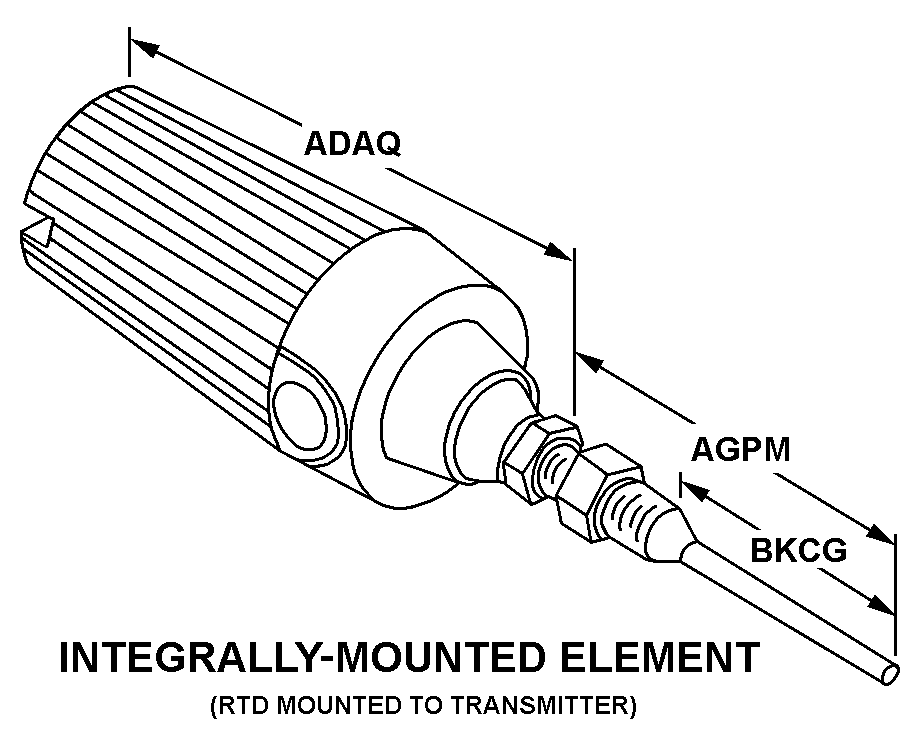

| STYLE DESIGNATOR | F2 INTEGRALLY-MOUNTED ELEMENT |
| BODY LENGTH | 4.000 INCHES NOMINAL |
| SPECIAL FEATURES | MAX TEMP: 200 DEG CELSIUS; CAST IRON HEAD W/ SCREW COVER TERMINAL; 3 WIRE CONFIGURATION; TUBE OUTSIDE DIAMETER: 1/4 INCH |
| III END ITEM IDENTIFICATION | ICAS SYSTEM, CVN-72 |
Restrictions/Controls & Freight Information | NSN 6685-01-539-7247
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-539-7247
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
