NSN 6685-01-518-4293 K35220, 01-518-4293, 015184293
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-518-4293 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: K35220, 6685-01-518-4293, 01-518-4293, 6685015184293, 015184293
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 MAR 2004 | 01-518-4293 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

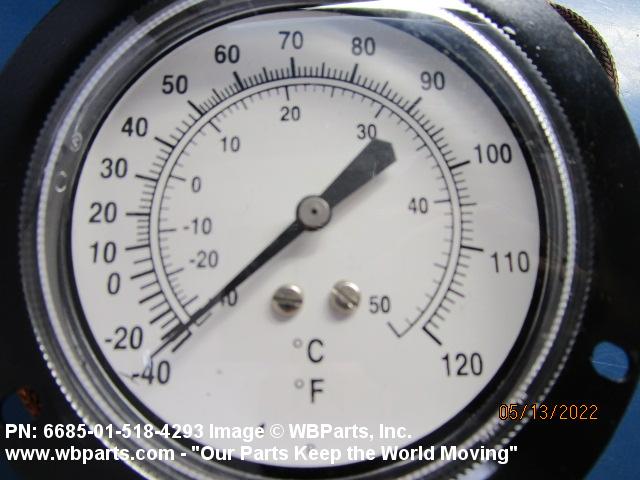

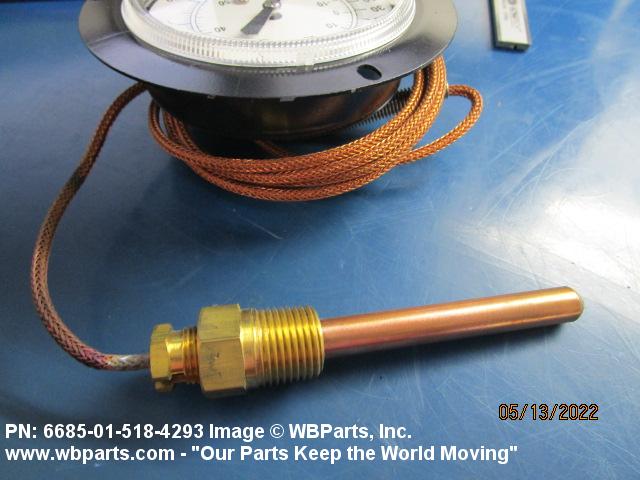

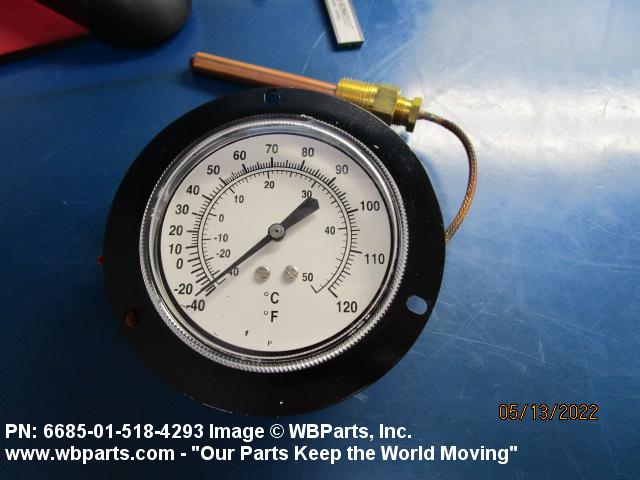

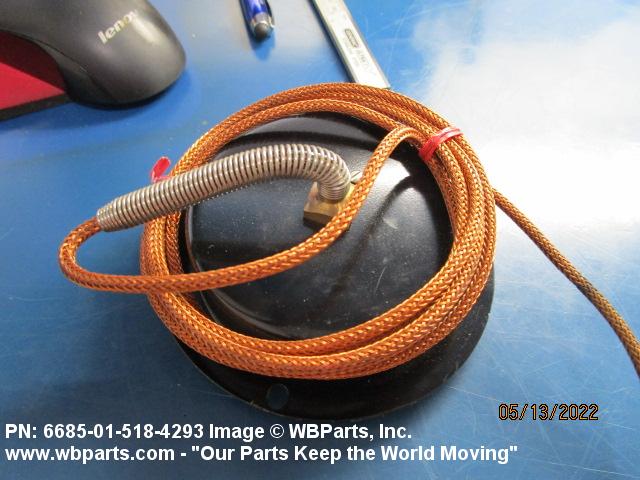

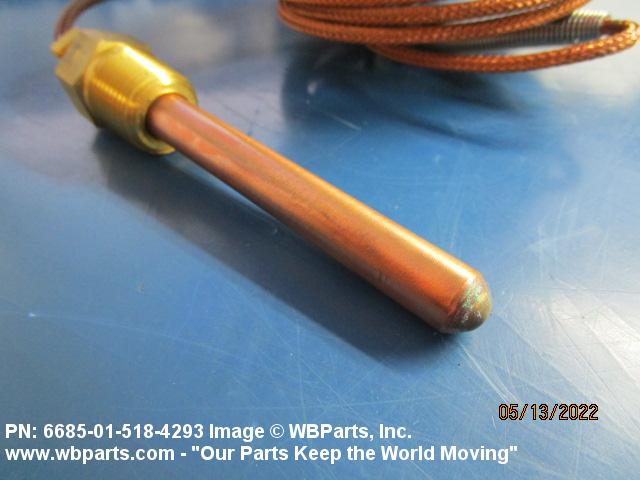

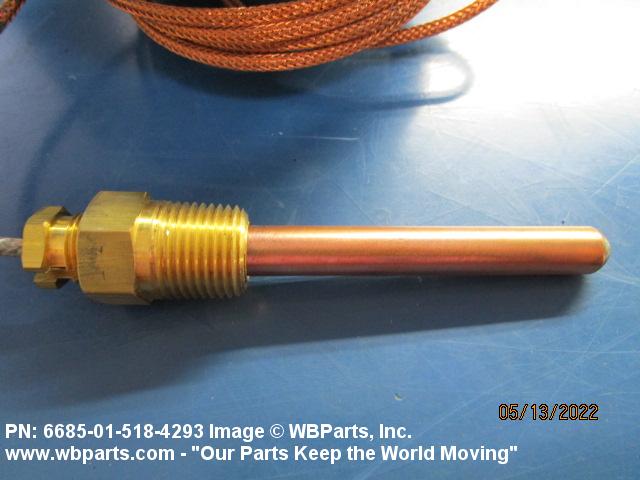

Drawings & Photos | NSN 6685-01-518-4293
Demand History | NSN 6685-01-518-4293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-518-4293 | 2024-05-122 | 1 | US |
| 6685-01-518-4293 | 2024-04-113 | 5 | US |
| 6685-01-518-4293 | 2023-01-04 | 2 | United States |
| 6685-01-518-4293 | 2022-09-249 | 5 | United States |
| K35220 | 2022-09-249 | 8 | DIBBS |
| 6685-01-518-4293 | 2022-08-236 | 5 | United States |
| K35220 | 2022-08-234 | 8 | DIBBS |
| K35220 | 2022-06-173 | 4 | DIBBS |
| 6685-01-518-4293 | 2022-05-125 | 2 | United States |
| 6685-01-518-4293 | 2022-04-118 | 2 | United States |
| K35220 | 2022-03-79 | 12 | DIBBS |
| 6685-01-518-4293 | 2018-10-283 | 29 | DIBBS |
| 6685-01-518-4293 | 2016-08-225 | 20 | DIBBS |
| 6685-01-518-4293 | 2016-08-217 | 20 | DIBBS |
| 6685-01-518-4293 | 2015-08-218 | 14 | DIBBS |
| 6685-01-518-4293 | 2014-01-02 | 8 | DIBBS |
| 6685-01-518-4293 | 2013-12-357 | 3 | DIBBS |
| 6685-01-518-4293 | 2013-12-349 | 3 | DIBBS |
| 6685-01-518-4293 | 2009-10-278 | 9 | DIBBS |
Cross Reference | NSN 6685-01-518-4293
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K35220 | 1W7V8 | TEMPCO INC DBA MARSHALLTOWN TEMPCO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-518-4293
Related Products | NSN 6685-01-518-4293
Technical Data | NSN 6685-01-518-4293
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC |
| SCALE MEASUREMENT RANGE | -40.000 TO 120.000 DEG FAHRENHEIT |
| MATERIAL | STEEL METER CASE COPPER CAPILLARY TUBE |
| STYLE DESIGNATOR | D3 BULB W/O SOCKET |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | K5 PLAIN BULB |
| BULB CONNECTION TYPE | THREADED UNION |
| FLEXIBLE TUBE LENGTH | 72.000 INCHES NOMINAL |
| ACTUATING MEDIUM | LIQUID |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| SPECIAL FEATURES | REMOTE MOUNTING TEMPERATURE INDICATOR,F OR C, 3 HOLE FRONT FLANGE WITH CENTER BACK REMOTE CONNECTION,3.5 INCH DIAL,1/2 INCH NPT UNION CONNECTION,BLACK MARKING ON WHITE FACE,2/5 SENSING BULB,TWIST IN CLEARLOK WINDOW,6 FT FLEXIBLE CAPILARY WITH DOUBLE-BRAIDED COPPER WITH SHEATH,TO21MLGM30F-4-4 FIG 4-365 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | THERMOMETER |
Restrictions/Controls & Freight Information | NSN 6685-01-518-4293
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-518-4293
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
