Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-503-2606 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SGE3M2NG, SGE3M2N-G, 8623041, 862304-1, 6685-01-503-2606, 01-503-2606, 6685015032606, 015032606
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 DEC 2002 | 01-503-2606 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

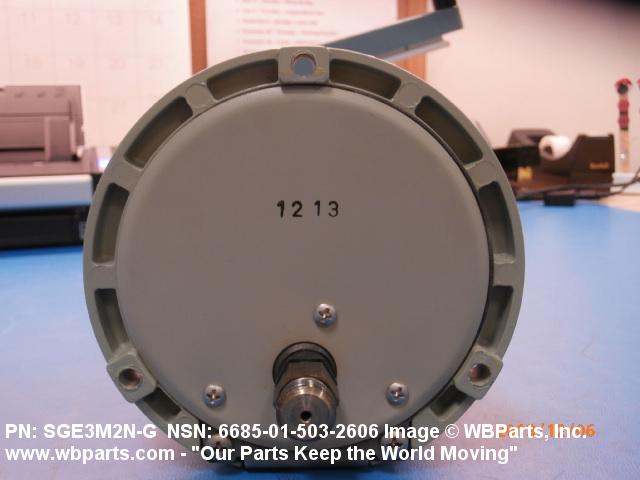

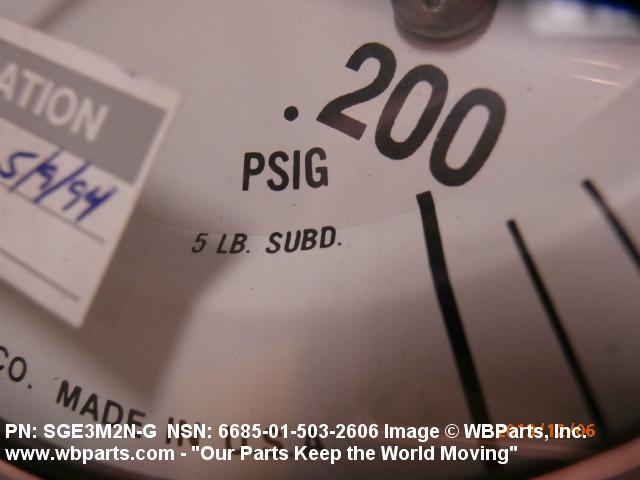

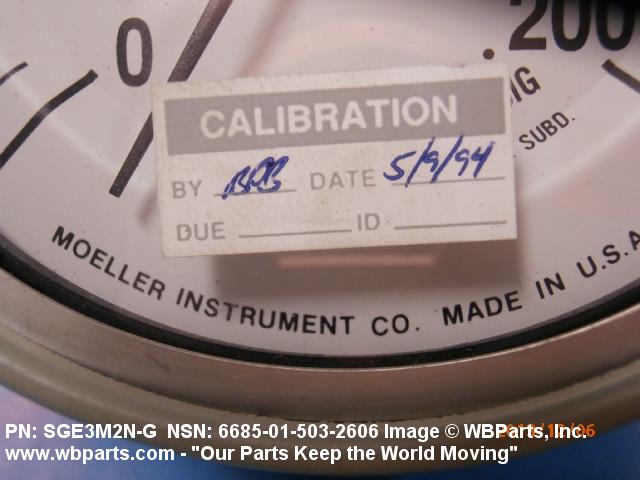

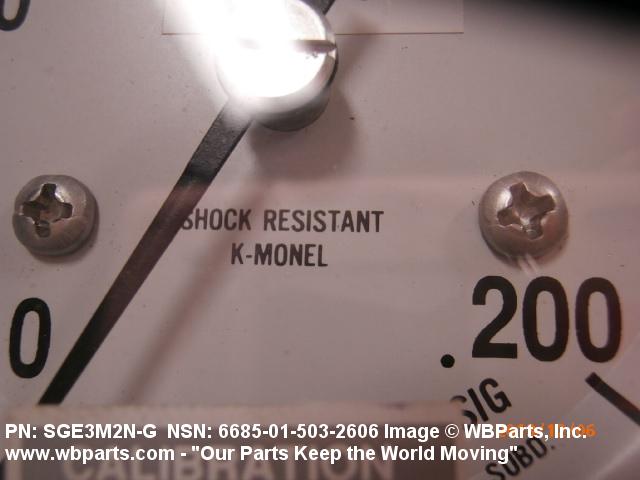

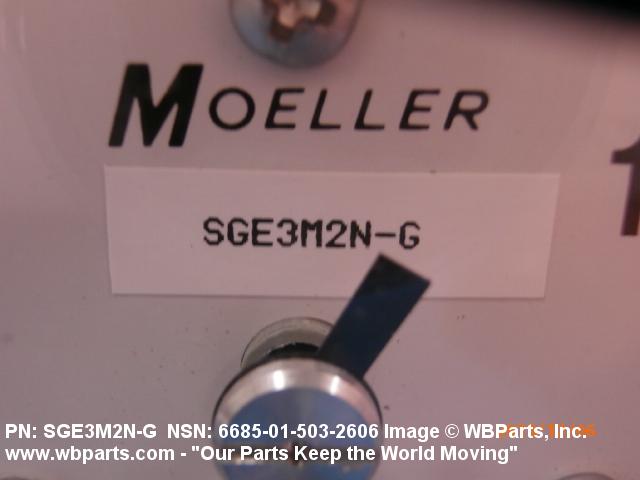

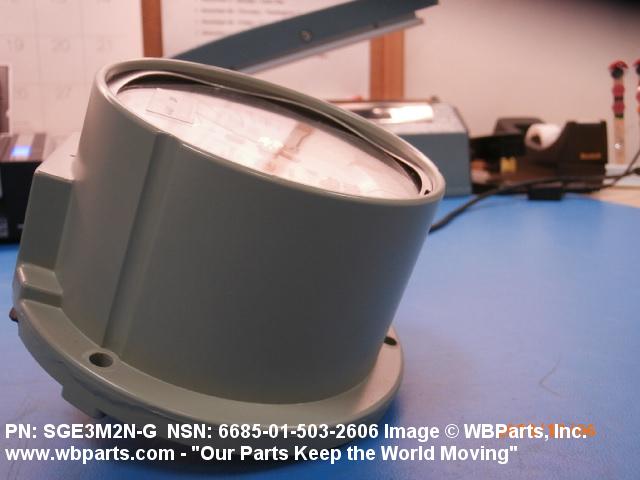

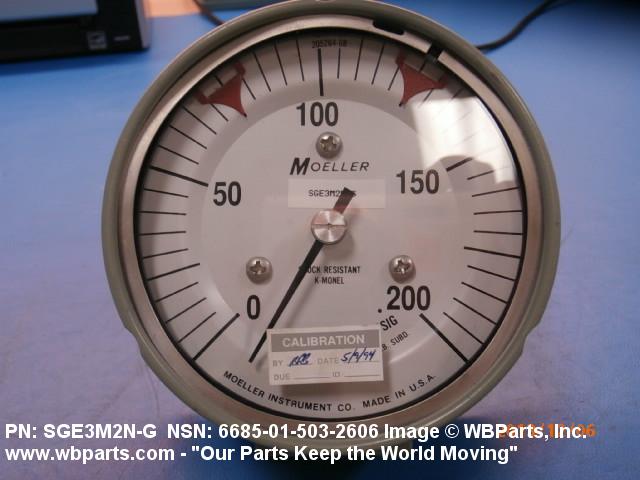

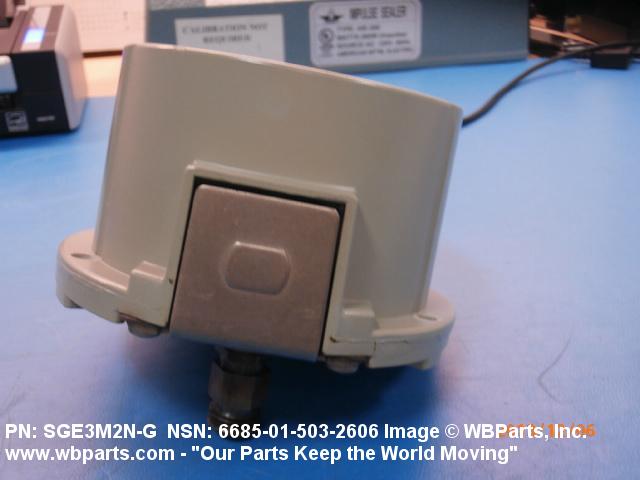

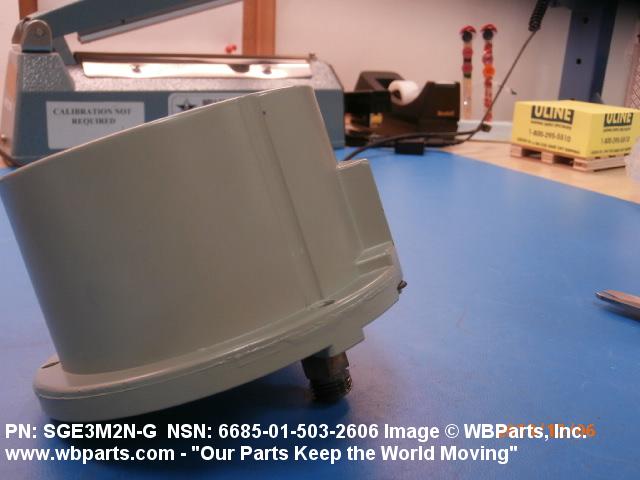

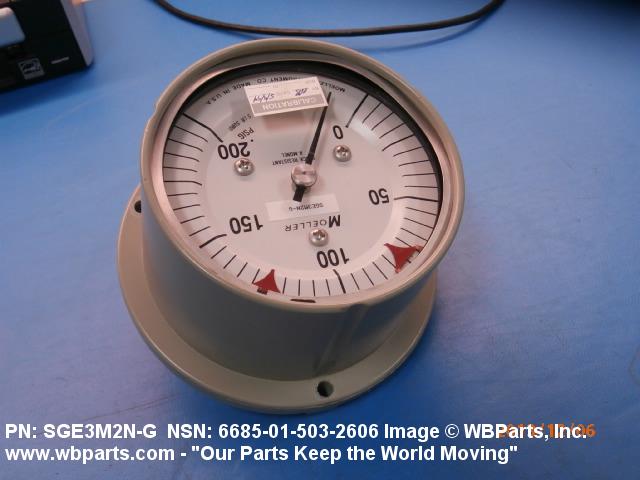

Drawings & Photos | NSN 6685-01-503-2606
Demand History | NSN 6685-01-503-2606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-503-2606 | 2024-10-305 | 1 | United States |
| SGE3M2N-G | 2024-09-259 | 18 | DIBBS |
| SGE3M2N-G | 2024-03-77 | 19 | DIBBS |
| SGE3M2N-G | 2023-12-351 | 22 | DIBBS |
| SGE3M2N-G | 2023-09-260 | 15 | DIBBS |
| SGE3M2N-G | 2023-04-106 | 13 | DIBBS |
| SGE3M2N-G | 2022-12-349 | 9 | DIBBS |
| SGE3M2N-G | 2022-07-198 | 8 | DIBBS |
| SGE3M2N-G | 2022-04-110 | 51 | DIBBS |
| SGE3M2N-G | 2022-04-95 | 51 | DIBBS |
| SGE3M2N-G | 2022-02-56 | 18 | DIBBS |
| SGE3M2N-G | 2022-02-48 | 18 | DIBBS |
| SGE3M2N-G | 2021-10-290 | 11 | DIBBS |
| SGE3M2N-G | 2021-07-196 | 16 | DIBBS |
| SGE3M2N-G | 2021-04-108 | 49 | DIBBS |
| SGE3M2N-G | 2020-11-320 | 13 | DIBBS |
| SGE3M2N-G | 2020-07-208 | 30 | DIBBS |
| SGE3M2N-G | 2020-03-79 | 10 | DIBBS |
| SGE3M2N-G | 2019-12-346 | 5 | DIBBS |
| SGE3M2N-G | 2019-09-258 | 10 | DIBBS |
| SGE3M2N-G | 2019-03-66 | 18 | DIBBS |
| 6685-01-503-2606 | 2018-11-319 | 7 | DIBBS |
| 6685-01-503-2606 | 2018-07-203 | 6 | DIBBS |
| 6685-01-503-2606 | 2018-03-81 | 5 | DIBBS |
| 6685-01-503-2606 | 2016-08-215 | 33 | DIBBS |
| 6685-01-503-2606 | 2015-02-35 | 19 | DIBBS |
| 6685-01-503-2606 | 2013-10-304 | 1 | United States |
| 6685-01-503-2606 | 2012-03-75 | 7 | DIBBS |
| 6685-01-503-2606 | 2011-11-307 | 4 | DIBBS |
| 6685-01-503-2606 | 2011-03-67 | 3 | DIBBS |
| 6685-01-503-2606 | 2011-01-24 | 2 | DIBBS |
| 6685-01-503-2606 | 2010-11-326 | 2 | DIBBS |
| 6685-01-503-2606 | 2010-08-214 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-503-2606
Technical Data | NSN 6685-01-503-2606
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | STEEL, STAINLESS |
| SCALE TYPE | DIAL |
| SCALE NAME | POUNDS PRESSURE |
| SCALE RANGE | 0.0 TO 200.0 POUNDS PRESSURE PER SQUARE INCH |
| GRADUATION UNIT | ANY ACCEPTABLE |
| SCALE SMALLEST INCREMENT | ANY ACCEPTABLE |

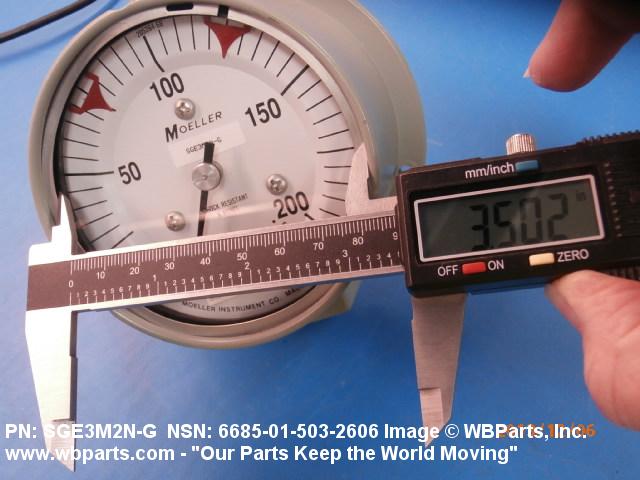

| DIAL SIZE | 3.5INCH |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | ANY ACCEPTABLE |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0-RING |
| MOUNTING METHOD | ANY ACCEPTABLE |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III END ITEM IDENTIFICATION | FILTER, FUEL |
