NSN 6685-01-451-8017 PM40, 01-451-8017, 014518017
Product Details | INDICATING PYROMETER
6685-01-451-8017 A pyrometer which utilizes the effect of temperature variation to change the characteristics of an electrical constant and this difference of electrical potential is shown by the position of a pointer relative to a graduated scale.
Part Alternates: PM40, 6685-01-451-8017, 01-451-8017, 6685014518017, 014518017
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 05 JAN 1998 | 01-451-8017 | 07343 ( PYROMETER, INDICATING ) |
Drawings & Photos | NSN 6685-01-451-8017
Cross Reference | NSN 6685-01-451-8017
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PM40 | 30550 | RAYTEK INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-451-8017
Technical Data | NSN 6685-01-451-8017
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | DIGITAL |
| SCALE TYPE | RECTANGULAR |
| SCALE MEASUREMENT RANGE | -18.000 TO 870.000 DEG CELSIUS |
| MATERIAL | ALUMINUM METER CASE |

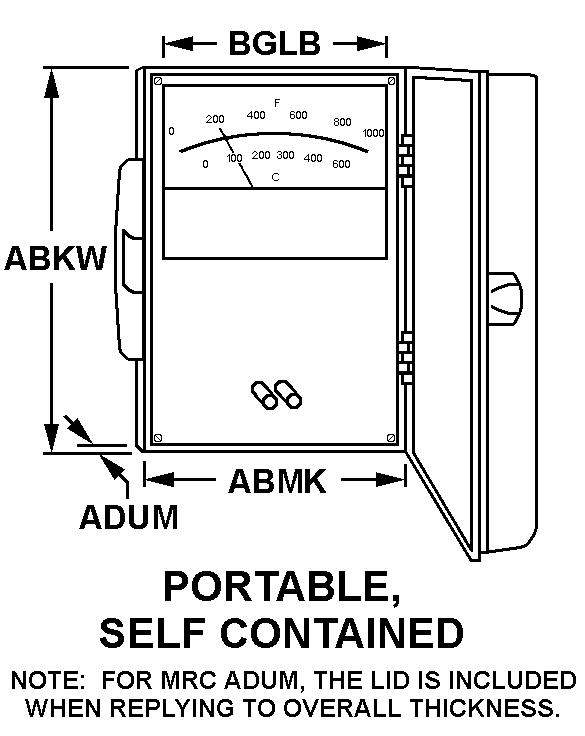

| STYLE DESIGNATOR | B2 PORTABLE, SELF CONTAINED |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| SCALE LENGTH | 5.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREAD |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.250 INCHES |
| MOUNTING THREAD QUANTITY | 20 PER INCH |
| III SCALE ACCURACY RATING | PORM 1 PERCENT OF READING |
Restrictions/Controls & Freight Information | NSN 6685-01-451-8017
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
