Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-449-8015 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: SCF-5, G71919, SCF5, 2438812, 24388121, 2438812-1, 6685-01-449-8015, 01-449-8015, 6685014498015, 014498015
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 OCT 1997 | 01-449-8015 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-01-449-8015
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-449-8015
Related Products | NSN 6685-01-449-8015
Technical Data | NSN 6685-01-449-8015
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | 20.000 TO 180.000 DEG FAHRENHEIT |
| MATERIAL | STEEL METER CASE COPPER BULB STEEL BEZEL |
| SURFACE TREATMENT | ENAMEL METER CASE CHROMATE BEZEL |

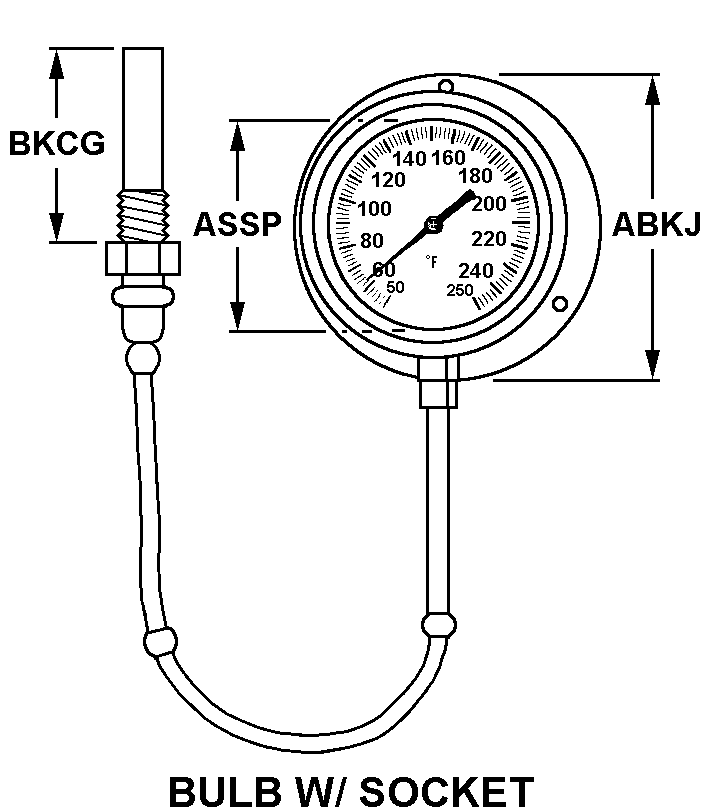

| STYLE DESIGNATOR | D2 BULB W/SOCKET |
| BULB TIP LENGTH | 5.500 INCHES NOMINAL |
| CASE DIAMETER | 3.469 INCHES NOMINAL |
| DIAL DIAMETER | 2.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| BULB TYPE | FLEXIBLE CAPILLARY |
| BULB QUANTITY | 1 |

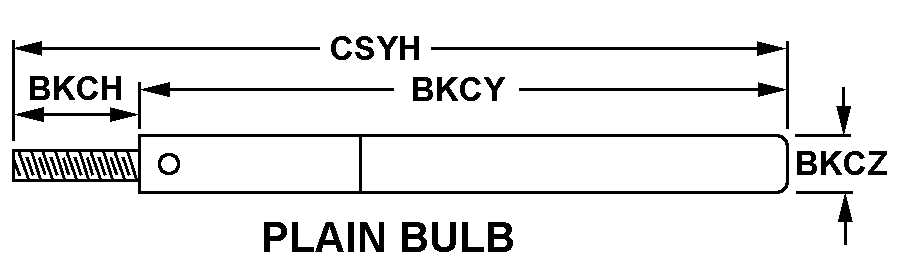

| BULB STYLE | K5 PLAIN BULB |
| ACTIVE PORTION LENGTH | 5.000 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.312 INCHES NOMINAL |
| BULB OVERALL LENGTH | 5.500 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 0.500 INCHES NOMINAL |
| BULB CONNECTION TYPE | THREADED UNION |
| FLEXIBLE TUBE LENGTH | 120.000 INCHES NOMINAL |
| ACTUATING MEDIUM | LIQUID |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLUSH |
| MOUNTING BOLT CIRCLE DIAMETER | 3.125 INCHES NOMINAL |
| CASE TYPE | ROUND |
| SPECIAL FEATURES | BULB INSERTION LENGTH 5 INCHES; FLUSH MOUNTING; 3/8 OR 1/2 NPT UNION CONNECTION; NO. 22 HARD COPPER BULB; 10 FT CAPILLARY TUBE; ACTUATION: SOLID LIQUID FILLED SYSTEM EMPLOYS A HIGH TORQUE PHOSPHOR BRONZE BOURDEN SPIRAL AND IS COMPARABLE WITH MERCURY IN SPEED OFRESPONSE; 270 DEG DIAL ARC WITH UNIFORM SPACE GRADUATIONS; DIRECT DRIVE POINTER ACTION; BLACK ENAMEL FINISH ON CASE; CHROME PLATED BEZEL RING |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKINGS ON WHITE BACKGROUND |
| III SCALE SMALLEST INCREMENT | 2.0 DEG FAHRENHEIT |
| III END ITEM IDENTIFICATION | ANTENNA TEST SETS 13A6520 SERIES,F-15S ACFT SUPPORT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GAGE,TEMPERATURE |
