NSN 6685-01-386-9239 0154DB4, 154DB3, 154DB4
Product Details | ELECTRICAL RESISTANCE TEMPERATURE TRANSMITTER
6685-01-386-9239 A device having a temperature sensing element whose electrical resistance varies with a change in temperature. It is designed to transmit information relative to temperature to an INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE. It may be a component part of a THERMOMETER, INDICATING, RESISTANCE; THERMOMETER, RECORDING, RESISTANCE. Excludes THERMOCOUPLE (as modified).
Part Alternates: 0154DB4, 154DB3, 154DB4, 1A7734, 1B7334, 6685-01-386-9239, 01-386-9239, 6685013869239, 013869239
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 FEB 1994 | 01-386-9239 | 20340 ( TRANSMITTER, TEMPERATURE, ELECTRICAL RESISTANCE ) |

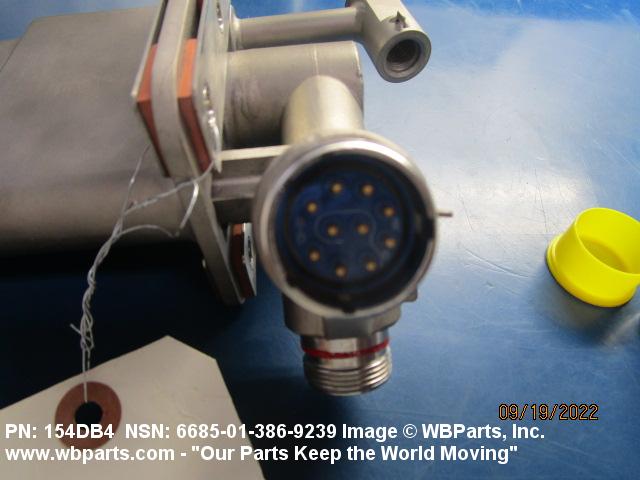

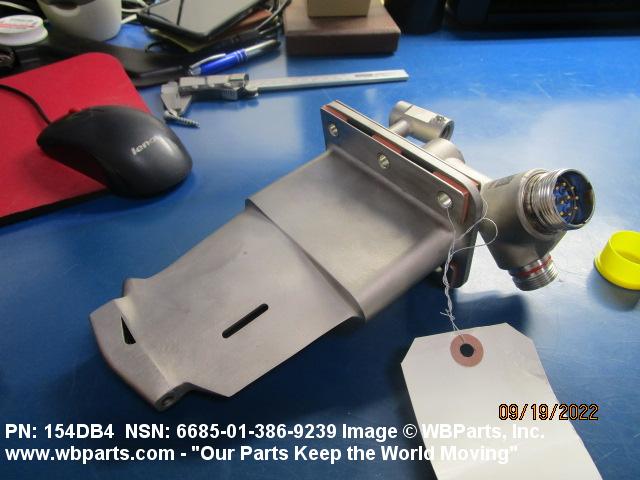

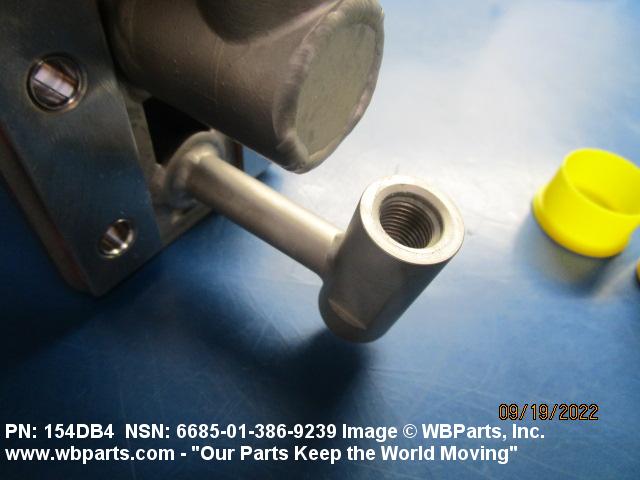

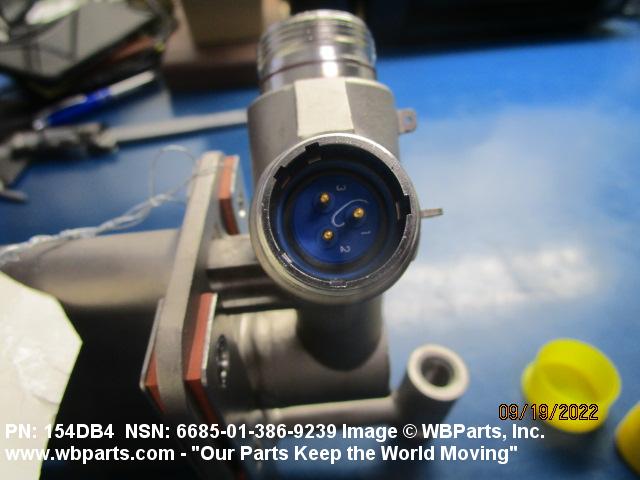

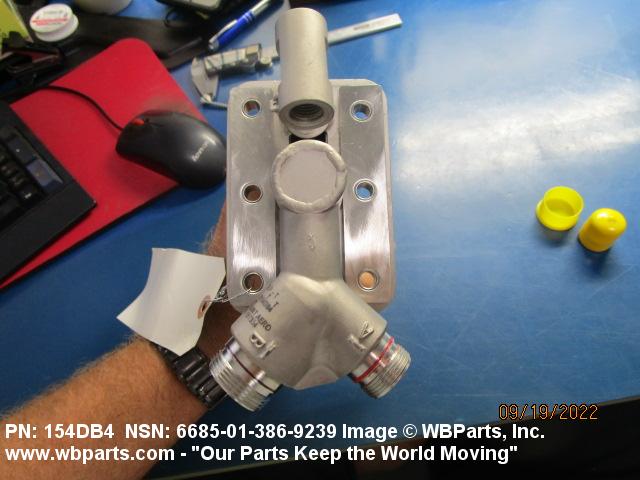

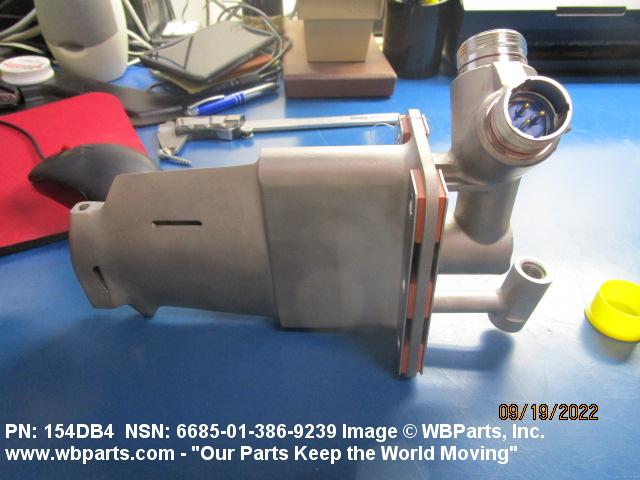

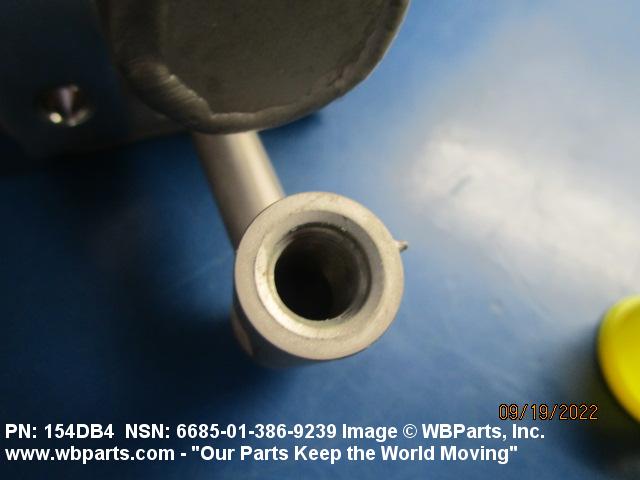

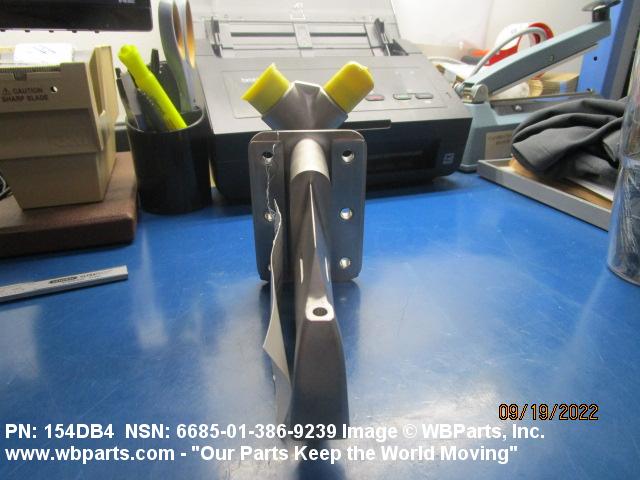

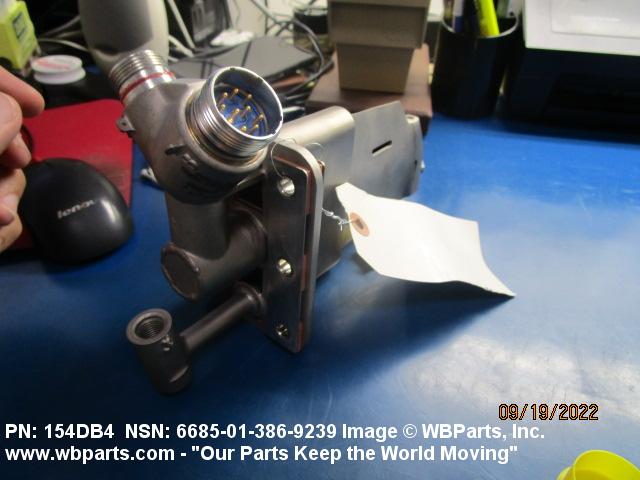

Drawings & Photos | NSN 6685-01-386-9239
Demand History | NSN 6685-01-386-9239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-386-9239 | 2024-05-127 | 2 | US |
| 1B7334 | 2022-08-228 | 1 | United States |
| 6685-01-386-9239 | 2016-10-284 | 1 | United States |
| 154DB3 | 2015-03-85 | 1 | United States |
| 0154DB4 | 2011-05-124 | 10 | US |
| 0154DB4 | 2011-04-98 | 41 | United States |
Cross Reference | NSN 6685-01-386-9239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0154DB4 | 60678 | ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION |
| 154DB3 | 60678 | ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION |
| 154DB4 | 60678 | ROSEMOUNT AEROSPACE INC. DBA ROSEMOUNT AEROSPACE DIVISION |
| 1A7734 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 1B7334 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-386-9239
Related Products | NSN 6685-01-386-9239
Technical Data | NSN 6685-01-386-9239
| Characteristic | Specifications |
|---|---|
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DRAWING |
| III END ITEM IDENTIFICATION | F117-PW-100 ENGINE C17 ACFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ENGINE FUEL AND CONTROL PROBE,INLET TOTAL PRESSURE AND TEMPERATURE |
| MANUFACTURERS CODE | 77445 |
| MFR SOURCE CONTROLLING REFERENCE | 1B7334 |
| MANUFACTURERS CODE | 60678 |
| DESIGN CONTROL REFERENCE | 0154DB4 |
Restrictions/Controls & Freight Information | NSN 6685-01-386-9239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-386-9239
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BE | TB:C-17 ENGINE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
