Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-364-2194 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: HF454, MIL8348A5, MILG8348CLASSASIZE3, MILG8348CLASSASIZE5, MIL-G-8348CLASSASIZE5, 6685-01-364-2194, 01-364-2194, 6685013642194, 013642194
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 14 SEP 1992 | 01-364-2194 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |
Drawings & Photos | NSN 6685-01-364-2194
Demand History | NSN 6685-01-364-2194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-364-2194 | 2022-09-262 | 1 | United States |
| HF454 | 2022-08-229 | 39 | DIBBS |
| HF454 | 2020-12-357 | 1 | Thailand |
| 6685-01-364-2194 | 2018-06-176 | 47 | DIBBS |
| 6685-01-364-2194 | 2018-06-170 | 2 | US |
| 6685-01-364-2194 | 2018-06-168 | 47 | DIBBS |
| 6685-01-364-2194 | 2018-06-164 | 2 | us |
| 6685-01-364-2194 | 2017-05-134 | 21 | DIBBS |
| 6685-01-364-2194 | 2017-05-131 | 1 | DIBBS-RFPs |
| 6685-01-364-2194 | 2016-11-313 | 18 | DIBBS |
| 6685-01-364-2194 | 2016-09-251 | 12 | DIBBS |
| 6685-01-364-2194 | 2016-08-220 | 8 | DIBBS |
| 6685-01-364-2194 | 2016-02-40 | 12 | DIBBS |
| 6685-01-364-2194 | 2016-01-31 | 9 | DIBBS |
| 6685-01-364-2194 | 2015-12-354 | 9 | DIBBS |
| 6685-01-364-2194 | 2015-02-55 | 37 | DIBBS |
| MILG8348CLASSASIZE5 | 2013-02-32 | 50 | |
| 6685-01-364-2194 | 2013-01-31 | 50 | NECO |
| MILG8348CLASSASIZE5 | 2011-06-162 | 80 | |
| 6685-01-364-2194 | 2011-06-161 | 80 | NECO |
Cross Reference | NSN 6685-01-364-2194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HF454 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MIL-G-8348CLASSASIZE5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL8348A5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILG8348CLASSASIZE3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-364-2194
Technical Data | NSN 6685-01-364-2194
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | PISTON |
| ACTUATING ELEMENT MATERIAL | BRASS |
| SCALE TYPE | DIAL |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 400.0 POUNDS |
| GRADUATION UNIT | 5.0 POUNDS |

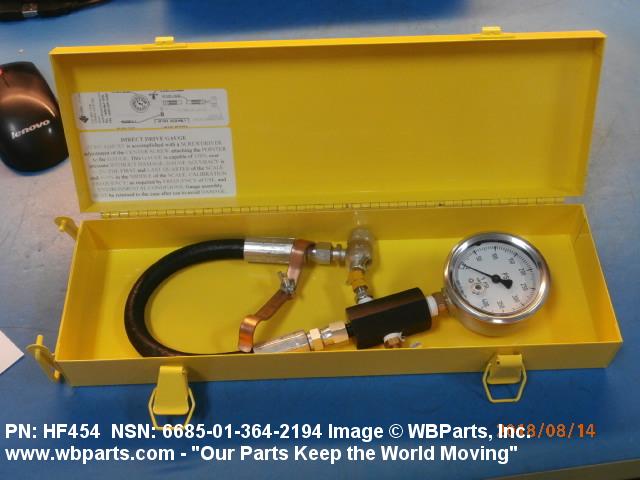

| SPECIAL FEATURES | COMPONENTS INCLUDE DIAL,INCICATING PRESSURE GAGE,BLEEDER VALVE,STEM,HOSE,CHUCK ASSY,EXTENSIONS 3,STEELCARRYING CASE; 14.250 IN. X 5.000 IN. X 2.125 IN.; 5 LBS.; MATERIALS USED: RUBBER,CLASS; FINISH: CADMIUM PLATED; STORAGE CONTAINER IS CORROSION RESISTANT |
| SPECIFICATION/STANDARD DATA | 81349-MIL-G-8348 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | A CLASS |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL F/A-18 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-8348CLASSASIZE5 |
Restrictions/Controls & Freight Information | NSN 6685-01-364-2194
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
