NSN 6685-01-183-5472 362CAILOPGE020120F3FT, 362CAILOPGE0-20-120F-3FT, 01-183-5472
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-183-5472 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 362CAILOPGE020120F3FT, 362CAILOPGE0-20-120F-3FT, 6685-01-183-5472, 01-183-5472, 6685011835472, 011835472
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 07 JUL 1984 | 01-183-5472 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

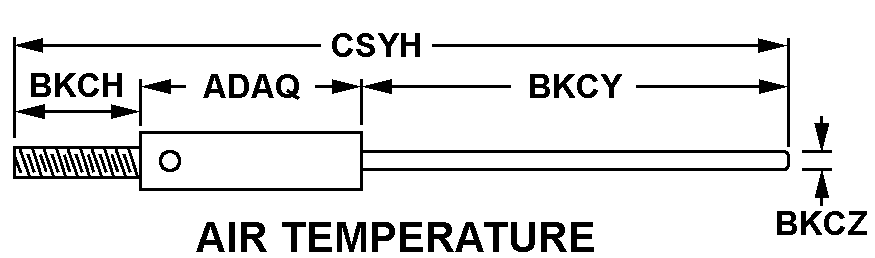

Drawings & Photos | NSN 6685-01-183-5472
Cross Reference | NSN 6685-01-183-5472
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 362CAILOPGE0-20-120F-3FT | 64467 | WEKSLER GLASS THERMOMETER CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-183-5472
Technical Data | NSN 6685-01-183-5472
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | -20.000 TO 120.000 DEG FAHRENHEIT |
| MATERIAL | ALUMINUM METER CASE COPPER BULB COPPER CAPILLARY TUBE |
| STYLE DESIGNATOR | D3 BULB W/O SOCKET |
| CASE DIAMETER | 3.922 INCHES NOMINAL |
| DIAL DIAMETER | 3.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | FLEXIBLE CAPILLARY |
| BULB QUANTITY | 1 |
| BULB STYLE | K8 AIR TEMPERATURE |
| ACTIVE PORTION DIAMETER | 0.375 INCHES NOMINAL |
| BULB OVERALL LENGTH | 6.000 INCHES NOMINAL |
| FLEXIBLE TUBE LENGTH | 36.000 INCHES NOMINAL |
| ACTUATING MEDIUM | VAPOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET |
| III END ITEM IDENTIFICATION | POSEIDON MATERIAL |
| MANUFACTURERS CODE | 64467 |
| DESIGN CONTROL REFERENCE | 362CAILOPGE0-20-120F-3FT |
Restrictions/Controls & Freight Information | NSN 6685-01-183-5472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-183-5472
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
