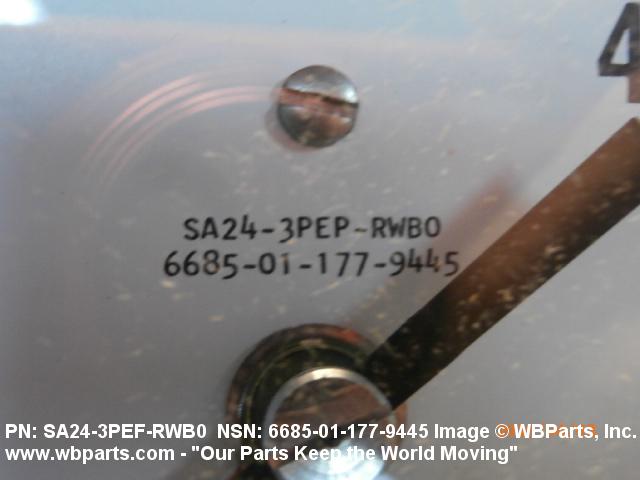

NSN 6685-01-177-9445 SA243PEFRWB0, SA24-3PEF-RWB0, SA243PEPRWBO
Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-177-9445 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SA243PEFRWB0, SA24-3PEF-RWB0, SA243PEPRWBO, SA24-3PEP-RWBO, EA243PEPRWB0, EA24-3PEP-RWB0, MIL-I-18997/1DEB TYA45-0-60B, MILI189971DEBTYA45060B, 4950P70073, 4950P7007-3, 705652 PIECE 91, 705652PIECE91, 6685-01-177-9445, 01-177-9445, 6685011779445, 011779445
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 APR 1984 | 01-177-9445 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

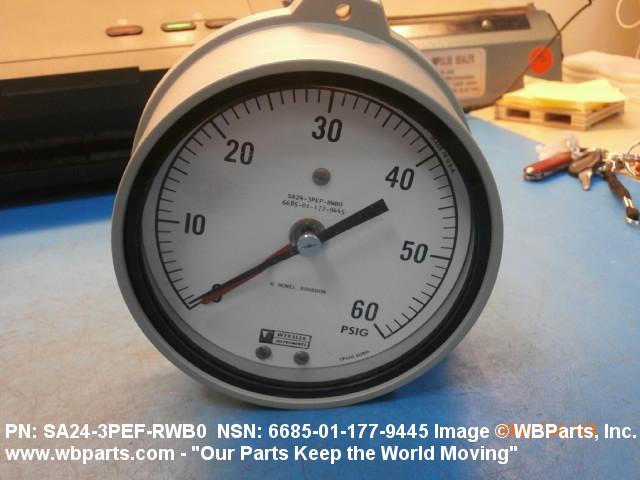

Drawings & Photos | NSN 6685-01-177-9445
Demand History | NSN 6685-01-177-9445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4950P7007-3 | 2024-07-200 | 13 | DIBBS |
| EA24-3PEP-RWB0 | 2024-07-200 | 13 | DIBBS |
| 4950P7007-3 | 2023-11-325 | 30 | DIBBS |
| EA24-3PEP-RWB0 | 2023-11-325 | 30 | DIBBS |
| 4950P7007-3 | 2023-11-317 | 30 | DIBBS |
| EA24-3PEP-RWB0 | 2023-11-317 | 30 | DIBBS |
| 4950P7007-3 | 2023-08-240 | 12 | DIBBS |
| EA24-3PEP-RWB0 | 2023-08-240 | 12 | DIBBS |
| 4950P7007-3 | 2023-08-232 | 12 | DIBBS |
| EA24-3PEP-RWB0 | 2023-08-232 | 12 | DIBBS |
| 4950P7007-3 | 2023-07-209 | 18 | DIBBS |
| EA24-3PEP-RWB0 | 2023-07-209 | 18 | DIBBS |
| 4950P7007-3 | 2023-07-200 | 18 | DIBBS |
| EA24-3PEP-RWB0 | 2023-07-200 | 18 | DIBBS |
| 4950P7007-3 | 2023-03-75 | 18 | DIBBS |
| EA24-3PEP-RWB0 | 2023-03-75 | 18 | DIBBS |
| 4950P7007-3 | 2023-03-67 | 18 | DIBBS |
| EA24-3PEP-RWB0 | 2023-03-67 | 18 | DIBBS |
| 4950P7007-3 | 2019-04-97 | 17 | DIBBS |
| EA24-3PEP-RWB0 | 2019-04-97 | 17 | DIBBS |
| 6685-01-177-9445 | 2019-02-45 | 5 | United States |
| 6685-01-177-9445 | 2019-02-36 | 5 | United States |
| 6685-01-177-9445 | 2018-09-253 | 5 | United States |
| 6685-01-177-9445 | 2017-08-230 | 1 | DIBBS-RFPs |
| 6685-01-177-9445 | 2017-07-192 | 6 | DIBBS |
| 6685-01-177-9445 | 2017-06-169 | 4 | DIBBS |
| 6685-01-177-9445 | 2016-02-48 | 45 | DIBBS |
| 6685-01-177-9445 | 2010-04-95 | 8 | DIBBS |
| 6685-01-177-9445 | 2010-02-47 | 25 | DIBBS |
| 6685-01-177-9445 | 2010-01-15 | 6 | DIBBS |
Cross Reference | NSN 6685-01-177-9445
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4950P7007-3 | 23905 | L-3 COMMUNICATIONS WESTWOOD CORPORATION |
| 705652 PIECE 91 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| EA24-3PEP-RWB0 | 049X3 | ASHCROFT INC. DBA WEKSLER |
| MIL-I-18997/1DEB TYA45-0-60B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SA24-3PEF-RWB0 | 64467 | WEKSLER GLASS THERMOMETER CORP |
| SA24-3PEP-RWBO | 64467 | WEKSLER GLASS THERMOMETER CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-177-9445
Related Products | NSN 6685-01-177-9445
Technical Data | NSN 6685-01-177-9445

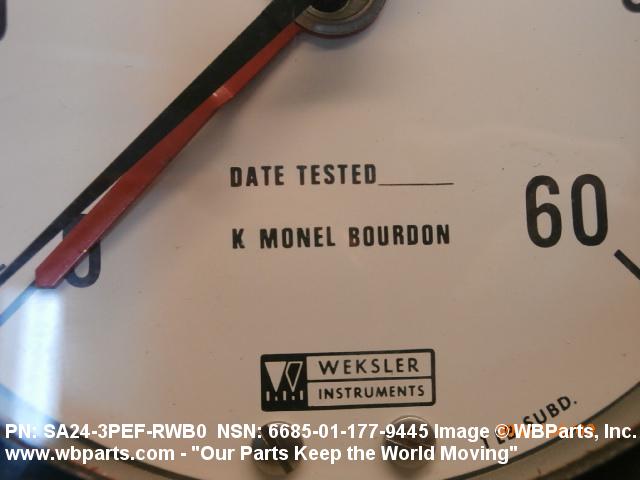

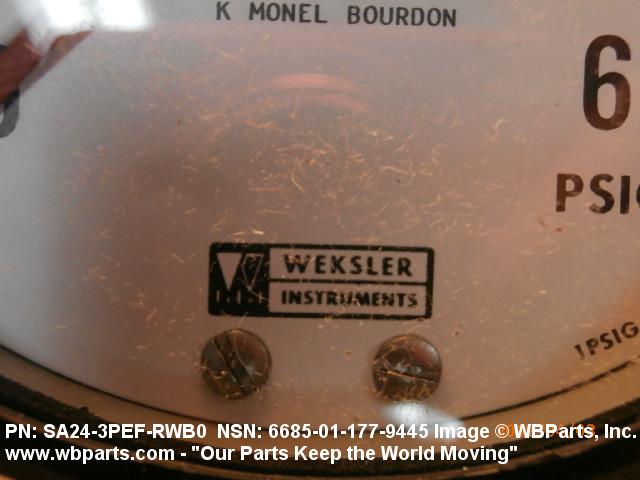

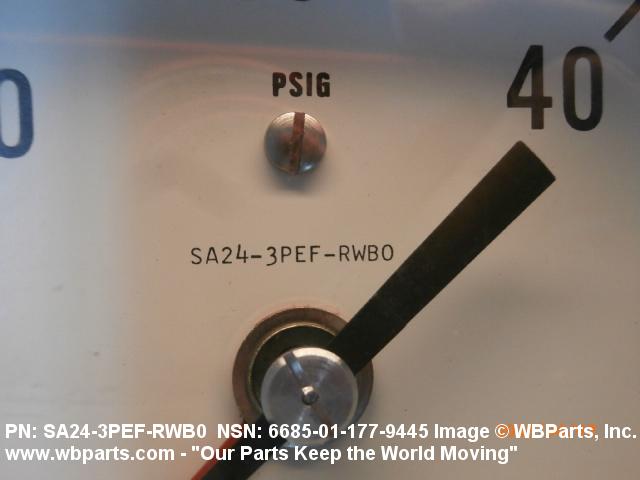

| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL COPPER ALUMINUM ALLOY |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |

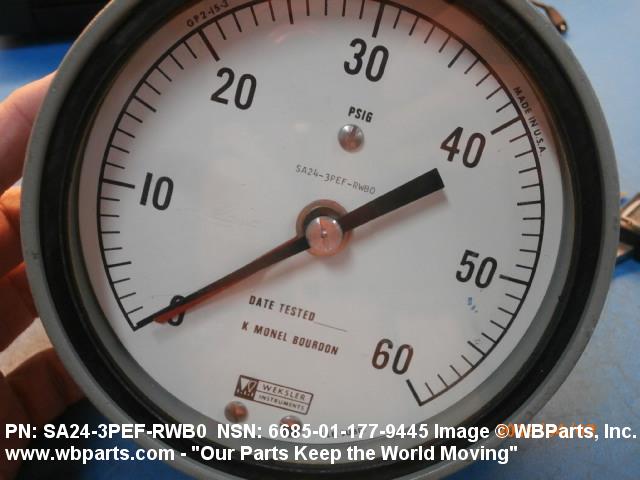

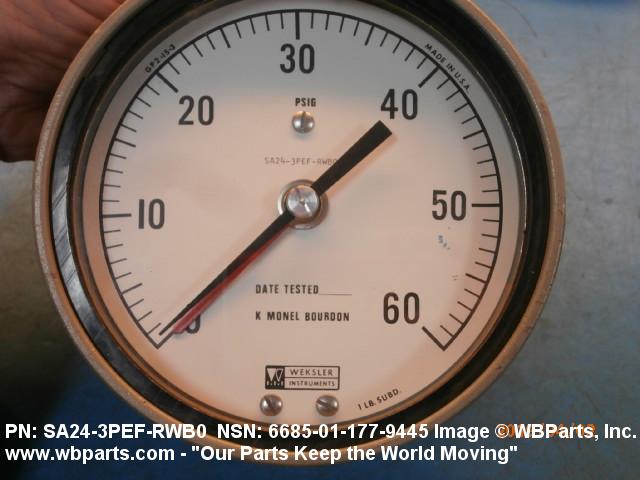

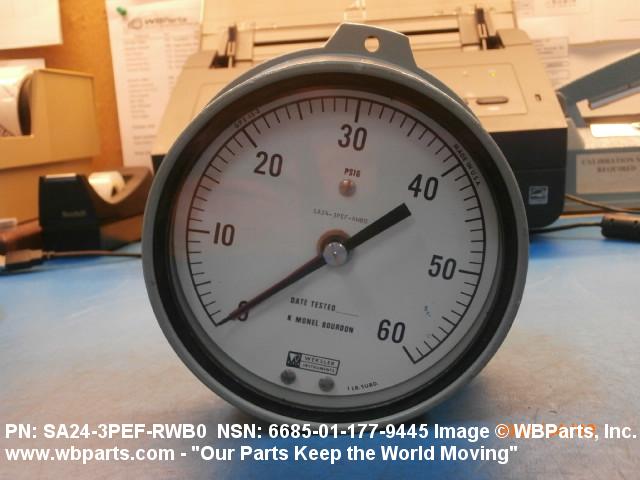

| SCALE RANGE | 0.0 TO 60.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | PORM 1 PCT FULL SCALE |
| GRADUATION UNIT | 10.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 1.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKINGS ON WHITE BACKGROUND |

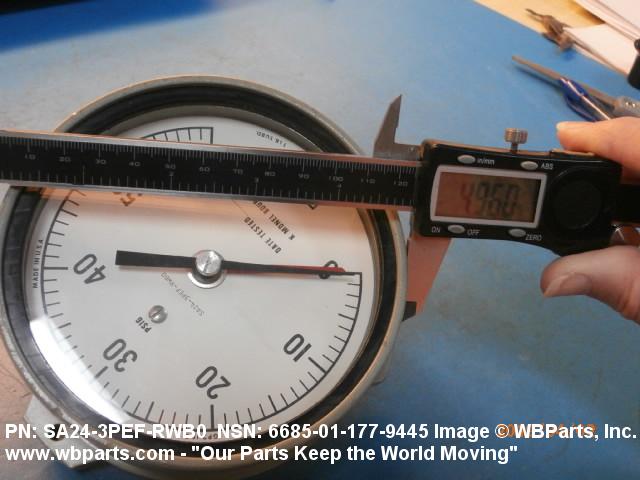

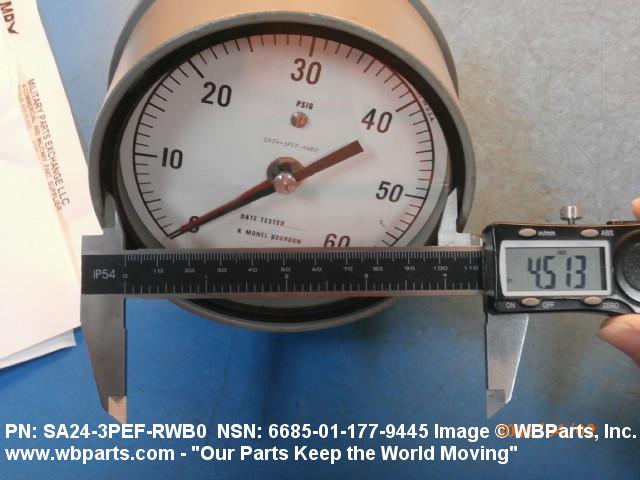

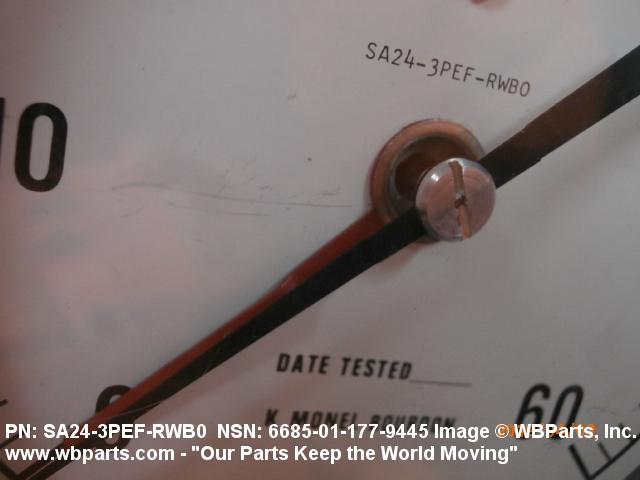

| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING AND REFERENCE |
| ADJUSTABILITY | ADJUSTABLE |

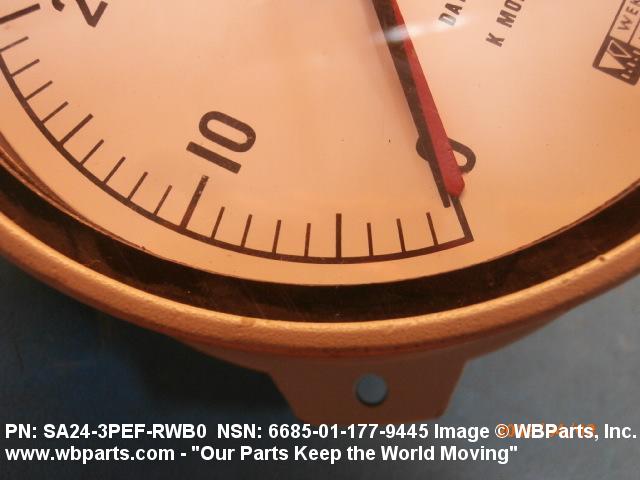

| POINTER COLOR | BLACK AND RED |
| CASE MATERIAL | ALUMINUM |

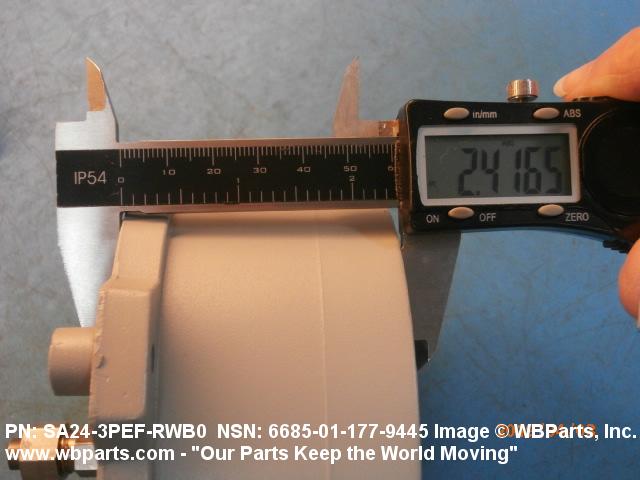

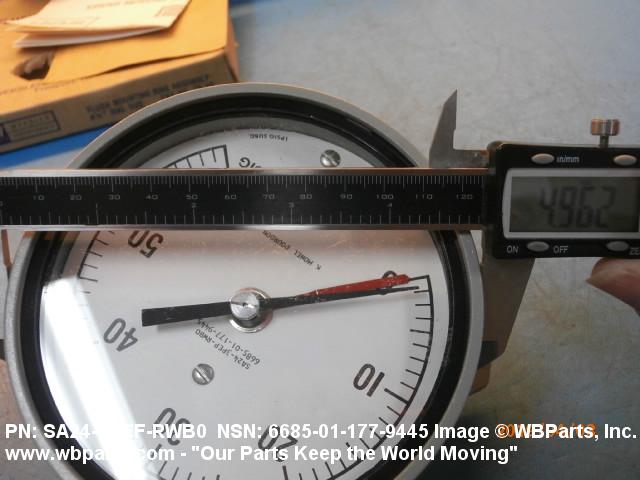

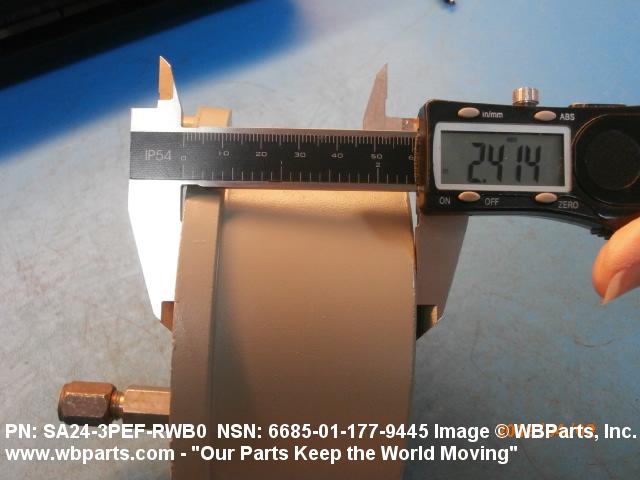

| OVERALL DIAMETER | 4.969 INCHES NOMINAL |
| OVERALL DEPTH | 2.406 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |

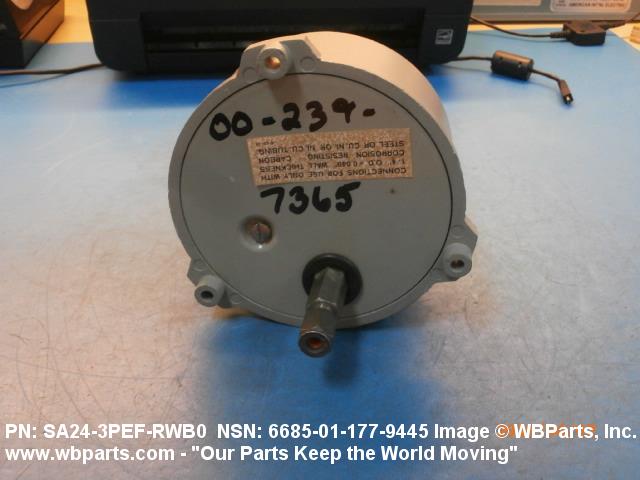

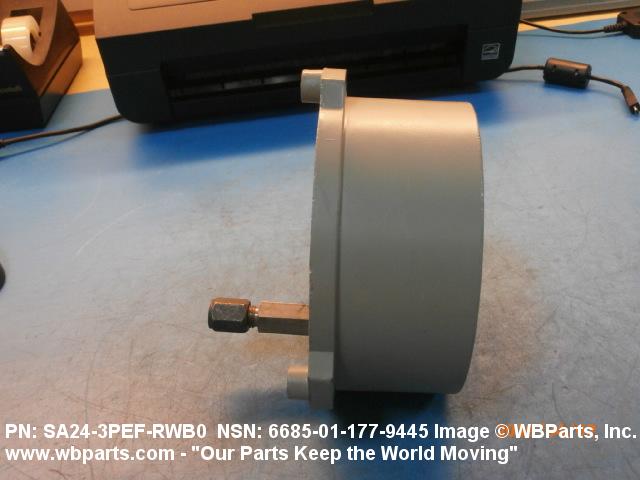

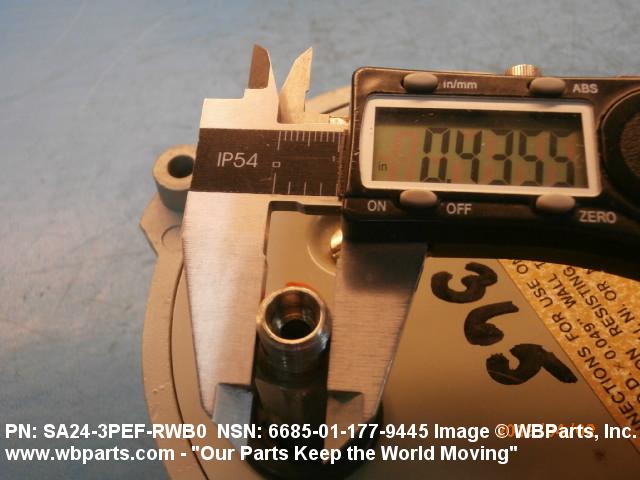

| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.250 IN. NPT DIA |
| MOUNTING METHOD | FLUSH |
| BOLT CIRCLE DIAMETER | 5.876 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |

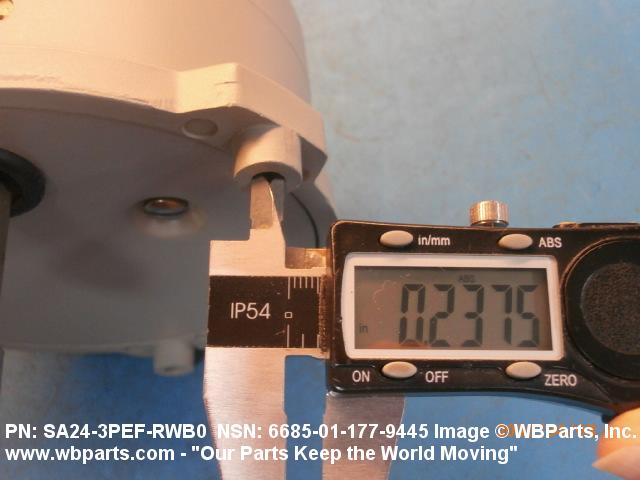

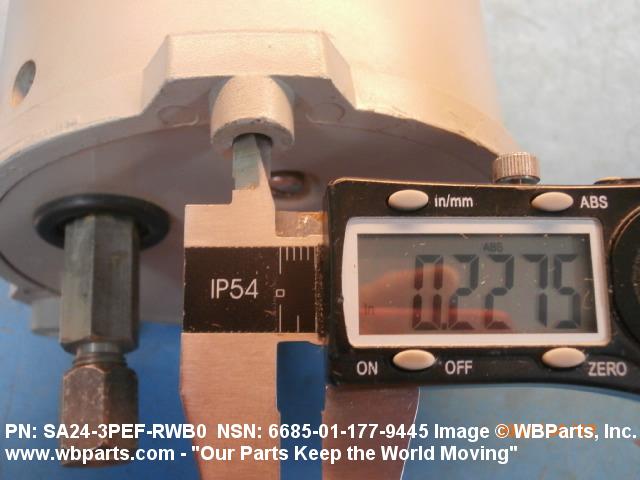

| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
