NSN 6685-01-173-9505 634A348001, 634A348-001, 634A3481
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-173-9505 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 634A348001, 634A348-001, 634A3481, 634A348-1, 6685-01-173-9505, 01-173-9505, 6685011739505, 011739505
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 MAR 1984 | 01-173-9505 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

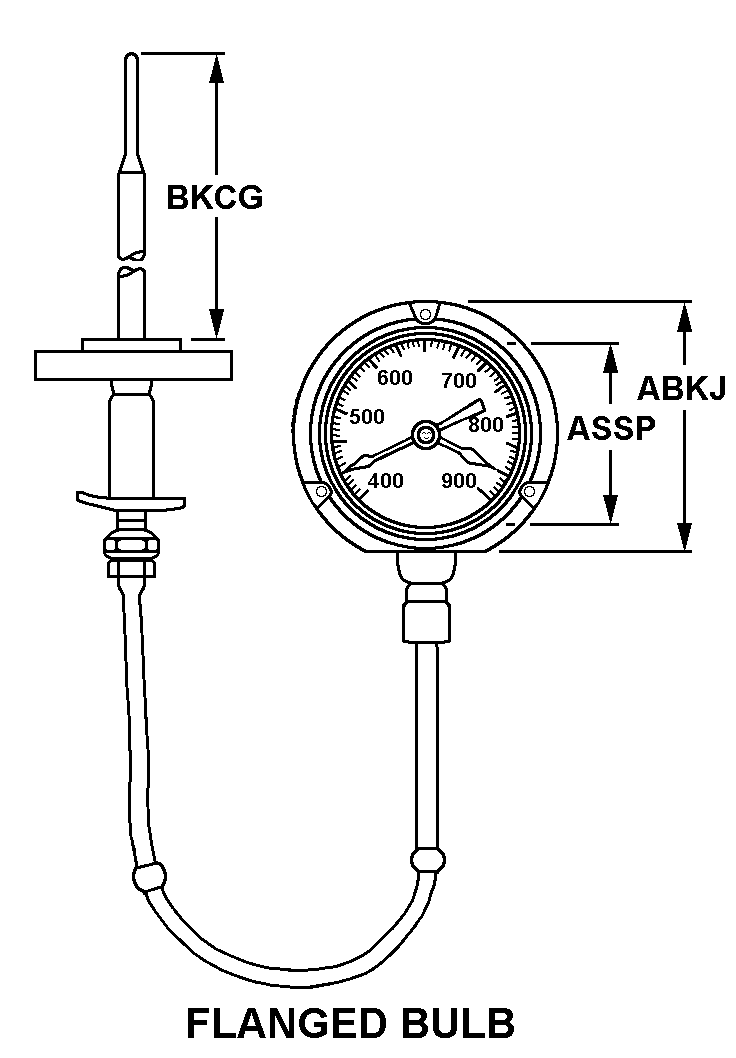

Drawings & Photos | NSN 6685-01-173-9505
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-173-9505
Technical Data | NSN 6685-01-173-9505
| Characteristic | Specifications |
|---|---|
| SCALE MEASUREMENT RANGE | 200.000 TO 1100.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | D8 FLANGED BULB |
| BULB TIP LENGTH | 14.750 INCHES NOMINAL |
| DIAL DIAMETER | 8.500 INCHES NOMINAL |
| BULB QUANTITY | 1 |
| FLEXIBLE TUBE LENGTH | 30.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6685-01-173-9505
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-173-9505
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
