NSN 6685-01-166-9508 C101531, C10153-1, D6140BZ
Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-166-9508 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: C101531, C10153-1, D6140BZ, 6685-01-166-9508, 01-166-9508, 6685011669508, 011669508
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 20 NOV 1983 | 01-166-9508 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

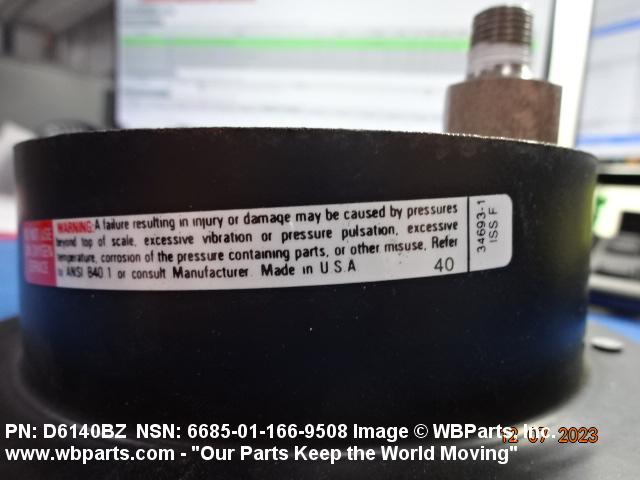

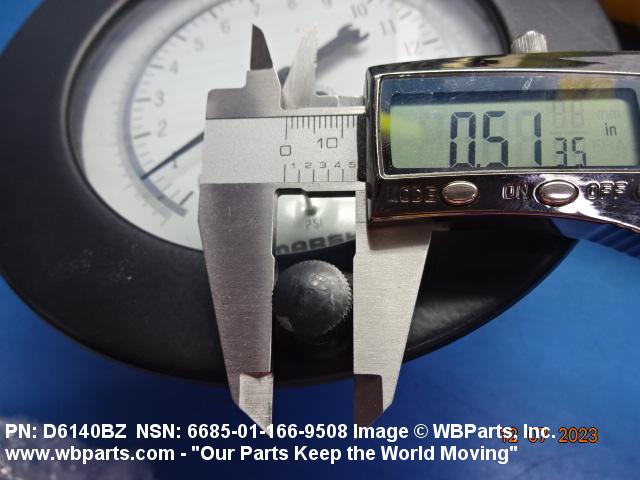

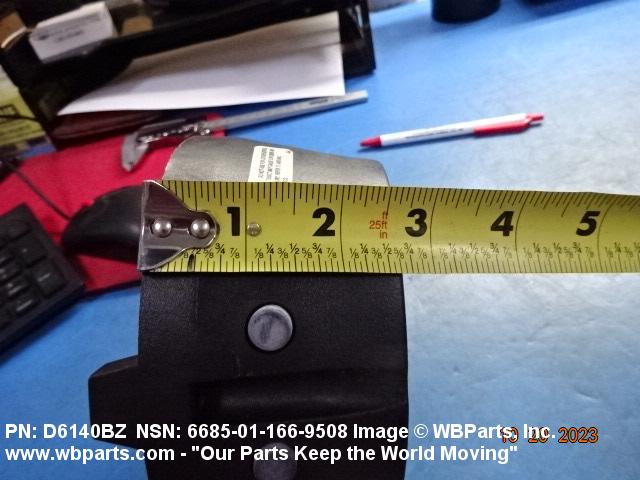

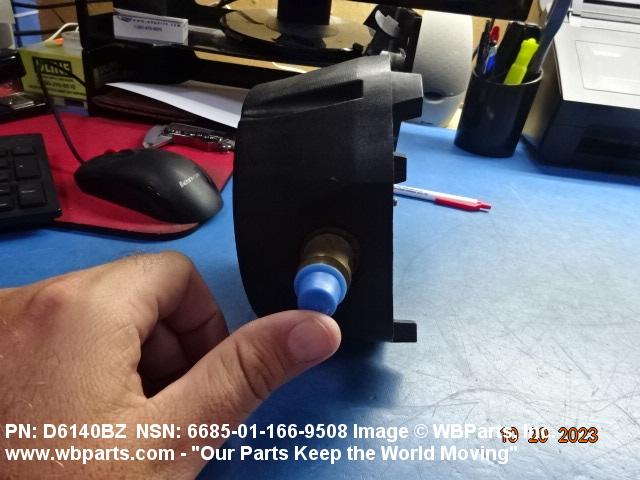

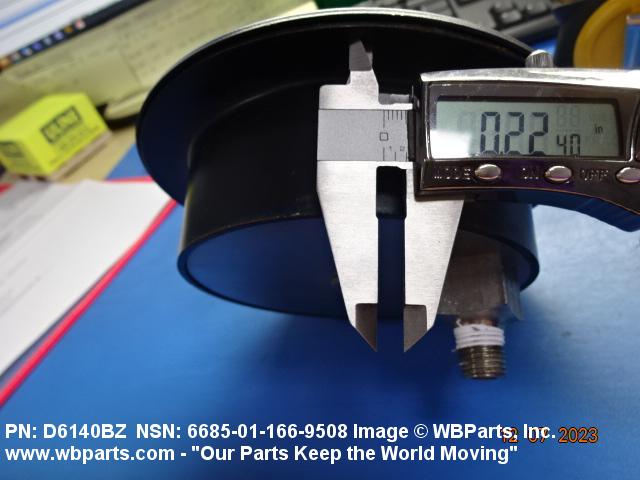

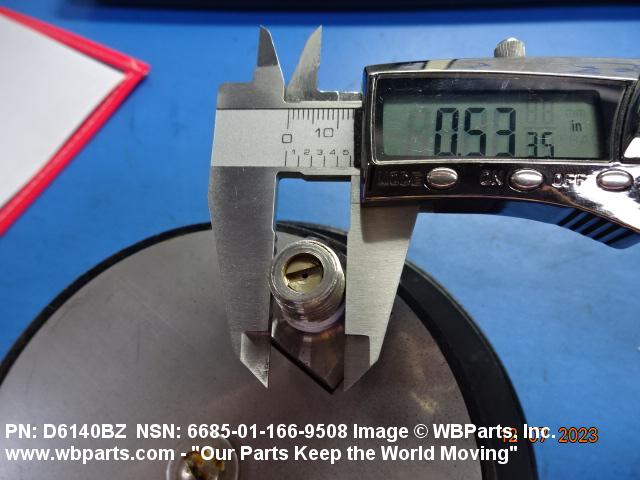

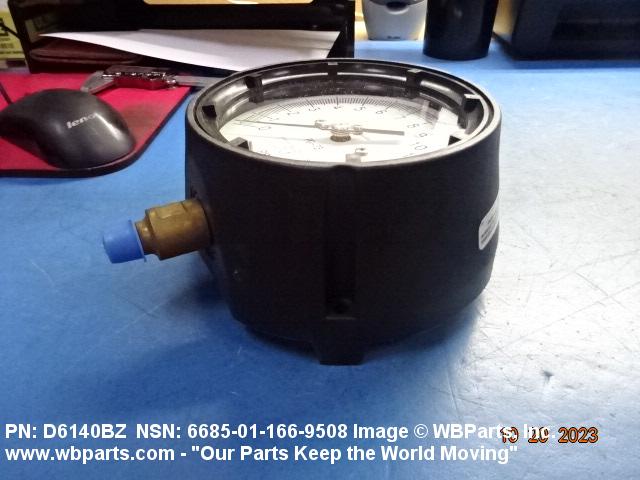

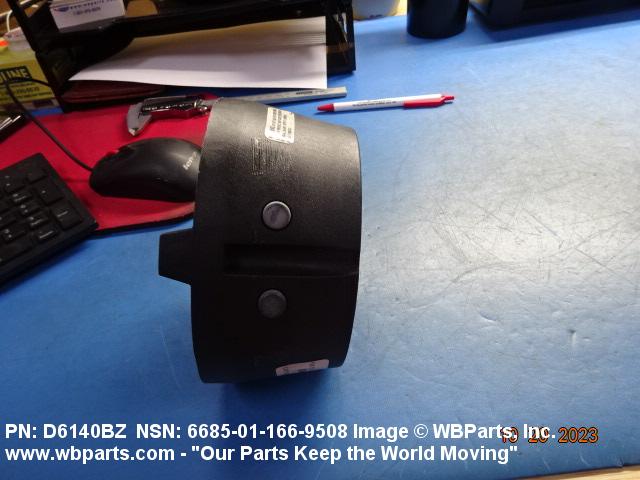

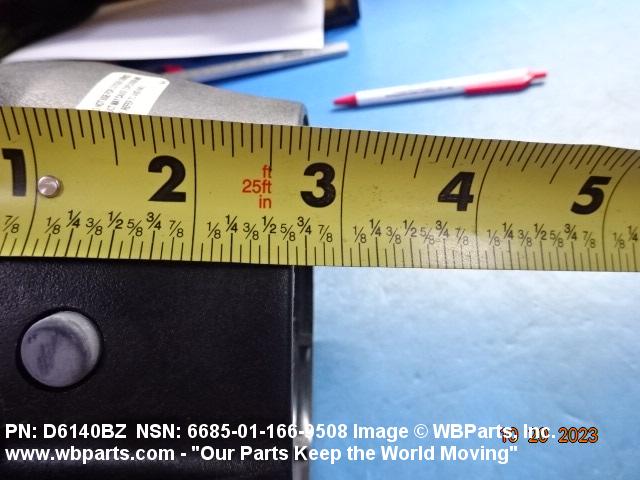

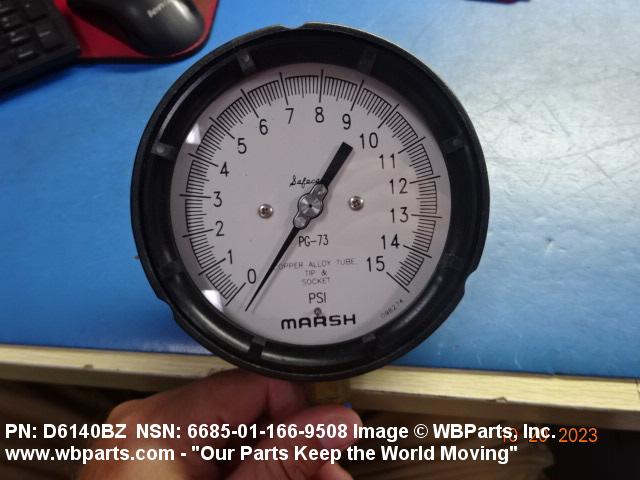

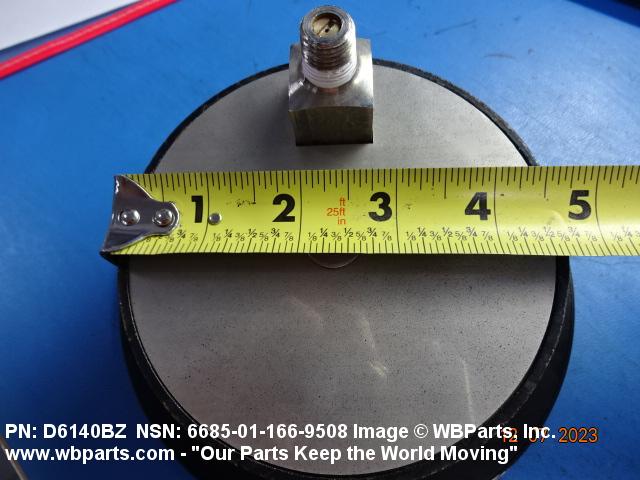

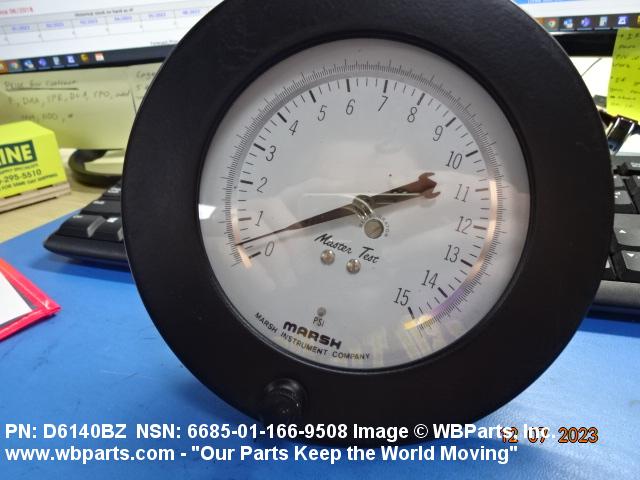

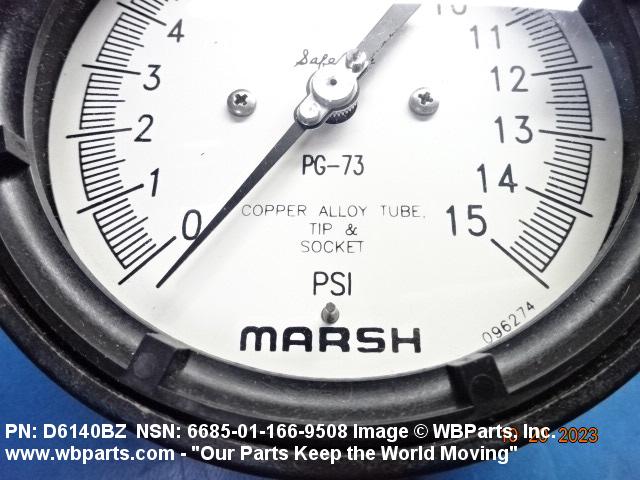

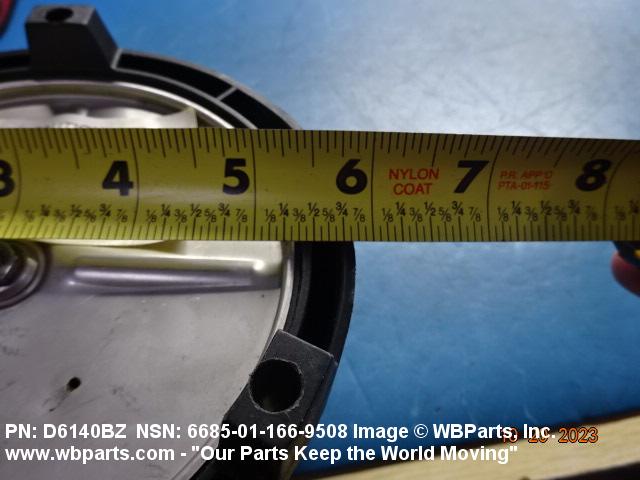

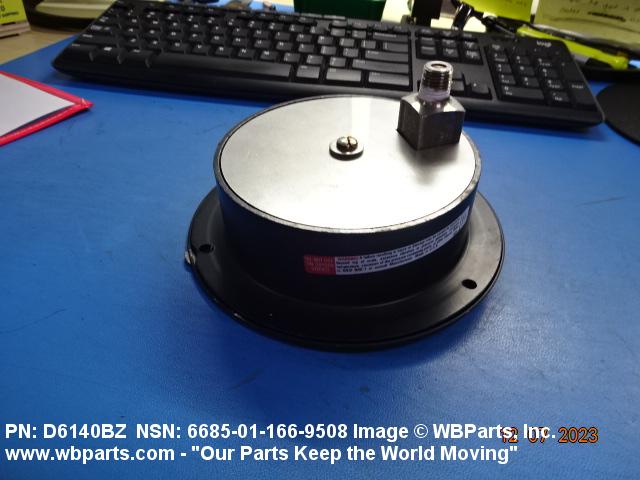

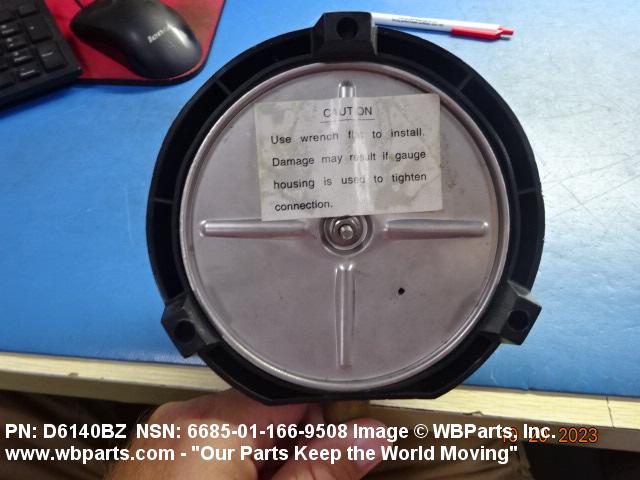

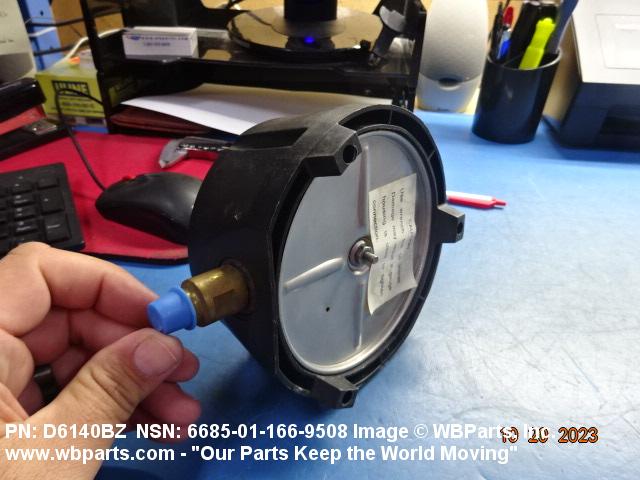

Drawings & Photos | NSN 6685-01-166-9508
Demand History | NSN 6685-01-166-9508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-166-9508 | 2024-09-251 | 1 | United States |
| D6140BZ | 2024-04-103 | 1 | United States |
| 6685-01-166-9508 | 2024-01-09 | 2 | US |
| 6685-01-166-9508 | 2023-10-284 | 1 | United States |
| 6685-01-166-9508 | 2021-06-180 | 1 | US |
| 6685-01-166-9508 | 2018-03-78 | 2 | US |
| 6685-01-166-9508 | 2018-03-74 | 1 | US |
| 6685-01-166-9508 | 2014-04-114 | 1 | US |
| 6685-01-166-9508 | 2010-04-116 | 17 | DIBBS |
| 6685-01-166-9508 | 2010-04-102 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-166-9508
Technical Data | NSN 6685-01-166-9508
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 15.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | PORM 1/4 PCT FULL RANGE |
| GRADUATION UNIT | 1.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 0.05 POUNDS PER SQUARE INCH |

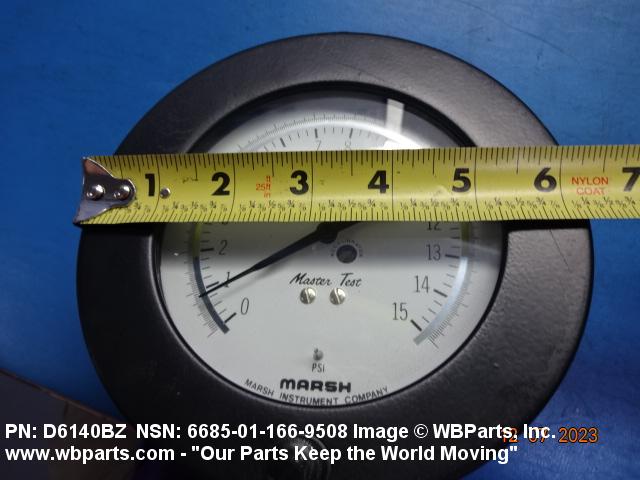

| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| CASE MATERIAL | STEEL, ALLOY |
| CASE SURFACE TREATMENT | ENAMEL, BLACK |
| OVERALL DIAMETER | 6.310 INCHES NOMINAL |
| OVERALL DEPTH | 1.770 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | LOWER |

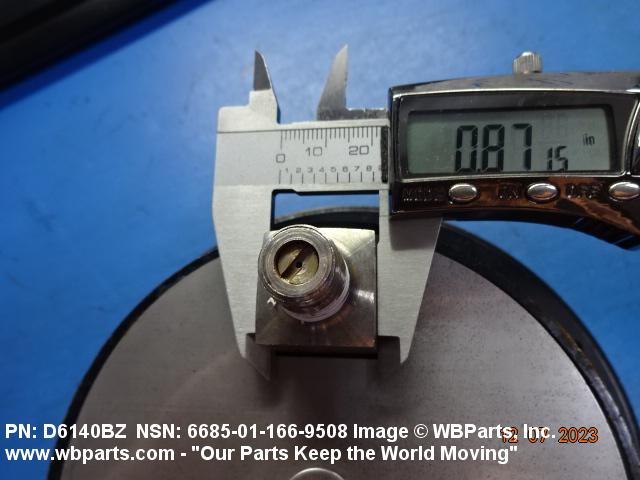

| CONNECTION SIZE | 0.250 IN. NPT DIA |
| MOUNTING METHOD | FLUSH |

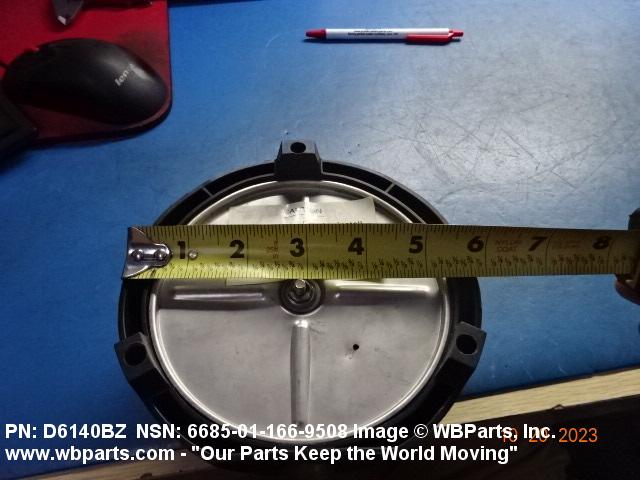

| BOLT CIRCLE DIAMETER | 5.680 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III END ITEM IDENTIFICATION | SUPPORT EQUIPMENT,B-1 AIRCRAFT |
| MANUFACTURERS CODE | 38508 |
| DESIGN CONTROL REFERENCE | D6140BZ |
Restrictions/Controls & Freight Information | NSN 6685-01-166-9508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-166-9508
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
