NSN 6685-01-158-0975 41GHV00LA10Y, 41GH-V00L-A10Y, 41GHVOOLA10Y
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-158-0975 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 41GHV00LA10Y, 41GH-V00L-A10Y, 41GHVOOLA10Y, 41GH-VOOL-A10Y, 41GHY00LA10Y, 41GH-Y00L-A10Y, 6685-01-158-0975, 01-158-0975, 6685011580975, 011580975
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 17 JUL 1983 | 01-158-0975 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |

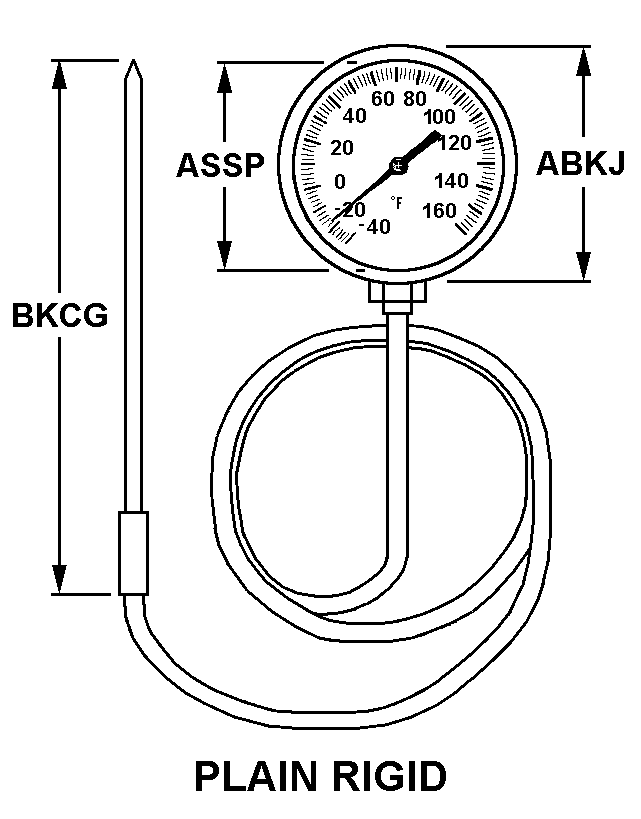

Drawings & Photos | NSN 6685-01-158-0975
Demand History | NSN 6685-01-158-0975
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 41GH-V00L-A10Y | 2024-10-290 | 7 | DIBBS |
| 41GH-V00L-A10Y | 2024-05-142 | 5 | DIBBS |
| 41GH-V00L-A10Y | 2023-08-221 | 7 | DIBBS |
| 41GH-V00L-A10Y | 2023-07-187 | 2 | DIBBS |
| 41GH-V00L-A10Y | 2023-06-162 | 2 | DIBBS |
| 41GH-V00L-A10Y | 2020-10-290 | 12 | DIBBS |
| 41GH-V00L-A10Y | 2020-10-281 | 12 | DIBBS |
| 41GH-V00L-A10Y | 2020-09-268 | 1 | DIBBS |
| 41GH-V00L-A10Y | 2020-08-231 | 1 | DIBBS |
| 41GH-V00L-A10Y | 2020-07-211 | 1 | DIBBS |
| 41GH-V00L-A10Y | 2020-06-155 | 9 | DIBBS |
| 6685-01-158-0975 | 2017-06-164 | 13 | DIBBS |
| 6685-01-158-0975 | 2014-10-281 | 6 | DIBBS |
| 6685-01-158-0975 | 2013-06-156 | 5 | DIBBS |
| 6685-01-158-0975 | 2012-07-193 | 3 | DIBBS |
| 6685-01-158-0975 | 2011-02-46 | 2 | DIBBS |
| 6685-01-158-0975 | 2010-11-305 | 5 | DIBBS |
| 6685-01-158-0975 | 2010-10-279 | 4 | DIBBS |
| 6685-01-158-0975 | 2009-10-278 | 2 | DIBBS |
| 6685-01-158-0975 | 2009-04-106 | 4 | DIBBS |
| 6685-01-158-0975 | 2009-02-51 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-158-0975
Technical Data | NSN 6685-01-158-0975
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | 40.000 TO 180.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | D1 PLAIN RIGID |
| BULB TIP LENGTH | 18.000 INCHES NOMINAL |
| DIAL DIAMETER | 4.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| FLEXIBLE TUBE LENGTH | 120.000 INCHES NOMINAL |
| ACTUATING MEDIUM | LIQUID |
| SPECIAL FEATURES | RED SET HAND |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON YELLOW BACKGROUND |
| MANUFACTURERS CODE | 049X3 |
| DESIGN CONTROL REFERENCE | 41GH-V00L-A10Y |
Restrictions/Controls & Freight Information | NSN 6685-01-158-0975
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-158-0975
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
