Product Details | ELECTRICAL RESISTANCE TEMPERATURE TRANSMITTER

6685-01-105-8351 A device having a temperature sensing element whose electrical resistance varies with a change in temperature. It is designed to transmit information relative to temperature to an INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE. It may be a component part of a THERMOMETER, INDICATING, RESISTANCE; THERMOMETER, RECORDING, RESISTANCE. Excludes THERMOCOUPLE (as modified).

Part Alternates: E94N24S, E94-N24S, 893RANFSN000, 893RA-NFSN000, 1891420, 6685-01-105-8351, 01-105-8351, 6685011058351, 011058351

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG) NSN Assign. NIIN
66 05 JAN 1981 01-105-8351

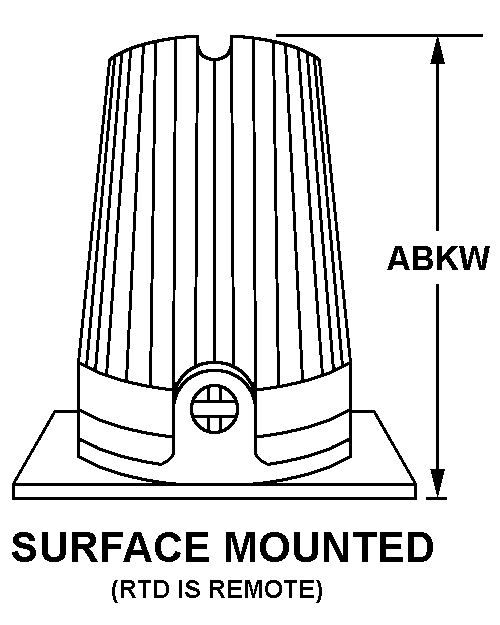

Drawings & Photos | NSN 6685-01-105-8351


Cross Reference | NSN 6685-01-105-8351

Part Number Cage Code Manufacturer
1891420 03956 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
893RA-NFSN000 23439 FOXBORO CO THE GOVERNMENT MARKET DEVELOPMENT DEPT
E94-N24S 23439 FOXBORO CO THE GOVERNMENT MARKET DEVELOPMENT DEPT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6685-01-105-8351

Technical Data | NSN 6685-01-105-8351

Characteristic Specifications
UNIT TYPE FLUSH
MATERIAL ALUMINUM OVERALL
STYLE DESIGNATOR F3 SURFACE MOUNTED
OVERALL HEIGHT 7.900 INCHES NOMINAL
OPERATING TEMP RANGE 0.0 TO 200.0 DEG FAHRENHEIT
TERMINAL TYPE AND QUANTITY 5 SCREW
ACCOMMODATED CONTACT TYPE AND QUANTITY 5 SCREW
MOUNTING FACILITY TYPE AND QUANTITY 4 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER 0.280 INCHES NOMINAL
PLATE WIDTH 4.800 INCHES NOMINAL
PLATE LENGTH 4.800 INCHES NOMINAL
SPECIAL FEATURES ITEM IS A NON-INDICATING TEMPERATURE TRANSMITTER THAT RECEIVES INPUT SIGNALS FROM RESISTANCE TEMPERATURE DETECTORS AND TRANSMITS A SIGNAL PROPORTIONAL TO THE MEASURES TEMPERATURE OR TEMPERATURE DIFFERENCE
III END ITEM IDENTIFICATION SHIP CONTROL SPERRY HYDRAULIC SYSTEM ONBOARD 270 FT C.G. VESSELS
MANUFACTURERS CODE 23439
DESIGN CONTROL REFERENCE 893RA-NFSN000
