NSN 6685-01-102-1649 MODP500LM, MODP500-LM, P500143072

Product Details | DIAL INDICATING PRESSURE GAGE

6685-01-102-1649 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: MODP500LM, MODP500-LM, P500143072, P500-143072, 143072, 143072A, 143072AP505, 5807821, 580782-1, 6685-01-102-1649, 01-102-1649, 6685011021649, 011021649

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	12 OCT 1980	01-102-1649	07428 ( GAGE, PRESSURE, DIAL INDICATING )

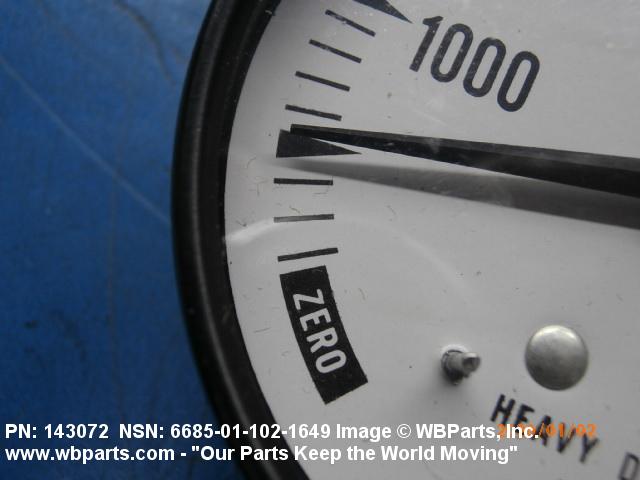

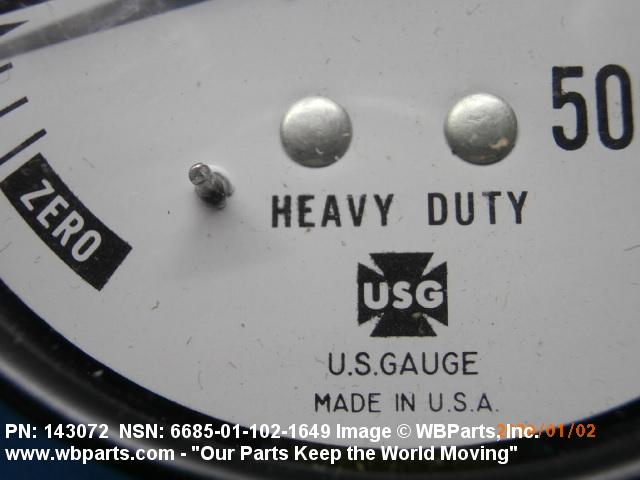

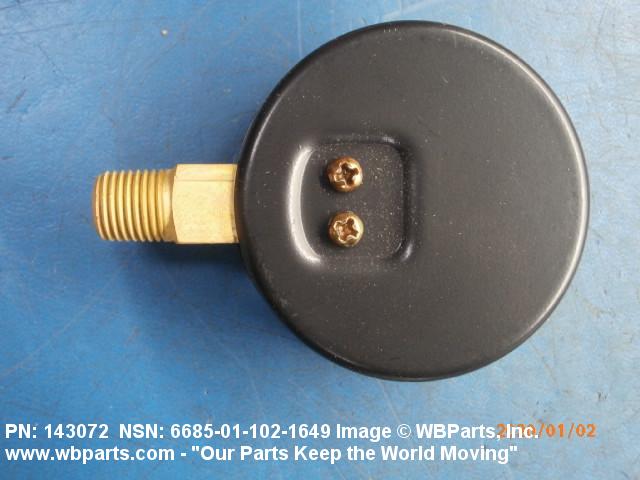

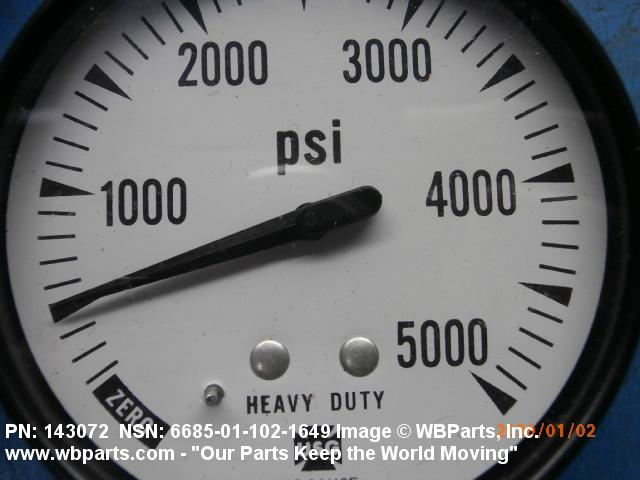

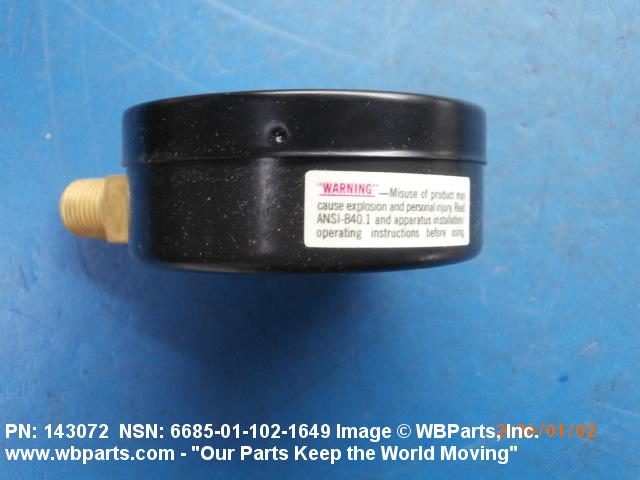

Drawings & Photos | NSN 6685-01-102-1649

Part Number	Request Date	QTY	Origin
143072A	2024-10-298	69	DIBBS
143072A	2023-07-197	72	DIBBS
143072A	2023-01-16	86	DIBBS
143072A	2022-06-173	72	DIBBS
6685-01-102-1649	2021-02-53	2	US
6685-01-102-1649	2019-12-350	3	United States
143072A	2019-05-139	10	DIBBS
6685-01-102-1649	2018-05-144	219	DIBBS
6685-01-102-1649	2017-04-96	165	DIBBS
6685-01-102-1649	2014-11-308	150	DIBBS
6685-01-102-1649	2009-12-349	243	DIBBS
6685-01-102-1649	2009-09-244	80	DIBBS

Cross Reference | NSN 6685-01-102-1649

Part Number	Cage Code	Manufacturer
143072	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
143072A	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
143072AP505	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
580782-1	75906	PACIFIC CONSOLIDATED INDUSTRIES LLC DBA PCI
MODP500-LM	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
P500-143072	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-01-102-1649

Compare

Related Products | NSN 6685-01-102-1649

6685-01-102-1650, 6685-01-102-1651, 6685-01-102-1652, 6685-01-102-2329, 6685-01-102-2330

Technical Data | NSN 6685-01-102-1649

Characteristic	Specifications
ACTUATION TYPE	BOURDON TUBE
ACTUATING ELEMENT MATERIAL	BERYLLIUM COPPER
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE

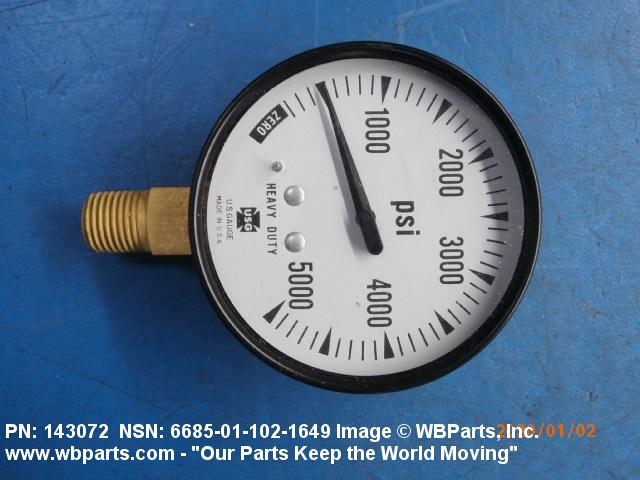

SCALE RANGE	0.0 TO 5000.0 POUNDS PRESSURE PER SQUARE INCH
GRADUATION UNIT	500.0 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	50.0 POUNDS PER SQUARE INCH

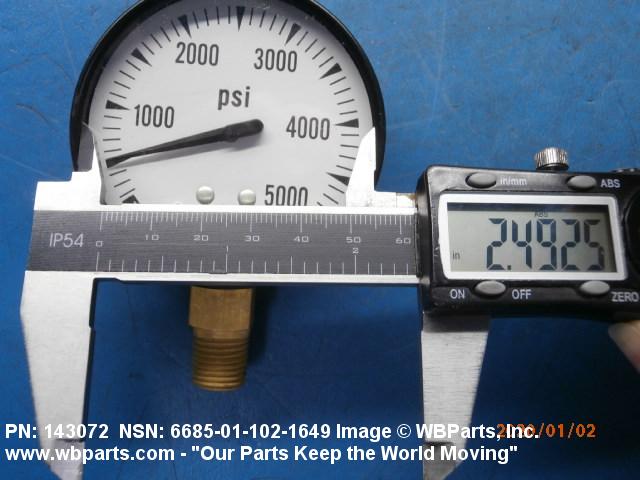

DIAL SIZE	2-1/2 IN. DIA
POINTER TYPE	INDICATING
ADJUSTABILITY	ADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	STEEL, DRAWN
CASE SURFACE TREATMENT	ENAMEL, BLACK

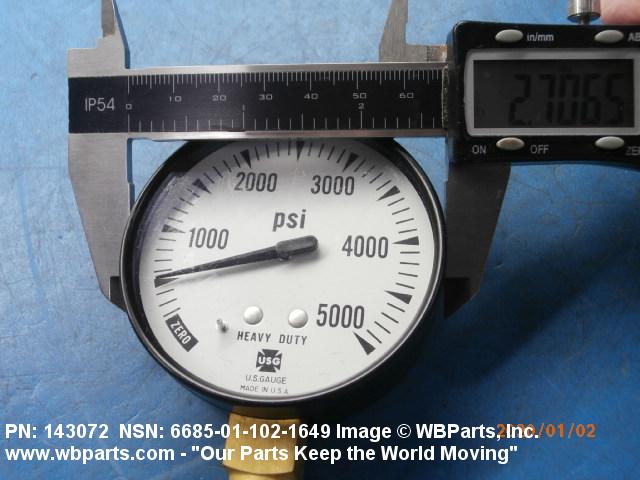

OVERALL DIAMETER	2.700 INCHES NOMINAL

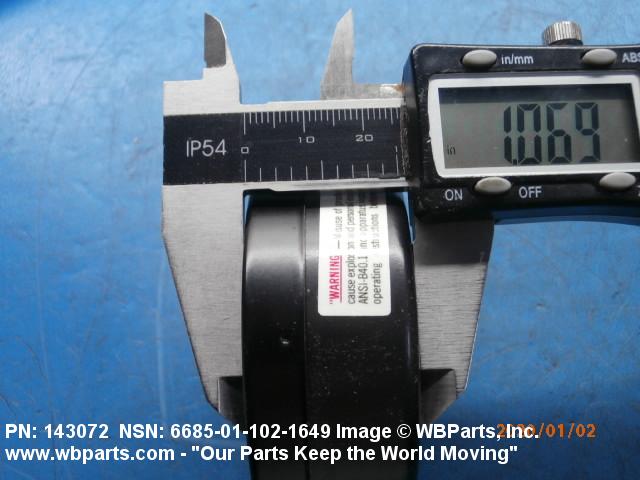

OVERALL DEPTH	1.130 INCHES NOMINAL
BEZEL TYPE	SNAP-ON
MATERIAL	STEEL, DRAWN
SURFACE TREATMENT	ENAMEL, BLACK
PROTECTIVE CRYSTAL MATERIAL	GLASS
CONNECTION QUANTITY	1
CONNECTION TYPE	EXTERNAL
CONNECTION LOCATION	LOWER

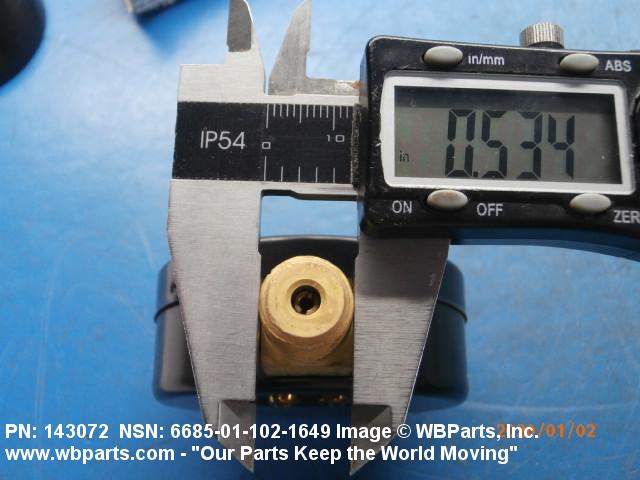

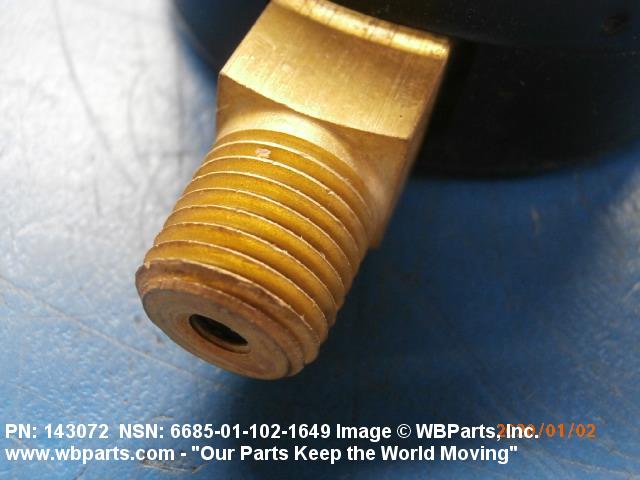

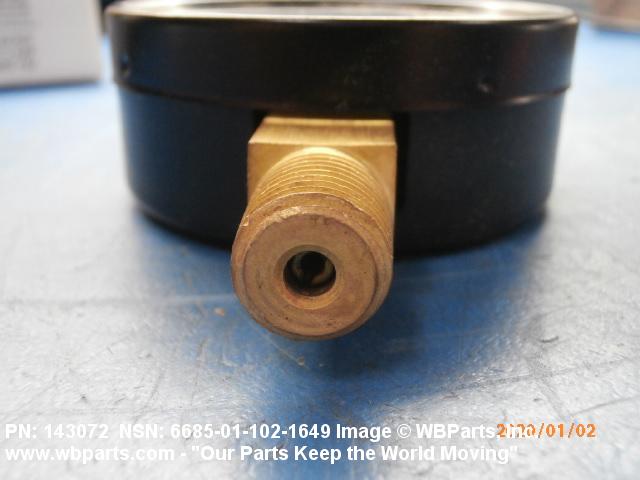

CONNECTION SIZE	0.250 IN. NPT DIA
MOUNTING METHOD	THREADED STEM
MOUNTING CONNECTION LOCATION	LOWER
CONNECTOR TYPE VENT	NOT PROVIDED
MANUFACTURERS CODE	61349
DESIGN CONTROL REFERENCE	143072AP505

Restrictions/Controls & Freight Information | NSN 6685-01-102-1649

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	653	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-01-102-1649

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
