NSN 6685-01-096-9490 J6048M003, J6048M-003, J6048MP
Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-096-9490 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: J6048M003, J6048M-003, J6048MP, 0L1008, 0L-1008, 1ABC00500AFA002, 1-ABC-00500-AFA-002, 50C00140027, 50C-0014-0027, 6685-01-096-9490, 01-096-9490, 6685010969490, 010969490
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JUL 1980 | 01-096-9490 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

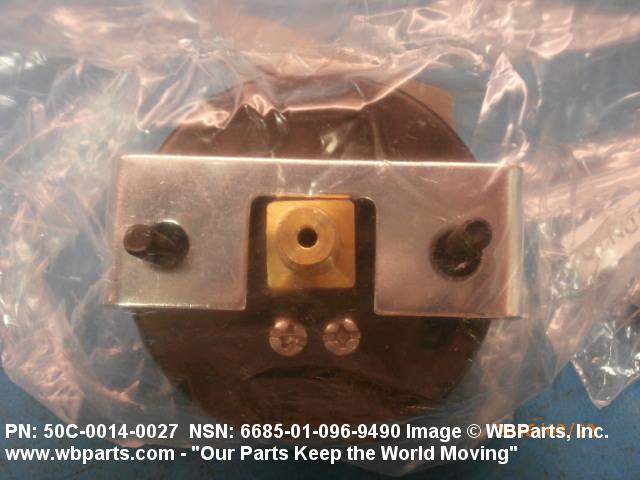

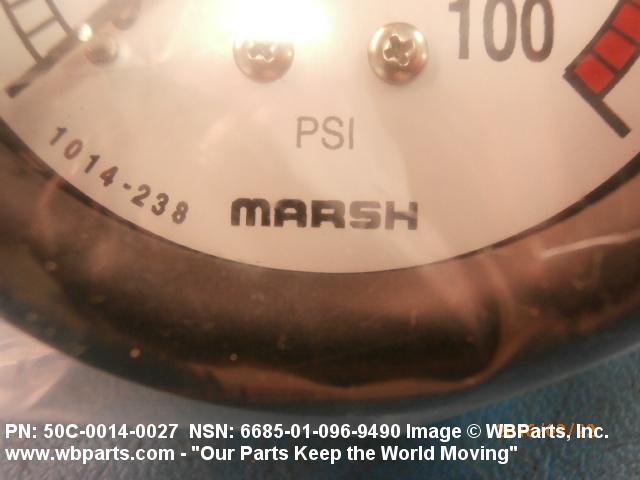

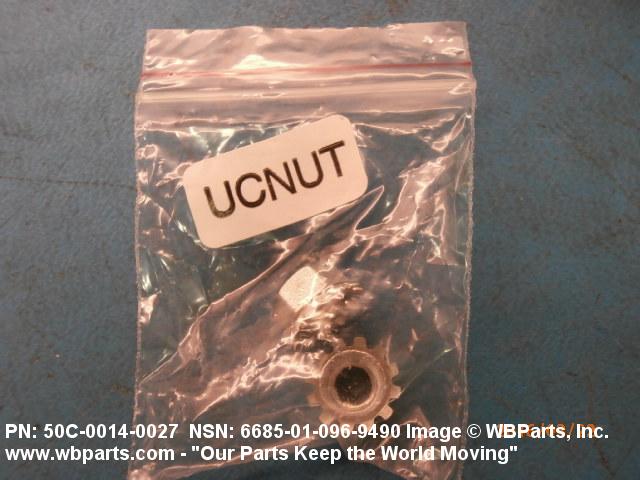

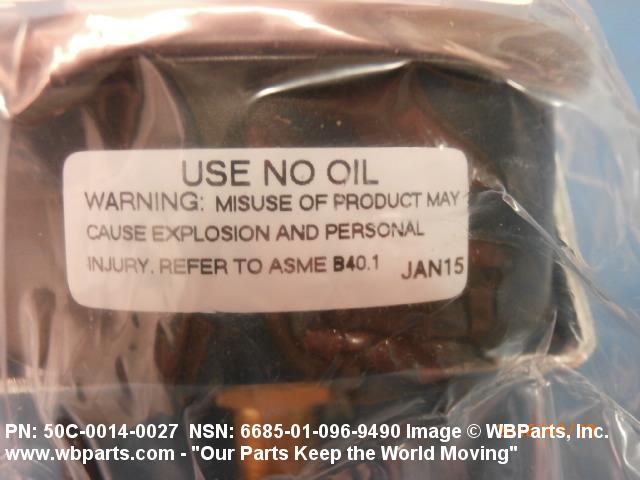

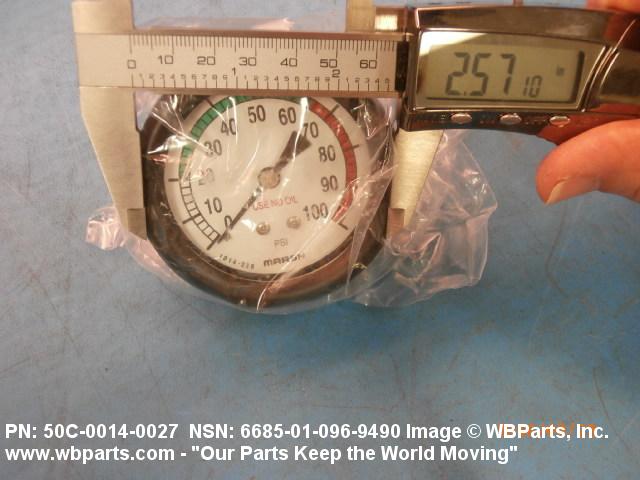

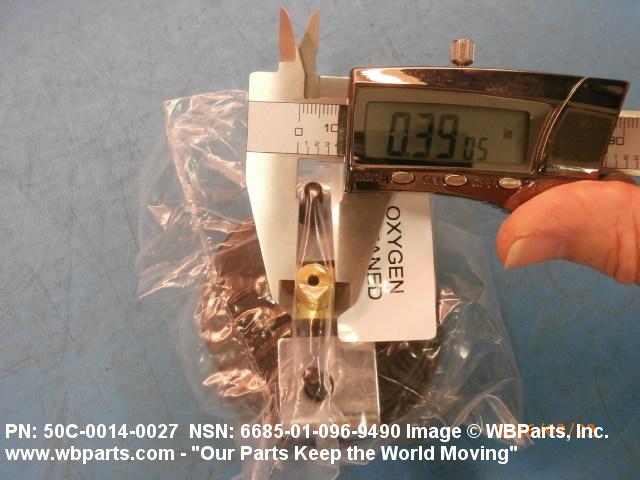

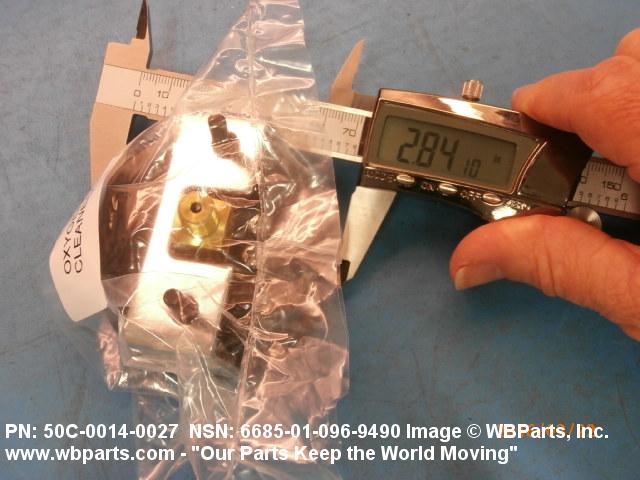

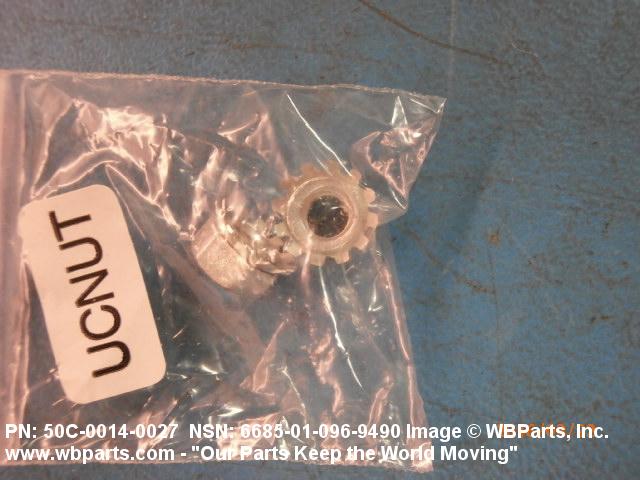

Drawings & Photos | NSN 6685-01-096-9490
Demand History | NSN 6685-01-096-9490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J6048M-003 | 2024-11-311 | 44 | DIBBS |
| 6685-01-096-9490 | 2024-08-241 | 1 | Canada |
| 6685-01-096-9490 | 2024-05-149 | 1 | AE |
| 6685-01-096-9490 | 2024-04-106 | 3 | BR |
| 6685-01-096-9490 | 2022-08-218 | 10 | Romania |
| 6685-01-096-9490 | 2020-10-280 | 1 | US |
| 6685-01-096-9490 | 2020-06-163 | 1 | US |
| 6685-01-096-9490 | 2018-03-66 | 2 | United States |
| 6685-01-096-9490 | 2018-03-66 | 327 | DIBBS |
| 6685-01-096-9490 | 2016-02-56 | 1 | us |
| 6685-01-096-9490 | 2016-02-41 | 1 | us |
| 50C00140027 | 2012-07-212 | 4 | United States |
| 6685-01-096-9490 | 2011-04-98 | 424 | DIBBS |
| 6685-01-096-9490 | 2010-05-133 | 75 | DIBBS |
| 6685-01-096-9490 | 2008-04-120 | 1 | United States |
Cross Reference | NSN 6685-01-096-9490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0L-1008 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 0L-1008 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 1-ABC-00500-AFA-002 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 1-ABC-00500-AFA-002 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 50C-0014-0027 | 19062 | ESSEX INDUSTRIES, INC. |
| J6048M-003 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| J6048M-003 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| J6048MP | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-096-9490
Related Products | NSN 6685-01-096-9490
Technical Data | NSN 6685-01-096-9490
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | COPPER ALLOY |
| SCALE TYPE | MULTIPLE AND CONCENTRIC ARC DIAL |
| SCALE NAME | POUNDS PRESSURE PSI AND KILOPASCALS |
| SCALE RANGE | 0.0 TO 100.0 PSI AND 0.0 TO 700 KPASCALS |
| SCALE ACCURACY | 2 PCT FULL SCALE |

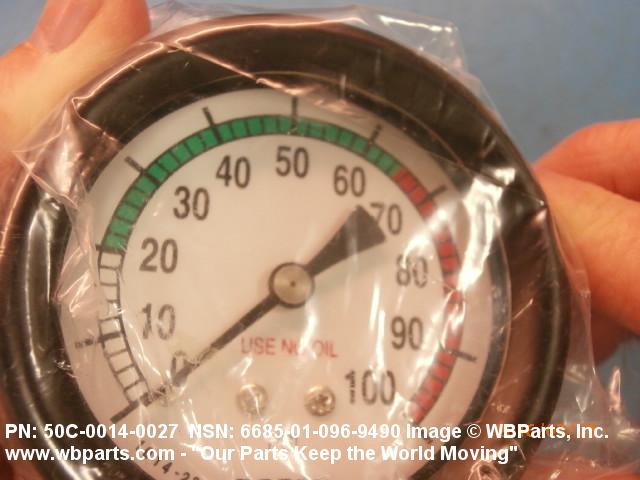

| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES,GREEN LINED FROM 20 TO 65 PSI,RED LINED FROM 65 TO 100 PSI,WHITE BACKGROUND |
| DIAL SIZE | 2-1/2 IN.DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | STEEL, DRAWN |
| OVERALL DIAMETER | 2.780 INCHES NOMINAL |

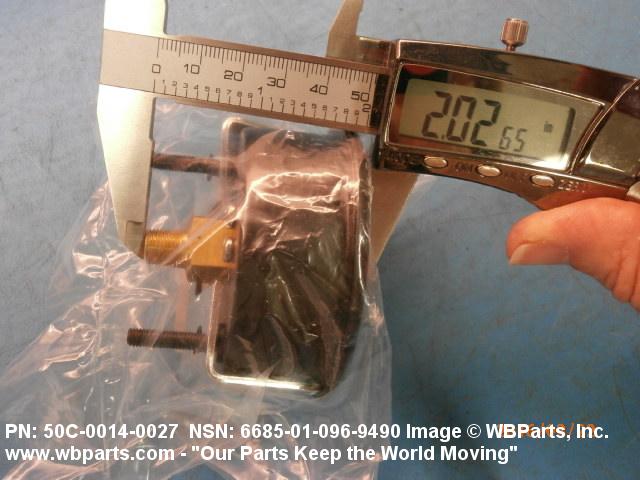

| OVERALL DEPTH | 2.040 INCHES NOMINAL |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK, CENTER |
| CONNECTION SIZE | 0.125 IN.NPT DIA |
| MOUNTING METHOD | FLUSH PANEL |
| MANUFACTURERS CODE | 38508 |
| DESIGN CONTROL REFERENCE | J6048M-003 |
Restrictions/Controls & Freight Information | NSN 6685-01-096-9490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-096-9490
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QF | TG:CHEMICAL AND GAS CYLINDERS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
