Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-01-061-7726 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 2100-00365, 41627Q, 6685-01-061-7726, 01-061-7726, 6685010617726, 210000365, 010617726
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 29 JUN 1978 | 01-061-7726 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-061-7726
Related Products | NSN 6685-01-061-7726
Technical Data | NSN 6685-01-061-7726
Characteristic | Specifications |
---|---|
SCALE TYPE | CONCENTRIC DIAL |
SCALE MEASUREMENT RANGE | 90.000 TO 212.000 DEG FAHRENHEIT |
MATERIAL | STEEL METER CASE COPPER BULB |

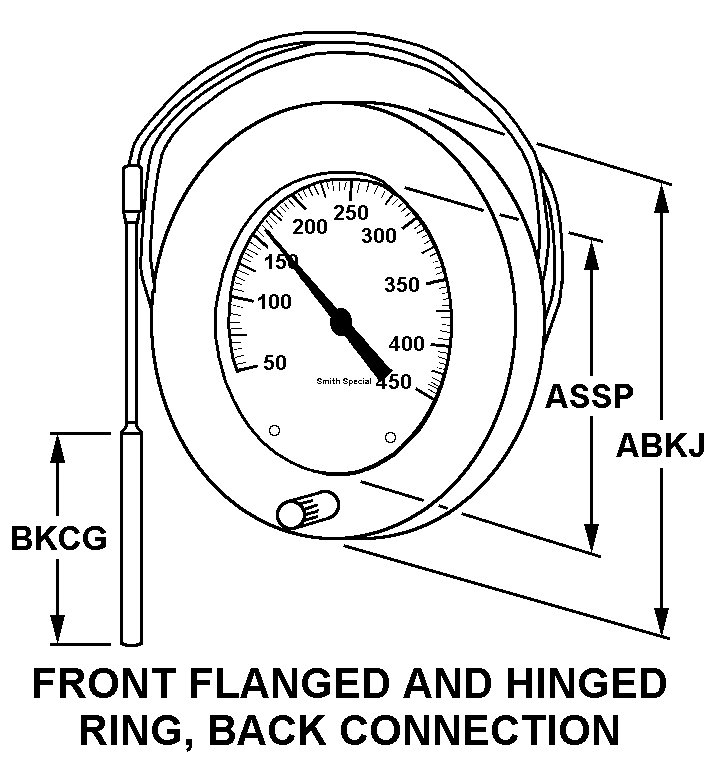

STYLE DESIGNATOR | D6 FRONT FLANGED AND HINGED RING, BACK CONNECTION |
BULB TIP LENGTH | 1.062 INCHES NOMINAL |
CASE DIAMETER | 2.250 INCHES NOMINAL |
DIAL DIAMETER | 1.875 INCHES NOMINAL |
POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
BULB TYPE | FLEXIBLE CAPILLARY |
BULB QUANTITY | 1 |
BULB STYLE | K7 PLAIN BULB W/BENDABLE EXTENSION |
ACTIVE PORTION LENGTH | 3.000 INCHES NOMINAL |
ACTIVE PORTION DIAMETER | 0.438 INCHES NOMINAL |
BULB OVERALL LENGTH | 101.000 INCHES NOMINAL |
EXTENSION NECK LENGTH | 98.000 INCHES NOMINAL |
BULB CONNECTION TYPE | UNION |
FLEXIBLE TUBE LENGTH | 98.000 INCHES NOMINAL |
ACTUATING MEDIUM | METHYL CHLORIDE |
MOUNTING BOLT CIRCLE DIAMETER | 1.600 INCHES NOMINAL |
CASE TYPE | DUSTPROOF |
III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
III SCALE ACCURACY RATING | 10 PCT |
III SCALE SMALLEST INCREMENT | 20.0 DEG FAHRENHEIT |
