NSN 6685-01-059-6266 SG4NN60PWRONAG, MILG18997, MIL-G-18997
Product Details | DIAL INDICATING PRESSURE GAGE
6685-01-059-6266 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SG4NN60PWRONAG, MILG18997, MIL-G-18997, 218728 , 6685-01-059-6266, 01-059-6266, 6685010596266, 010596266
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 APR 1978 | 01-059-6266 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

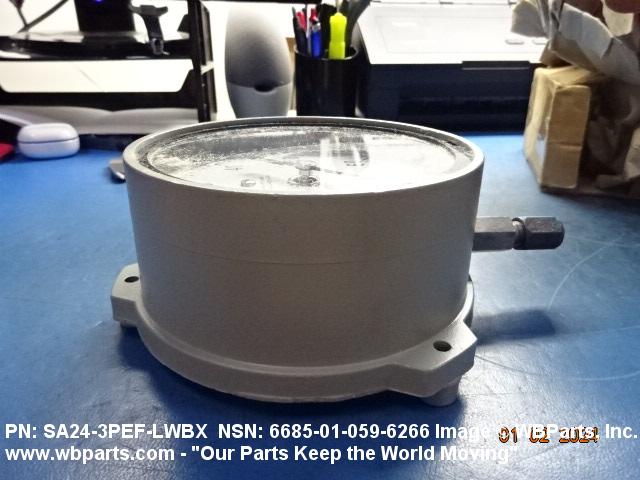

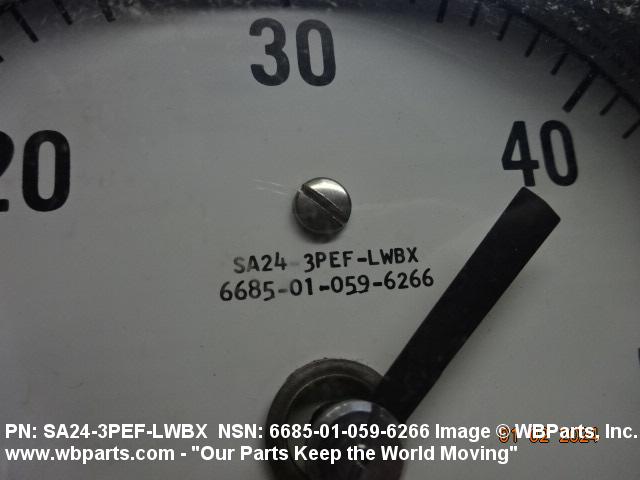

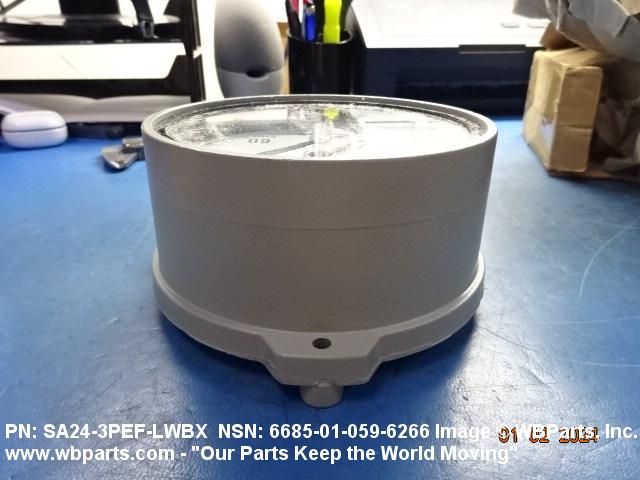

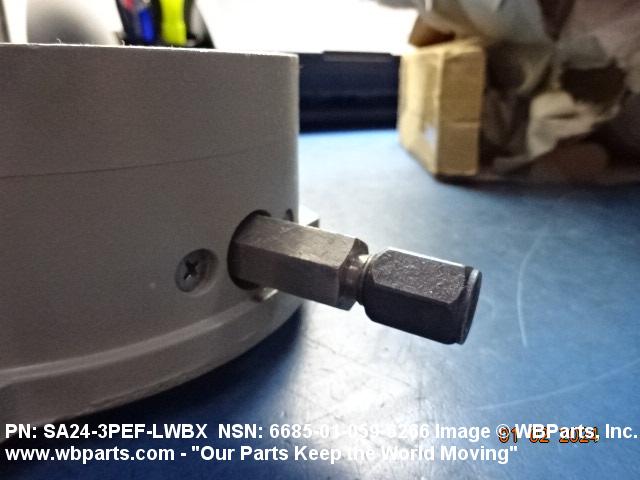

Drawings & Photos | NSN 6685-01-059-6266
Demand History | NSN 6685-01-059-6266
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-059-6266 | 2023-12-15 | 1 | United States |
| 6685-01-059-6266 | 2023-06-19 | 1 | United States |
| 6685-01-059-6266 | 2022-07-06 | 19 | DIBBS |
| 6685-01-059-6266 | 2022-02-09 | 5 | United States |
| MILG18997 | 2021-04-19 | 8 | US |
| 6685-01-059-6266 | 2015-07-14 | 1 | US |
| 6685-01-059-6266 | 2014-10-24 | 1 | DIBBS-RFPs |
| 6685-01-059-6266 | 2014-07-27 | 55 | DIBBS |
| 6685-01-059-6266 | 2014-04-03 | 81 | DIBBS |
| 6685-01-059-6266 | 2011-02-08 | 232 | DIBBS |
| 6685-01-059-6266 | 2010-03-05 | 98 | DIBBS |
| 6685-01-059-6266 | 2010-01-26 | 27 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-059-6266
Related Products | NSN 6685-01-059-6266
Technical Data | NSN 6685-01-059-6266
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL COPPER ALLOY, QQ-N-286, CLASS A |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |

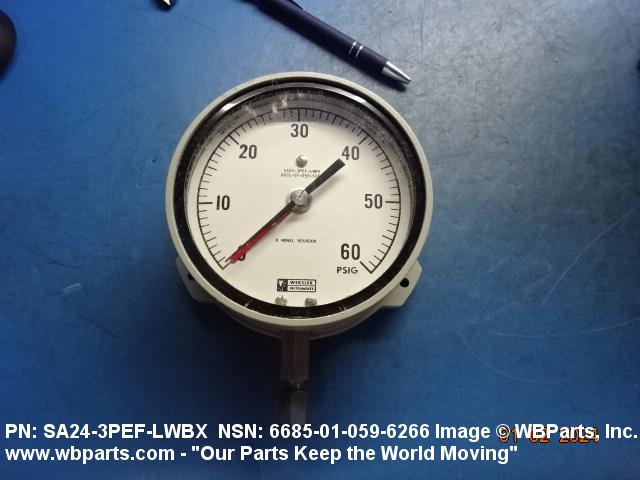

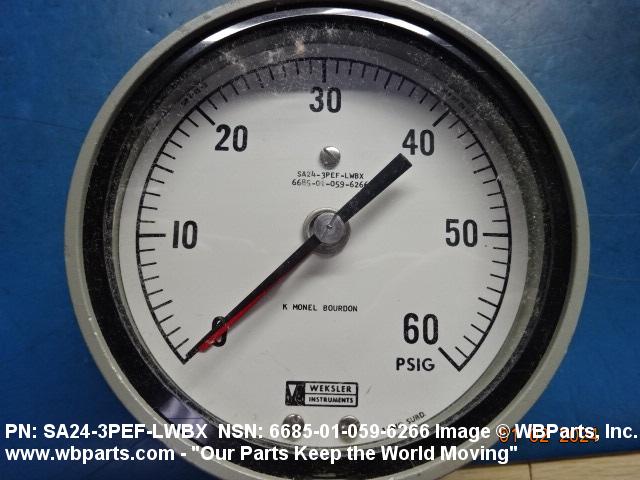

| SCALE RANGE | 0.0 TO 60.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | PORM 1 PCT OF SCALE RANGE |
| GRADUATION UNIT | 5.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 1.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | WHITE BACKGROUND,BLACK GRADUATIONS AND MARKINGS |

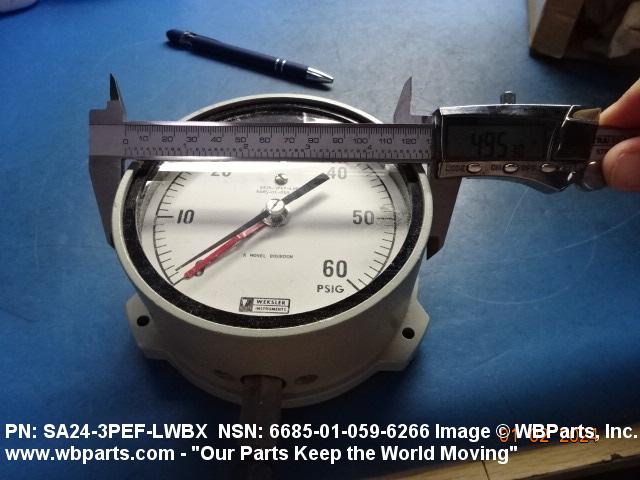

| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ANODIZED, MIL-C-5541 AND ENAMEL, GRAY |
| OVERALL DIAMETER | 5.593 INCHES NOMINAL |
| OVERALL DEPTH | 2.500 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |

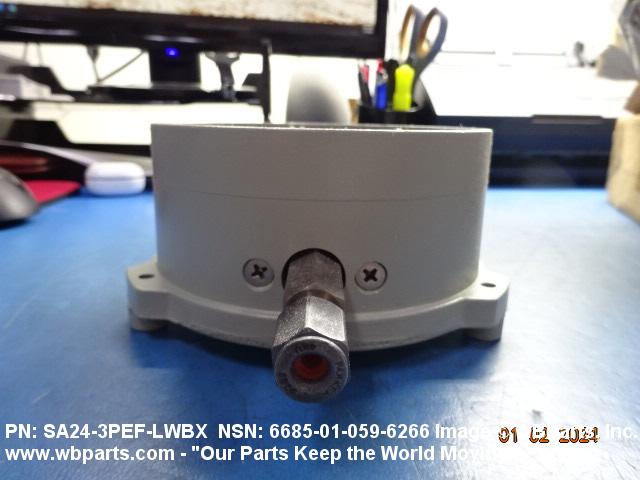

| CONNECTION LOCATION | BOTTOM |
| CONNECTION SIZE | 0.250 IN. TUBE |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 5.375 INCHES NOMINAL |

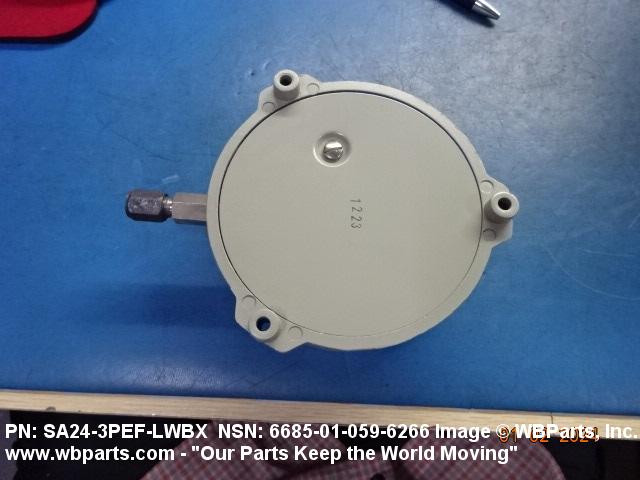

| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-18997 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SG4NN60PWRONAG |
Restrictions/Controls & Freight Information | NSN 6685-01-059-6266
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-059-6266
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
