NSN 6685-01-058-9047 WEL14A602R, WEL14A-602R, 01-058-9047
Product Details | THERMOWELL
6685-01-058-9047 A pressure-tight receptacle mounted to an item by external threads, flange and/or welding. It is designed to hold temperature sensing devices, such as, termocouples, resistance temperature detectors, and thermometers.
Part Alternates: WEL14A602R, WEL14A-602R, 6685-01-058-9047, 01-058-9047, 6685010589047, 010589047
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 03 APR 1978 | 01-058-9047 | 40096 ( THERMOWELL ) |
Drawings & Photos | NSN 6685-01-058-9047
Demand History | NSN 6685-01-058-9047
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WEL14A-602R | 2023-02-33 | 22 | DIBBS |
| WEL14A-602R | 2022-06-159 | 22 | DIBBS |
| WEL14A-602R | 2022-06-153 | 4 | DIBBS |
| 6685-01-058-9047 | 2014-03-72 | 13 | DIBBS |
| 6685-01-058-9047 | 2013-03-86 | 55 | DIBBS |
| 6685-01-058-9047 | 2013-03-78 | 55 | DIBBS |
| 6685-01-058-9047 | 2010-01-29 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-058-9047
Related Products | NSN 6685-01-058-9047
Technical Data | NSN 6685-01-058-9047
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |

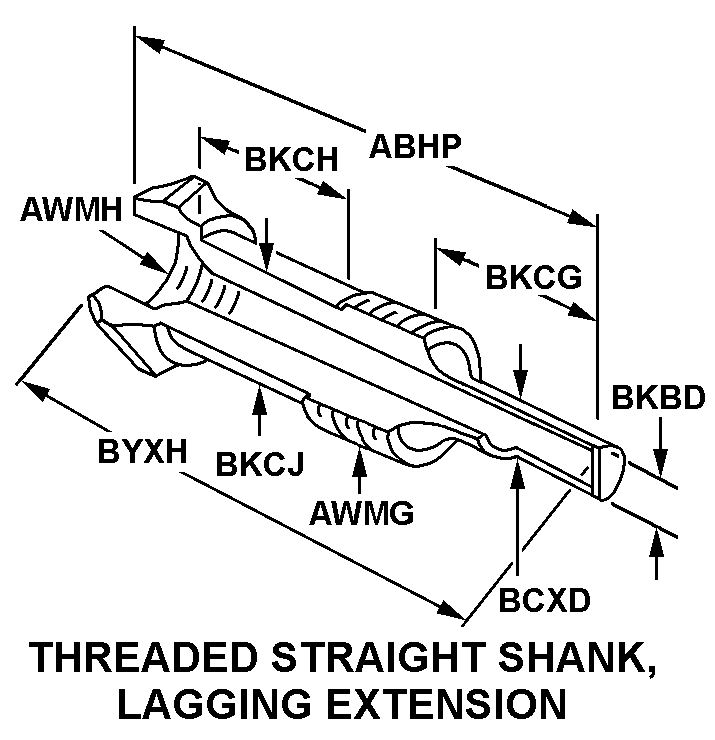

| STYLE DESIGNATOR | C THREADED STRAIGHT SHANK, LAGGING EXTENSION |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 1/2 IN. NPT |
| BULB TIP LENGTH | 4.938 INCHES NOMINAL |
| INTERNAL THREAD SIZE | ANY ACCEPTABLE |
| BULB TIP OUTSIDE DIAMETER | 0.430 INCHES NOMINAL |
| EXTENSION NECK LENGTH | ANY ACCEPTABLE |
| EXTENSION NECK DIAMETER | ANY ACCEPTABLE |
| BORE INSIDE DIAMETER | ANY ACCEPTABLE |
| STRAIGHT BORE DEPTH | ANY ACCEPTABLE |
| SPECIAL FEATURES | REMOVABLE BRASS CUP AFFIXED W/CHAIN:NOT PROVIDED; |
Restrictions/Controls & Freight Information | NSN 6685-01-058-9047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063340 | THERMOCOUPLES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-058-9047
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
