NSN 6685-01-048-4585 T70009B, 802P4AS, 802P-4AS
Product Details | INDICATING TEMPERATURE CONTROL
6685-01-048-4585 A device composed of one or more control-actuating mechanisms, one or more switchs, and graduated scales or other indicators. It is designed to measure and control temperature in ovens, furnaces, and the like, through perception of a sensing element connected to the control. Excludes SWITCH, THERMOSTATIC(00451) and THERMOSTAT, FLOW CONTROL(16516).
Part Alternates: T70009B, 802P4AS, 802P-4AS, 6685-01-048-4585, 01-048-4585, 6685010484585, 010484585
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 26 SEP 1977 | 01-048-4585 | 05662 ( CONTROL, TEMPERATURE, INDICATING ) |

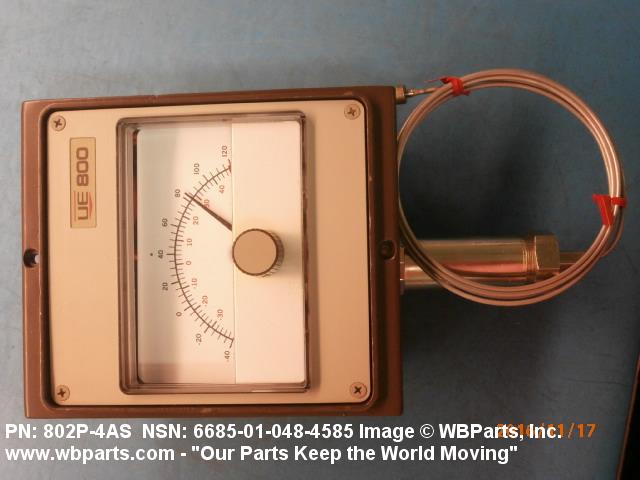

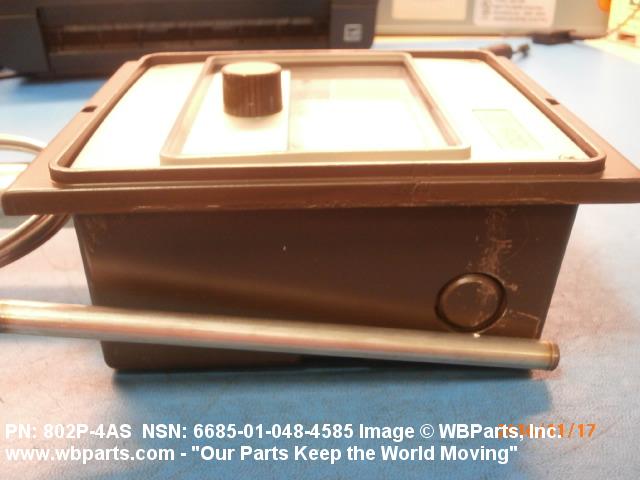

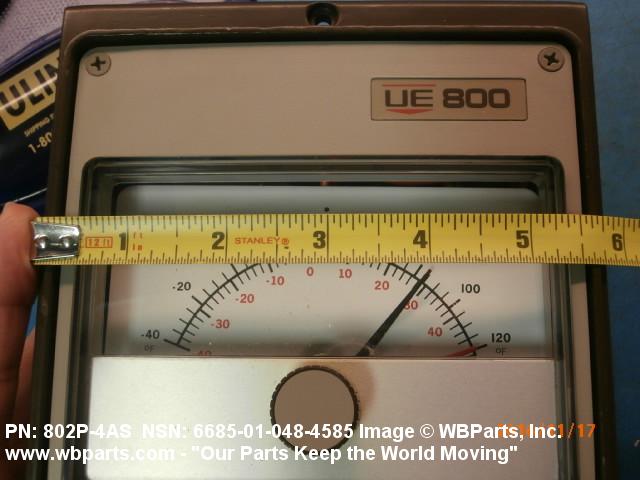

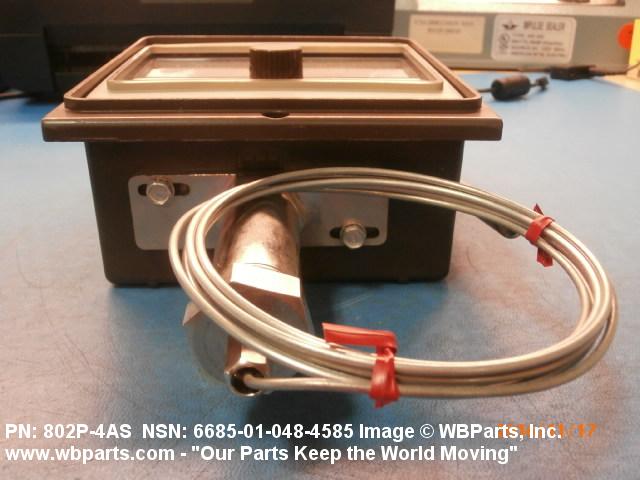

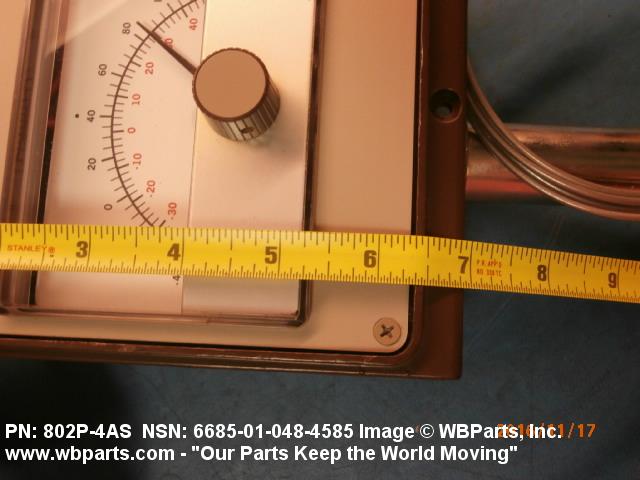

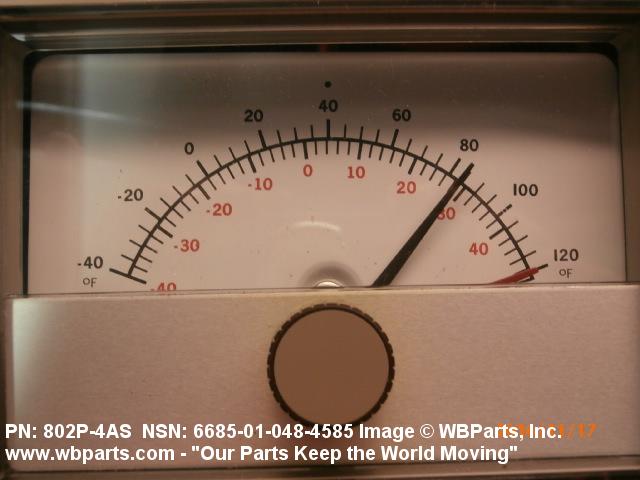

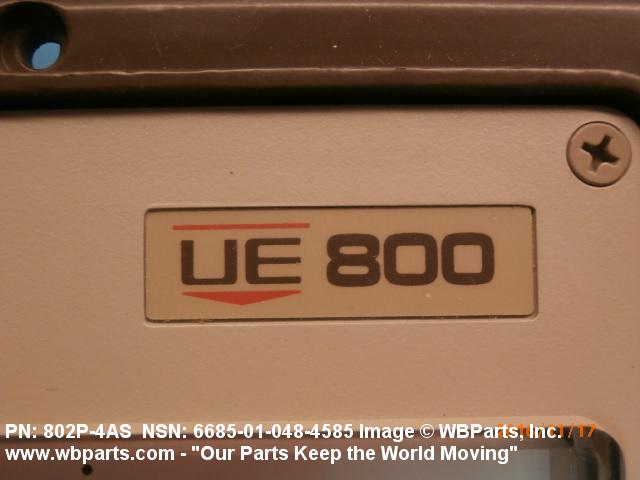

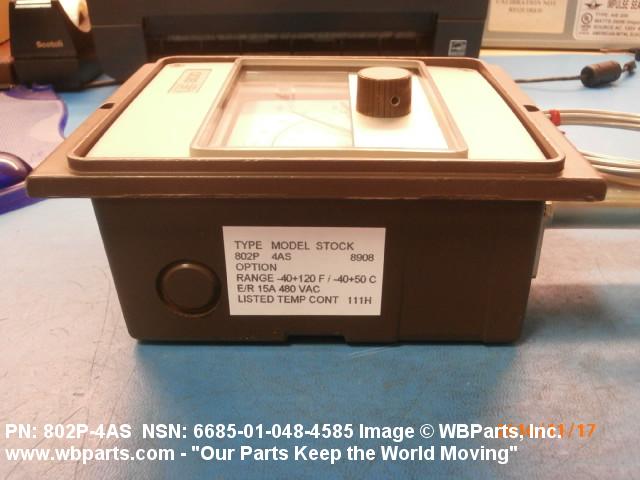

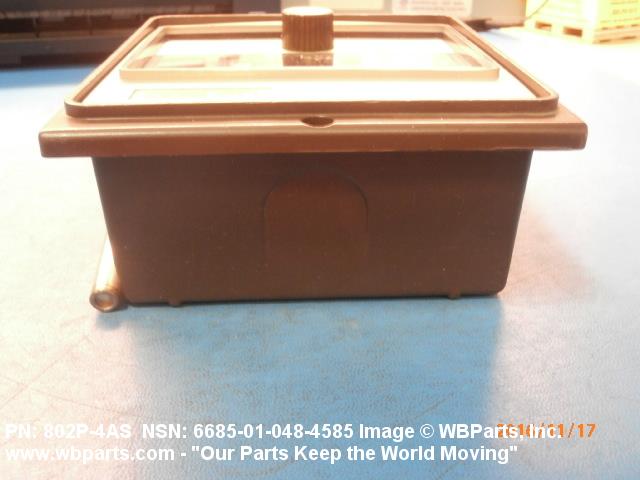

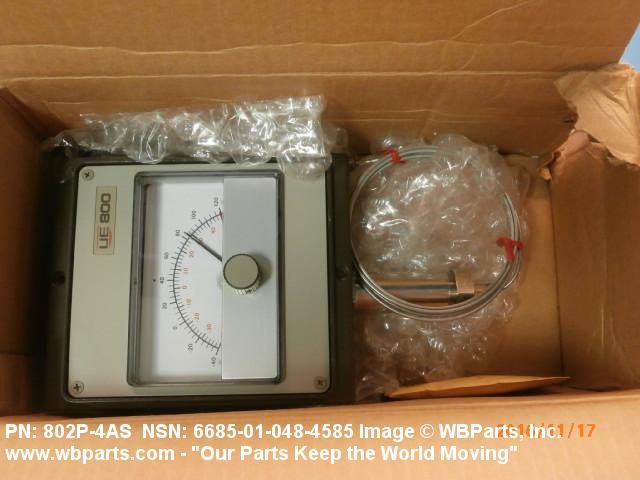

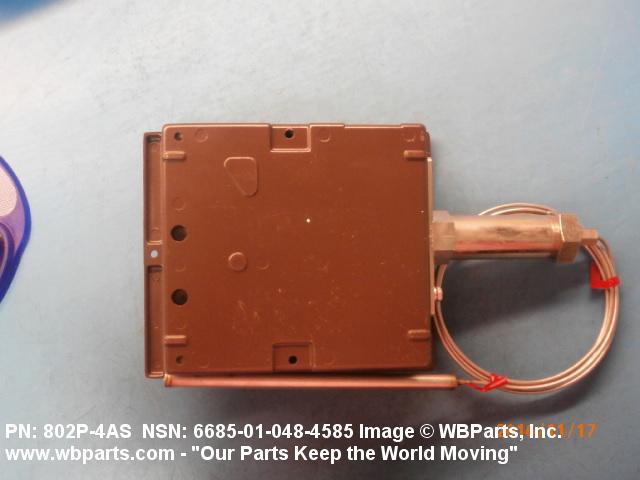

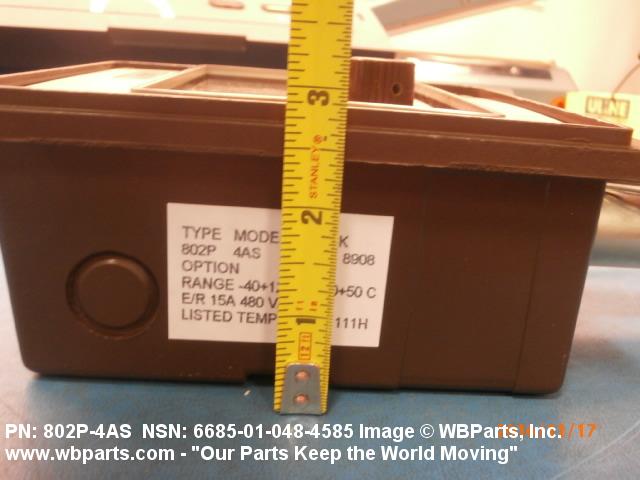

Drawings & Photos | NSN 6685-01-048-4585
Demand History | NSN 6685-01-048-4585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-048-4585 | 2016-11-306 | 1 | Taiwan |
| 6685-01-048-4585 | 2009-10-299 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-048-4585
Technical Data | NSN 6685-01-048-4585
| Characteristic | Specifications |
|---|---|
| POWER SOURCE | EXTERNAL |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CURRENT RATING IN AMPS | 10.0 |
| MAXIMUM OVERALL LENGTH | 5.812 INCHES |
| MAXIMUM OVERALL WIDTH | 2.781 INCHES |
| MAXIMUM OVERALL HEIGHT | 6.875 INCHES |
| SENSING ELEMENT TYPE AND LOCATION | BULB REMOTE |
| OPERATING RANGE | MINUS 40 TO PLUS 120 DEG F |
| MANUFACTURERS CODE | 88234 |
| DESIGN CONTROL REFERENCE | 802P-4AS |
Restrictions/Controls & Freight Information | NSN 6685-01-048-4585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061480 | CONTROLLERS/PARTS NOI O/T PLASTIC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-048-4585
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
