NSN 6685-01-048-0753 G3996, G-3996, 100049

Product Details | DIAL INDICATING PRESSURE GAGE

6685-01-048-0753 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: G3996, G-3996, 100049, 1000-49, 107, 10-7, 19950920, 639AS658, 6685-01-048-0753, 01-048-0753, 6685010480753, 010480753

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	18 SEP 1977	01-048-0753	07428 ( GAGE, PRESSURE, DIAL INDICATING )

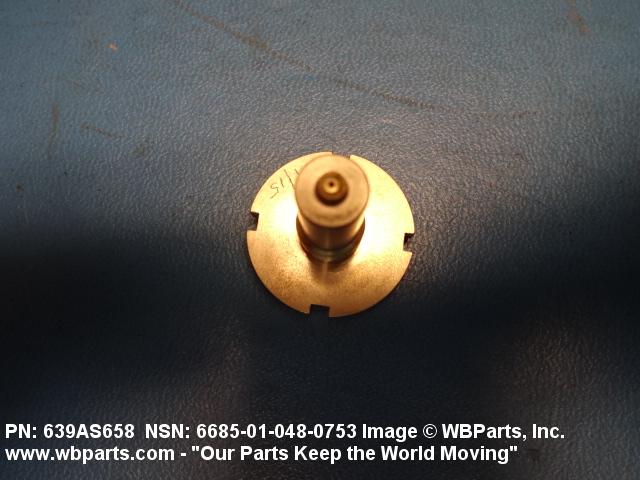

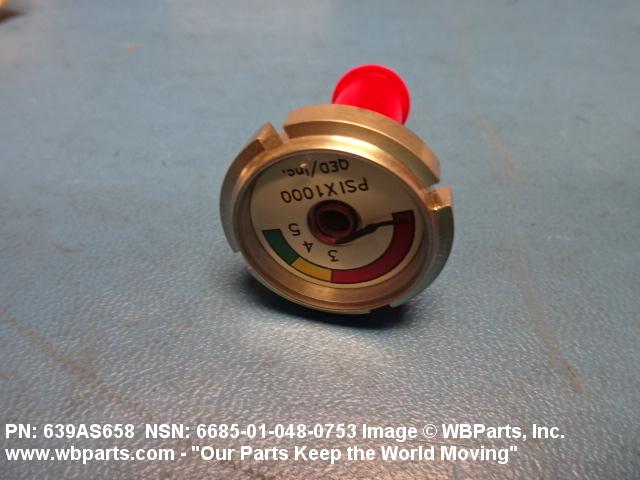

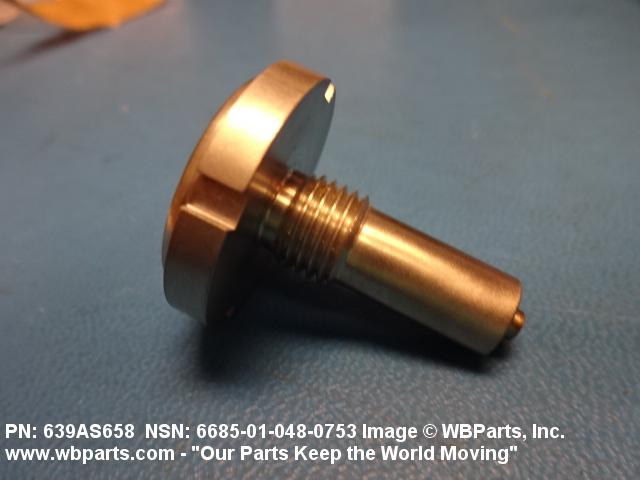

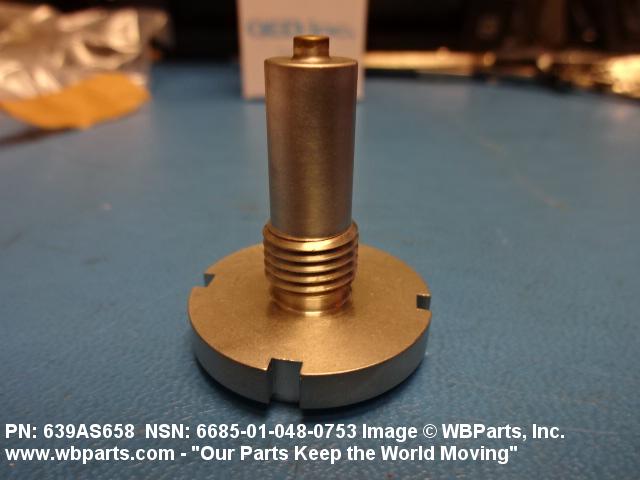

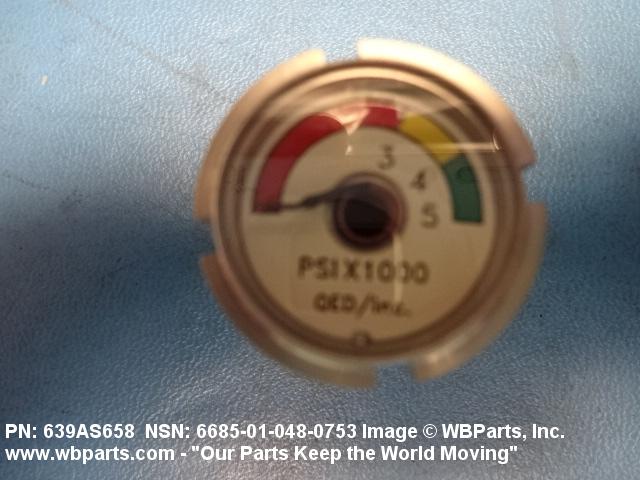

Drawings & Photos | NSN 6685-01-048-0753

Part Number	Request Date	QTY	Origin
6685-01-048-0753	2024-09-11	100	US
6685-01-048-0753	2023-05-25	338	DIBBS
6685-01-048-0753	2023-01-09	75	Taiwan
6685-01-048-0753	2022-11-17	20	US
639AS658	2022-10-24	20	Greece
6685-01-048-0753	2018-07-26	202	United States
6685-01-048-0753	2017-10-25	202	DIBBS
6685-01-048-0753	2017-10-17	202	DIBBS
6685-01-048-0753	2017-07-10	175	DIBBS
6685-01-048-0753	2017-07-02	175	DIBBS
6685-01-048-0753	2017-06-22	175	DIBBS
6685-01-048-0753	2017-04-13	83	DIBBS
6685-01-048-0753	2017-04-05	83	DIBBS
6685-01-048-0753	2017-03-03	134	DIBBS
6685-01-048-0753	2017-02-23	134	DIBBS
6685-01-048-0753	2014-06-05	1518	DIBBS
6685-01-048-0753	2014-05-28	1518	DIBBS
6685-01-048-0753	2014-03-31	78	DIBBS
6685-01-048-0753	2014-03-23	78	DIBBS
6685-01-048-0753	2013-11-12	1518	DIBBS
6685-01-048-0753	2013-02-24	1517	DIBBS
107	2012-06-19	1	TR
6685-01-048-0753	2010-12-07	2	US
6685-01-048-0753	2010-10-20	3400	DIBBS
6685-01-048-0753	2010-07-08	203	DIBBS
6685-01-048-0753	2009-02-23	117	DIBBS
6685-01-048-0753	2009-02-12	168	DIBBS
6685-01-048-0753	2008-09-23	700	DIBBS
6685-01-048-0753	2008-09-23	181	DIBBS

Cross Reference | NSN 6685-01-048-0753

Part Number	Cage Code	Manufacturer
10-7	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
1000-49	30003	NAVAL AIR SYSTEMS COMMAND
19950920	05165	NATIONAL-STANDARD CO LOS ANGELES PLANT
19950920	05167	PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN
19950920	45402	PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN TECHS
639AS658	30003	NAVAL AIR SYSTEMS COMMAND
G-3996	34830	ROGERSON KRATOS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-01-048-0753

Compare

Related Products | NSN 6685-01-048-0753

6685-01-048-0754, 6685-01-048-0755, 6685-01-048-2246, 6685-01-048-2451, 6685-01-048-2452

Technical Data | NSN 6685-01-048-0753

Characteristic	Specifications
ACTUATION TYPE	BOURDON TUBE
ACTUATING ELEMENT MATERIAL	BERYLLIUM COPPER
SCALE TYPE	SINGLE
SCALE NAME	POUNDS PRESSURE
SCALE RANGE	0.0 TO 5000.0 POUNDS PRESSURE PER SQUARE INCH
SCALE ACCURACY	1 PCT FULL SCALE
GRADUATION UNIT	ANY ACCEPTABLE
SCALE SMALLEST INCREMENT	ANY ACCEPTABLE
SCALE INSCRIPTION/BACKGROUND COLOR	BLACK FIGURES,RED COLOR BAND FROM 0 TO 3000,YELLOW COLOR BAND FROM 3000 TO 4000,GREEN COLOR BAND FROM 4000 TO 5000,WHITE BACKGROUND
DIAL SIZE	1 IN. DIA
SCALE MARKING	PSI X 1000
POINTER TYPE	INDICATING
ADJUSTABILITY	NONADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	STEEL, ASTM A276
CASE SURFACE TREATMENT	PASSIVATED
OVERALL DIAMETER	1.500 INCHES NOMINAL
OVERALL DEPTH	0.250 INCHES NOMINAL
PROTECTIVE CRYSTAL MATERIAL	PLASTIC, ACRYLIC
CONNECTION QUANTITY	1
CONNECTION TYPE	EXTERNAL
CONNECTION LOCATION	BACK, CENTER
CONNECTION SIZE	0.437 IN. LG
MOUNTING METHOD	CASE
MOUNTING CONNECTION LOCATION	TOP AND BOTTOM AND LEFT SIDE AND RIGHT SIDE
MOUNTING HOLE QUANTITY	3
MOUNTING HOLE DIAMETER	0.250 INCHES NOMINAL
CONNECTOR TYPE VENT	NOT PROVIDED
III END ITEM IDENTIFICATION	MISSILE AIR INTERCEPT,SIDEWINDER

Restrictions/Controls & Freight Information | NSN 6685-01-048-0753

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	652	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-01-048-0753

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
