Product Details | PRESSURE TRANSMITTER

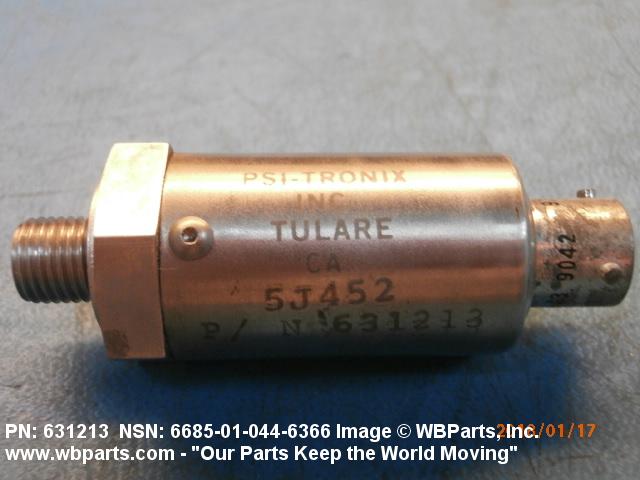

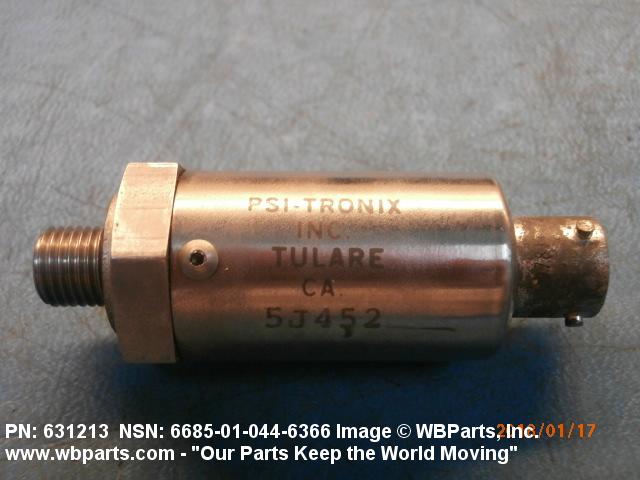

6685-01-044-6366 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: PTL9C3000PSIGE3W0P43N1, PT-L9-C-3000-PSI-G-E3-W0-P43-N1-, PTL9C3000PSIGEW0PON0M, PT-L9-C-3000-PSI-G-E-W0-PO-N0-M, 506423000G001, 50642-3000G-001, 5480201120, 548020-1120 , 631213, 99631500, 99-631500, 6685-01-044-6366, 01-044-6366, 6685010446366, 010446366
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 17 JUL 1977 | 01-044-6366 | 03375 ( TRANSMITTER, PRESSURE ) |

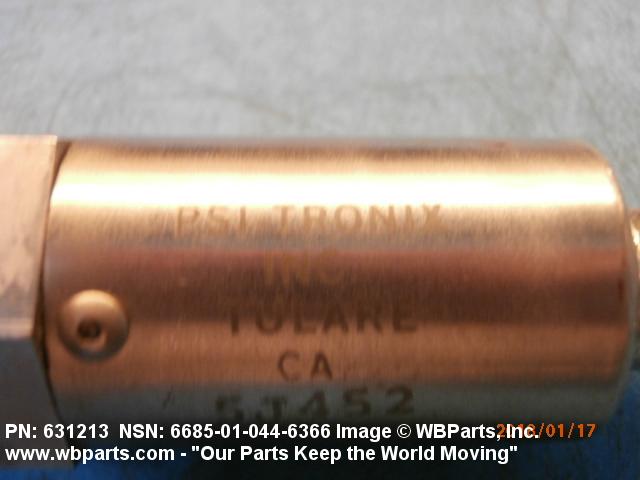

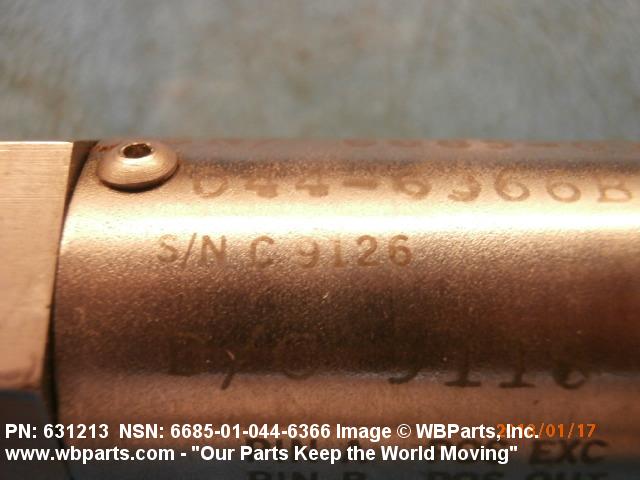

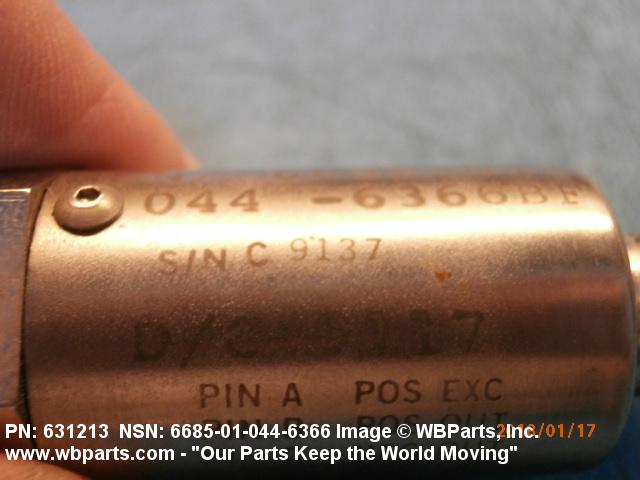

Drawings & Photos | NSN 6685-01-044-6366
Demand History | NSN 6685-01-044-6366
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-044-6366 | 2024-03-65 | 5 | United States |
| 548020-1120 | 2020-06-166 | 2 | DIBBS |
| 548020-1120 | 2020-06-156 | 2 | DIBBS |
| 548020-1120 | 2019-11-317 | 27 | DIBBS |
| 548020-1120 | 2019-08-224 | 8 | DIBBS |
| 6685-01-044-6366 | 2018-07-191 | 22 | DIBBS |
| 6685-01-044-6366 | 2018-04-116 | 2 | United States |
| 6685-01-044-6366 | 2017-11-325 | 2 | United States |
| 6685-01-044-6366 | 2017-11-325 | 3 | United States |
| 99631500 | 2017-08-235 | 1 | South Korea |
| 99631500 | 2017-06-177 | 1 | South Korea |
| 6685-01-044-6366 | 2014-07-190 | 11 | DIBBS |
| 6685-01-044-6366 | 2013-04-111 | 14 | DIBBS |
| 6685-01-044-6366 | 2011-03-70 | 4 | DIBBS |
| 6685-01-044-6366 | 2009-07-209 | 29 | DIBBS |
Cross Reference | NSN 6685-01-044-6366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50642-3000G-001 | 34830 | ROGERSON KRATOS |
| 548020-1120 | 52797 | AUTOMATION PRODUCTS GROUP, INC. |
| 631213 | 52158 | MEASUREMENT SPECIALTIES, INC. |
| 631213 | 5J452 | SCIENTIFIC TECHNOLOGIES INC. DBA STI AUTOMATION PRODUCTS GROUP |
| 99-631500 | 81982 | HYDRO-AIRE, INC. |
| PT-L9-C-3000-PSI-G-E-W0-PO-N0-M | 52797 | AUTOMATION PRODUCTS GROUP, INC. |
| PT-L9-C-3000-PSI-G-E-W0-PO-N0-M | 5J452 | SCIENTIFIC TECHNOLOGIES INC. DBA STI AUTOMATION PRODUCTS GROUP |
| PT-L9-C-3000-PSI-G-E3-W0-P43-N1- | 52797 | AUTOMATION PRODUCTS GROUP, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-044-6366
Technical Data | NSN 6685-01-044-6366
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 10.0 VOLTS MINIMUM AND 20.0 VOLTS MAXIMUM INPUT |
| ELECTRICAL CONNECTION QUANTITY | 1 |

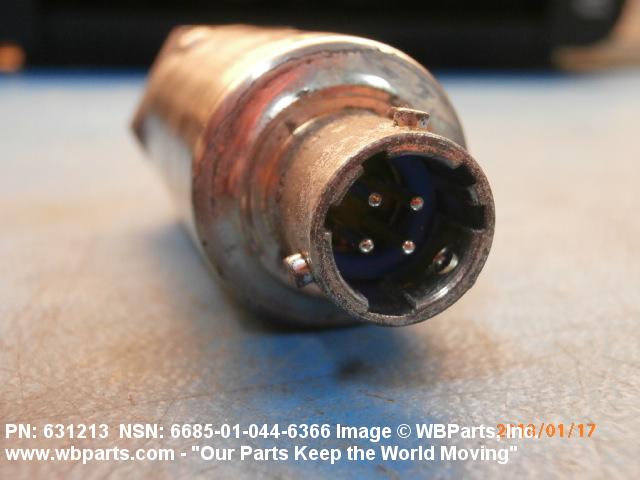

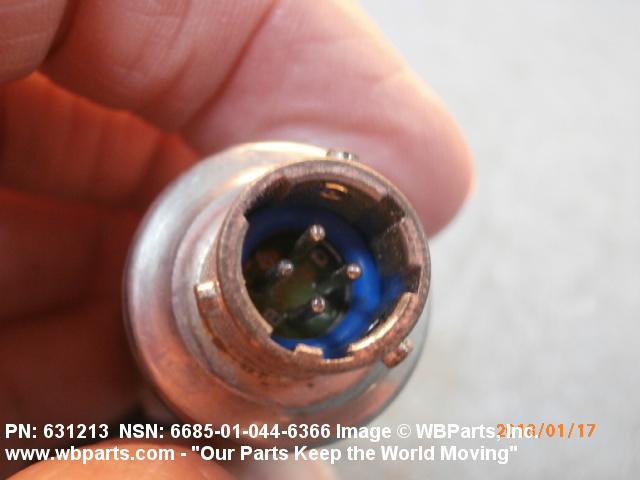

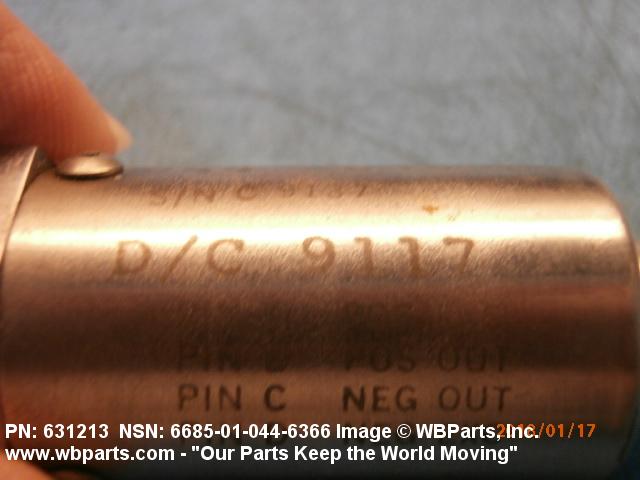

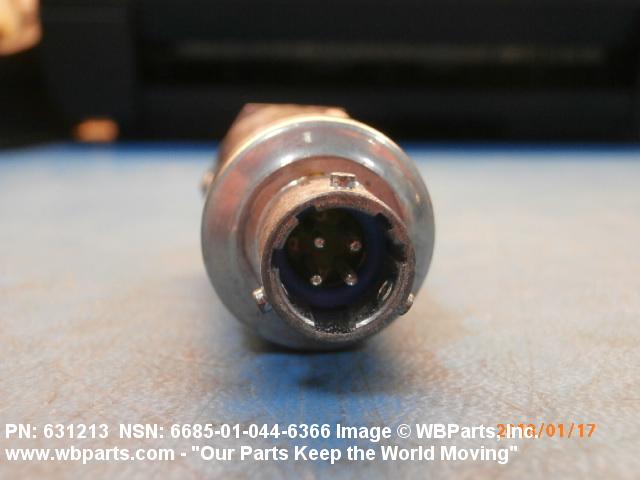

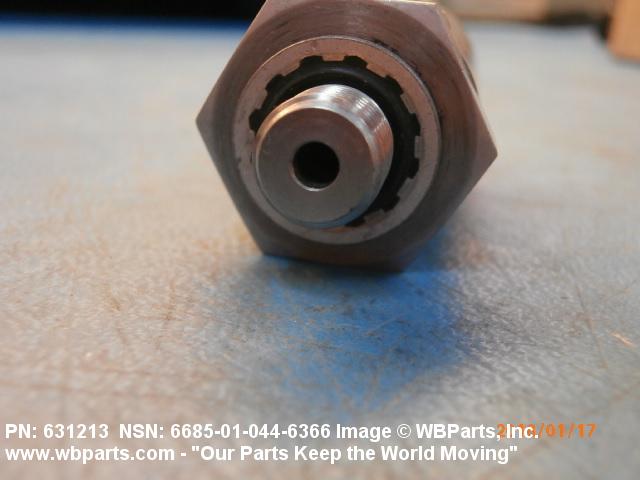

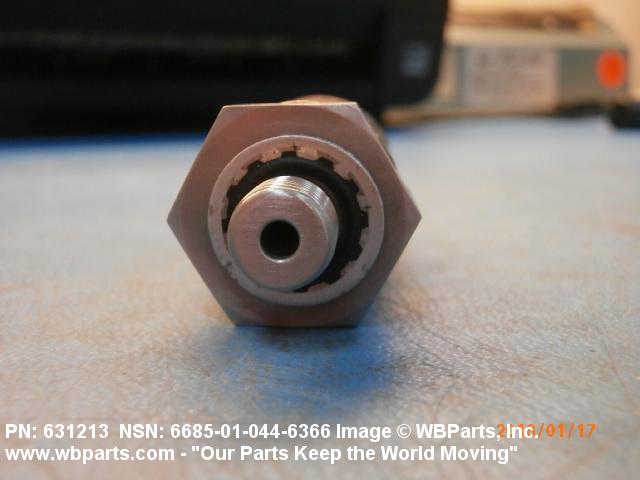

| CONTACT QUANTITY | 4 |
| CONTACT TYPE | PIN |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | BENDIX |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | PT1H-8-4P |
| MECHANICAL CONNECTION QUANTITY | 1 |
| MECHANICAL CONNECTION SIZE | 3/16 IN. DIA |
| MECHANICAL CONNECTION TYPE | FLARED TUBE PRESSURE FITTING |
| ACTUATION METHOD | DIAPHRAGM |

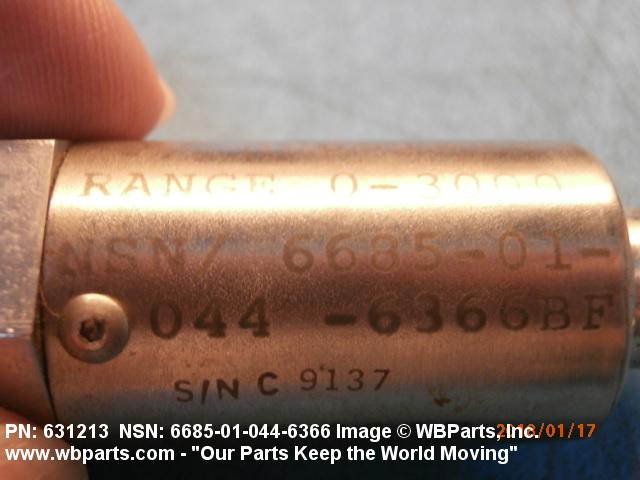

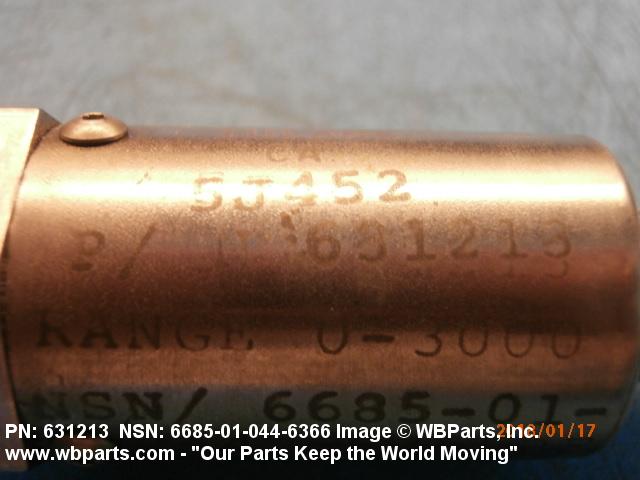

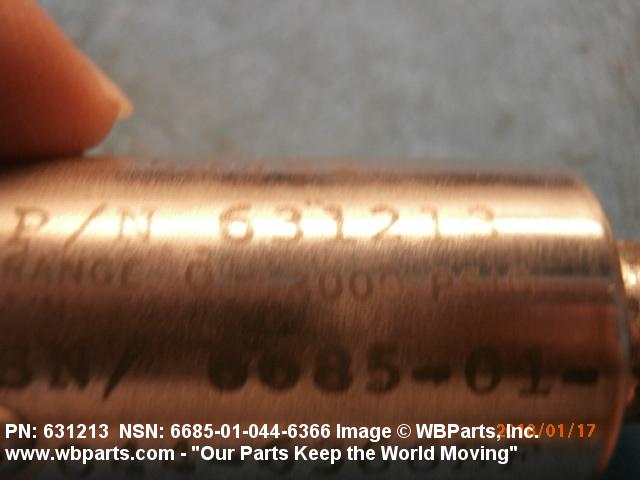

| MEASUREMENT RANGE | 0.0 TO 3000.0 POUNDS PRESSURE PER SQUARE INCH |

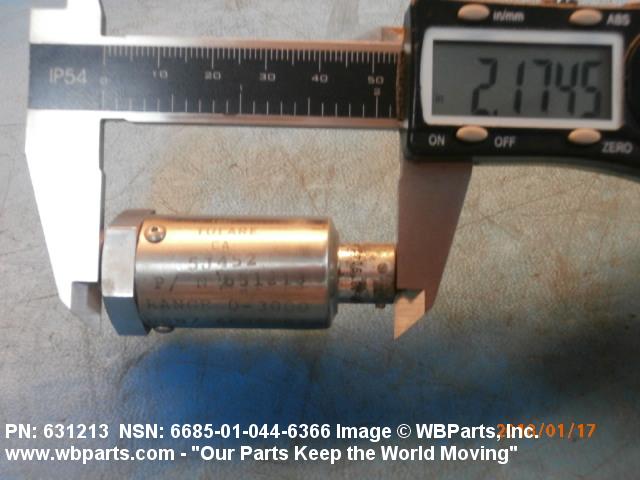

| OVERALL LENGTH | 2.220 INCHES NOMINAL |

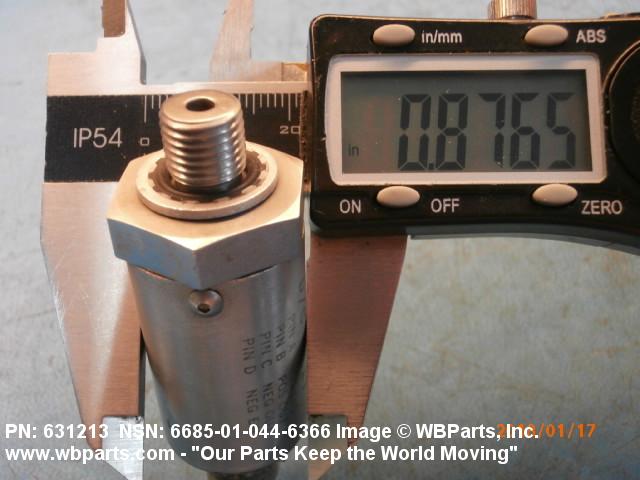

| OVERALL DIAMETER | 0.880 INCHES NOMINAL |
