NSN 6685-01-030-8646 112622AA, 01-030-8646, 010308646
Product Details | THERMOWELL
6685-01-030-8646 A pressure-tight receptacle mounted to an item by external threads, flange and/or welding. It is designed to hold temperature sensing devices, such as, termocouples, resistance temperature detectors, and thermometers.
Part Alternates: 112622AA, 6685-01-030-8646, 01-030-8646, 6685010308646, 010308646
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 NOV 1976 | 01-030-8646 | 40096 ( THERMOWELL ) |
Drawings & Photos | NSN 6685-01-030-8646
Demand History | NSN 6685-01-030-8646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-030-8646 | 2016-11-313 | 2 | DIBBS |
| 6685-01-030-8646 | 2016-10-292 | 2 | DIBBS |
Cross Reference | NSN 6685-01-030-8646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112622AA | 27320 | HONEYWELL INC PROCESS CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-030-8646
Related Products | NSN 6685-01-030-8646
Technical Data | NSN 6685-01-030-8646
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |

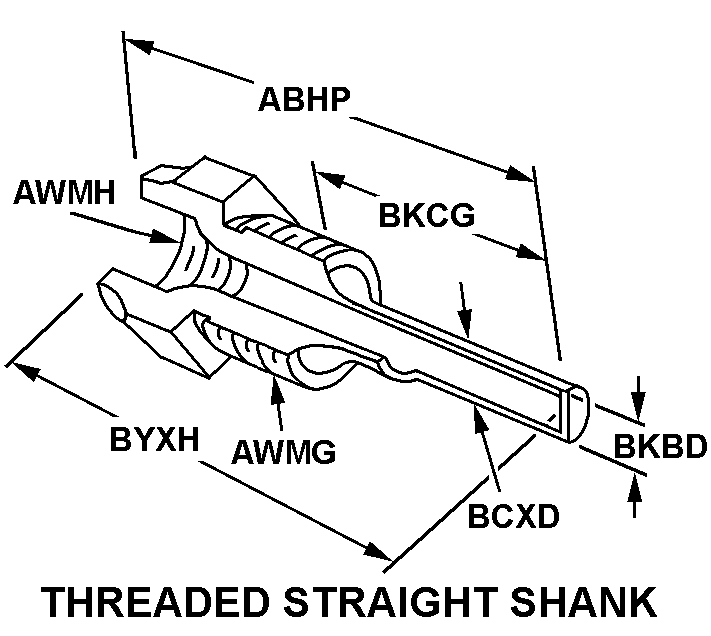

| STYLE DESIGNATOR | A THREADED STRAIGHT SHANK |
| OVERALL LENGTH | 5.750 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 1/2 IN. NPT |
| BULB TIP LENGTH | 4.000 INCHES NOMINAL |
| BULB TIP OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | REMOVABLE BRASS CAP AFFIXED W/CHAIN:NOT PROVIDED; |
| MANUFACTURERS CODE | 27320 |
| DESIGN CONTROL REFERENCE | 112622AA |
Restrictions/Controls & Freight Information | NSN 6685-01-030-8646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6685-01-030-8646
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
