NSN 6685-01-014-8047 104922, 10492-2, 01-014-8047
Product Details | PRESSURE TRANSDUCER
6685-01-014-8047
Part Alternates: 104922, 10492-2, 6685-01-014-8047, 01-014-8047, 6685010148047, 010148047
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 JAN 1976 | 01-014-8047 | 77777 ( ) |

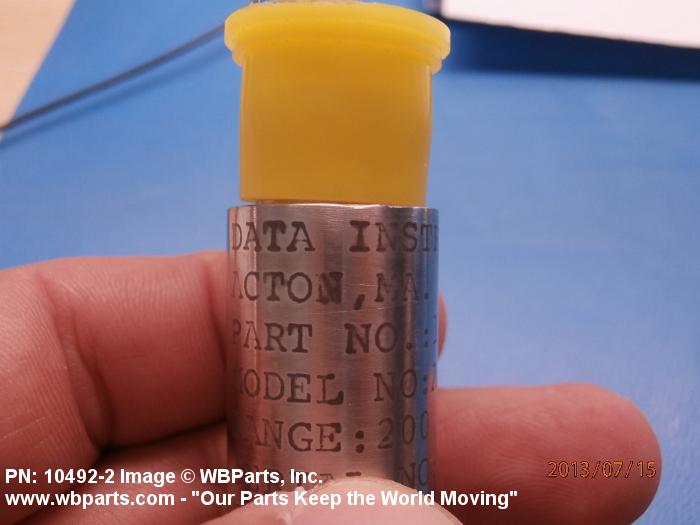

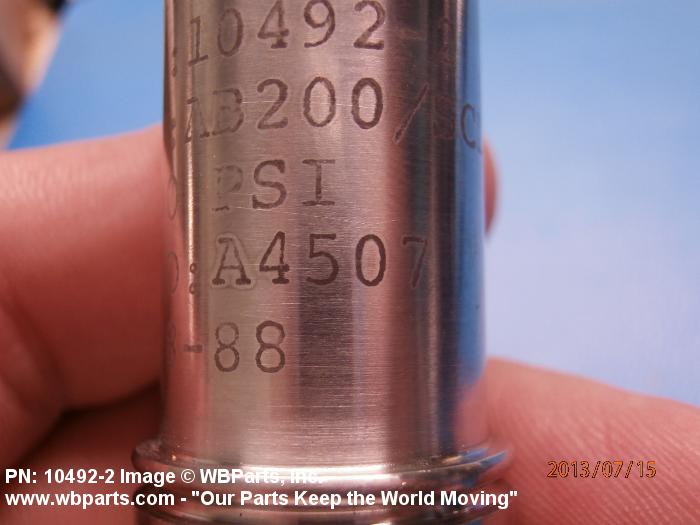

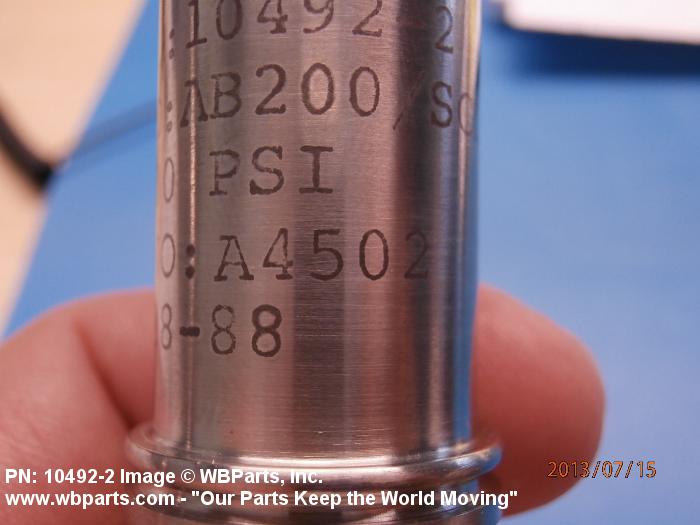

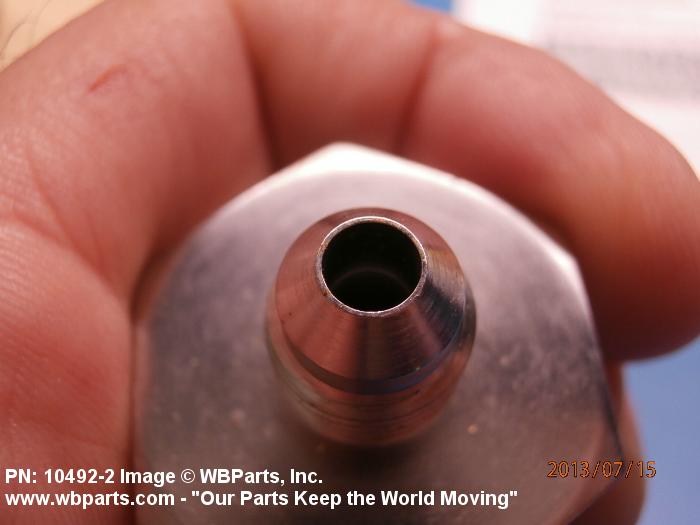

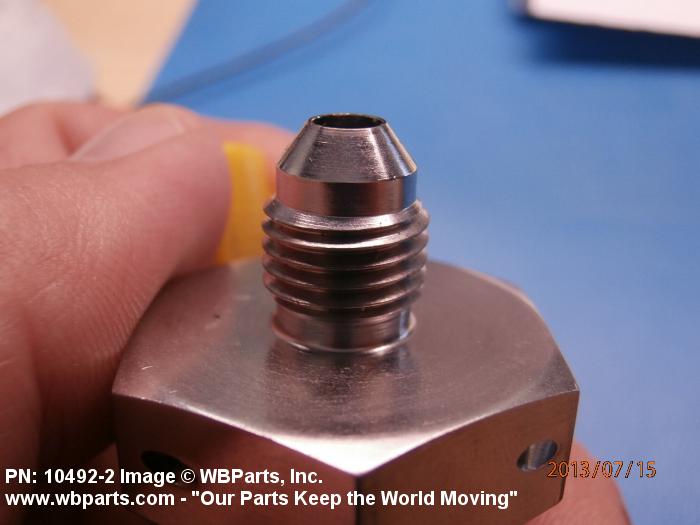

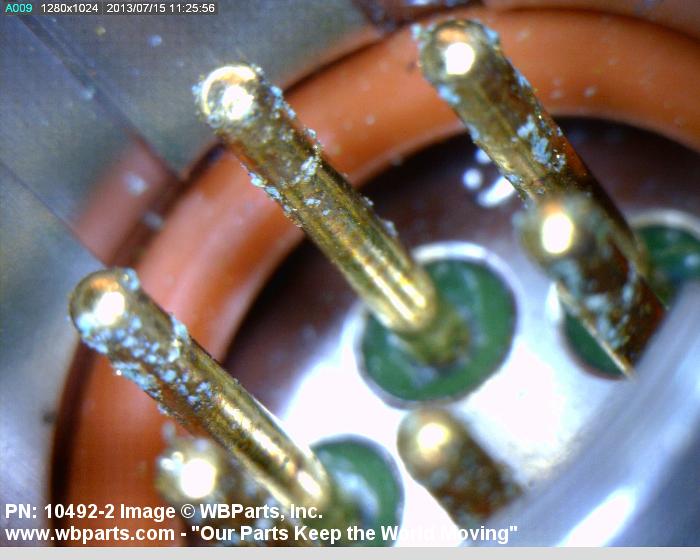

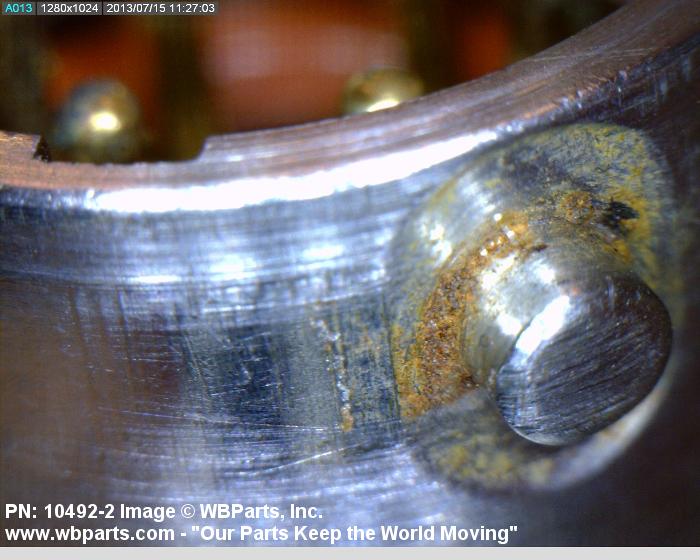

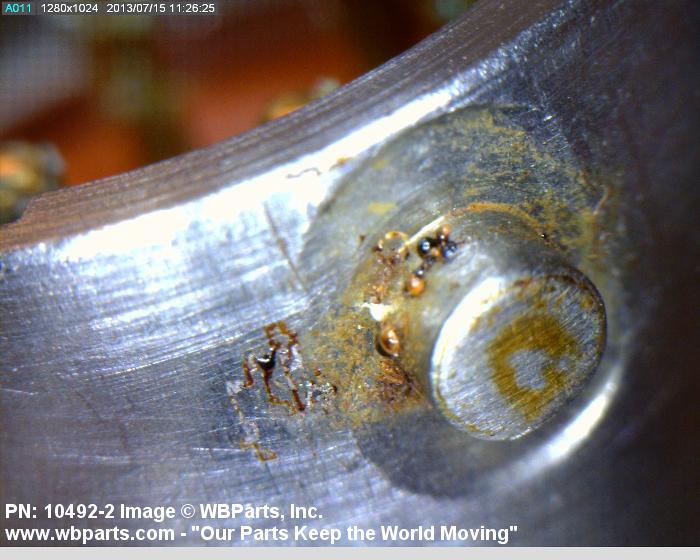

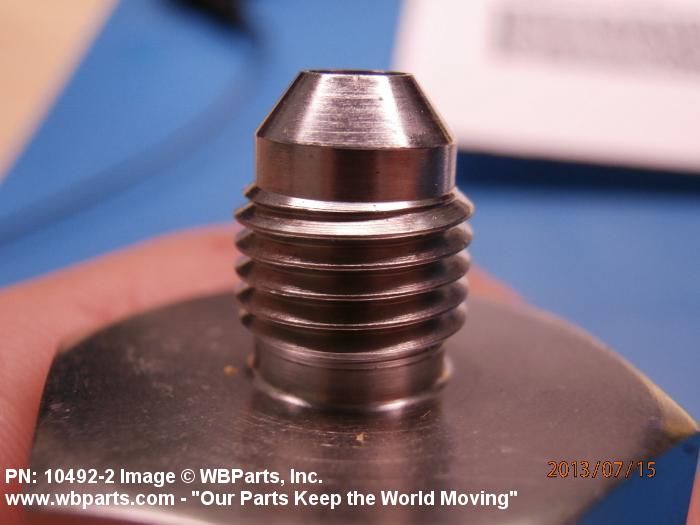

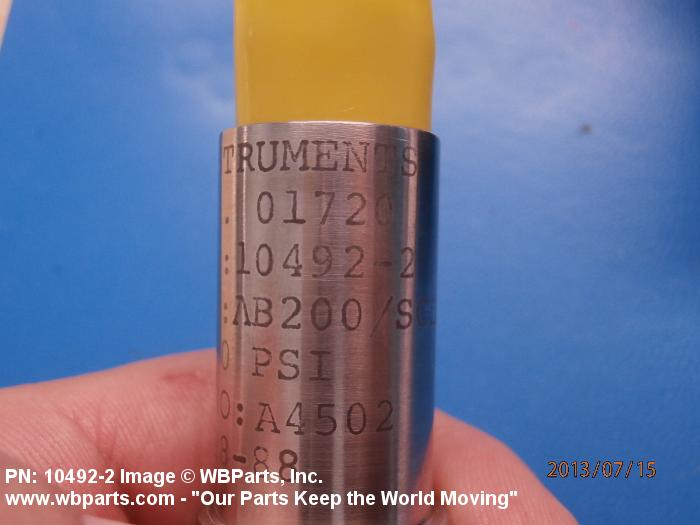

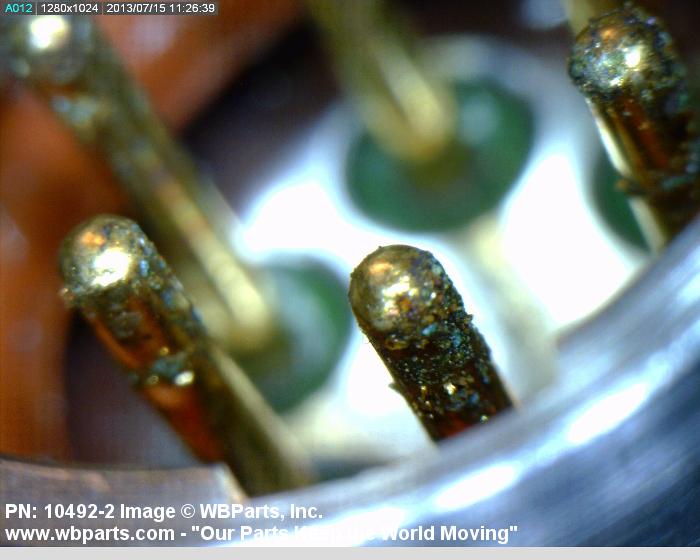

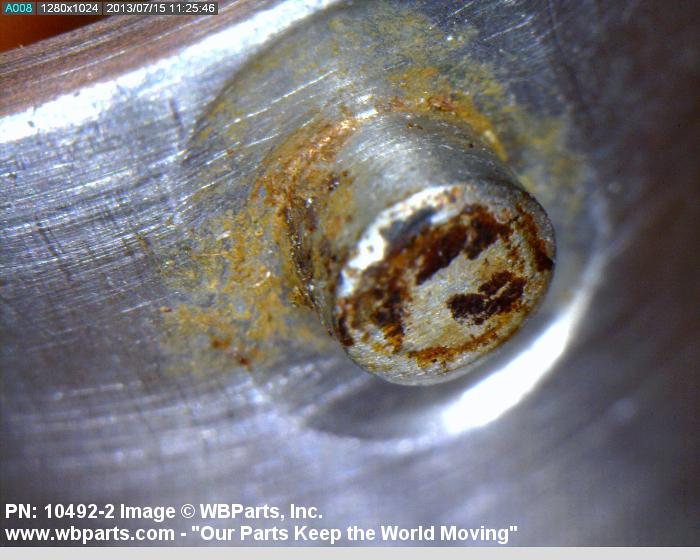

Drawings & Photos | NSN 6685-01-014-8047
Demand History | NSN 6685-01-014-8047
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-014-8047 | 2020-08-238 | 1 | US |
| 6685-01-014-8047 | 2020-08-233 | 1 | US |
| 010148047 | 2018-04-92 | 5 | United States |
| 104922 | 2017-11-319 | 1 | United States |
| 6685-01-014-8047 | 2016-06-158 | 15 | US |
| 6685-01-014-8047 | 2013-08-237 | 4 | DIBBS |
| 6685-01-014-8047 | 2013-07-190 | 1 | United States |
| 6685-01-014-8047 | 2013-06-161 | 6 | DIBBS |
| 6685-01-014-8047 | 2012-05-152 | 2 | United States |
| 6685-01-014-8047 | 2012-04-95 | 2 | DIBBS |
Cross Reference | NSN 6685-01-014-8047
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10492-2 | 06880 | DATA INSTRUMENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-014-8047
Related Products | NSN 6685-01-014-8047
Technical Data | NSN 6685-01-014-8047
| Characteristic | Specifications |
|---|---|

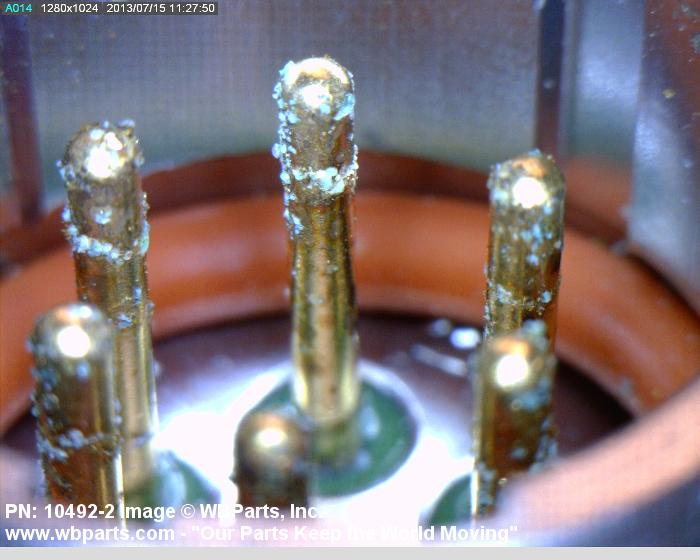

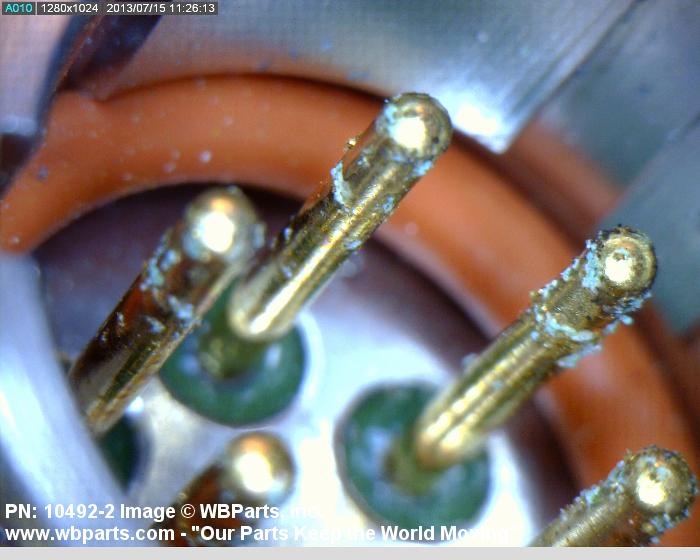

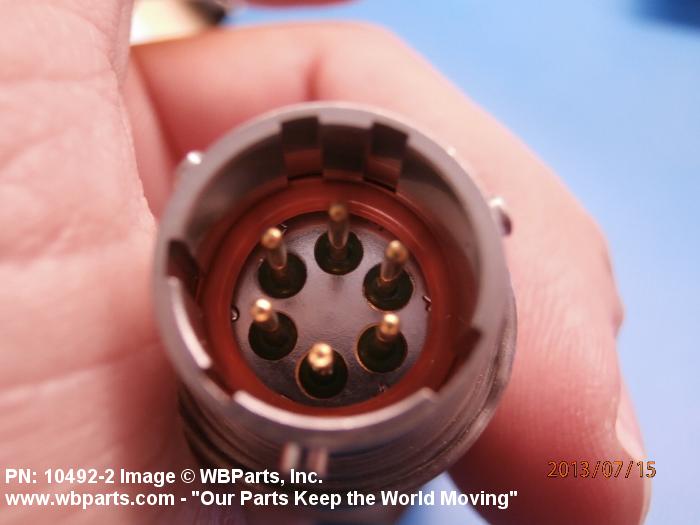

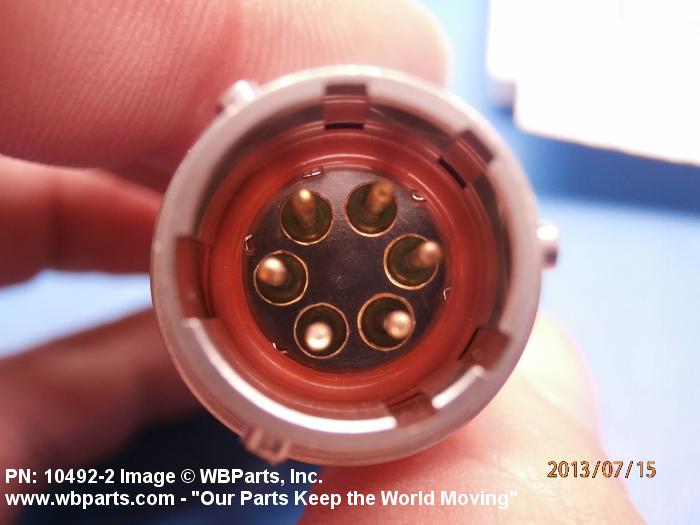

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STAINLESS STEEL,3.300 IN. LG,1.125 IN. W,OPERATING TEMPERATURE M65.0 DEG F TO 200.0 DEG F,SENSING MEDIA UNINHIBITED ETHYLENE GLYCOL,OPERATING PRESSURE 0.0 TO 200.0 PSI,6 PIN ELECTRICAL CONNECTOR |
| III END ITEM IDENTIFICATION | AWACS MODEL 411L |
| MANUFACTURERS CODE | 06880 |
| DESIGN CONTROL REFERENCE | 10492-2 |
Restrictions/Controls & Freight Information | NSN 6685-01-014-8047
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-014-8047
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
