NSN 6685-00-938-5438 1087569G001, 413E-JELO-PW/GHLDA, 413EJELOPWGHLDA
Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-938-5438 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: 1087569G001, 413E-JELO-PW/GHLDA, 413EJELOPWGHLDA, 6685-00-938-5438, 00-938-5438, 6685009385438, 009385438
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 MAR 1967 | 00-938-5438 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-00-938-5438
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-938-5438
Technical Data | NSN 6685-00-938-5438
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC |
| SCALE MEASUREMENT RANGE | 0.000 TO 100.000 DEG CELSIUS |
| MATERIAL | PLASTIC PHENOLIC METER CASE |
| STYLE DESIGNATOR | D2 BULB W/SOCKET |
| BULB TIP LENGTH | 6.250 INCHES NOMINAL |
| CASE DIAMETER | 5.750 INCHES NOMINAL |
| DIAL DIAMETER | 4.375 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |

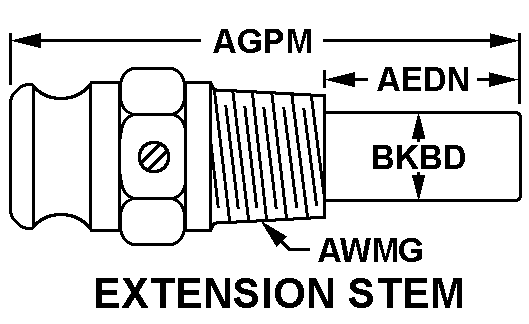

| SEPARABLE SOCKET STYLE | J6 EXTENSION STEM |
| BULB TIP OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 7.500 INCHES NOMINAL |
| TIP LENGTH | 5.250 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 1.000 IN. NPT |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | K5 PLAIN BULB |
| ACTIVE PORTION LENGTH | 5.000 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.500 INCHES NOMINAL |
| BULB OVERALL LENGTH | 5.250 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 0.250 INCHES NOMINAL |
| BULB CONNECTION TYPE | UNION |
| FLEXIBLE TUBE LENGTH | 72.000 INCHES NOMINAL |
| ACTUATING MEDIUM | DISTILLED WATER |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 FLUSH |
| MOUNTING BOLT CIRCLE DIAMETER | 2.625 INCHES NOMINAL |
| CASE TYPE | DUST TIGHT |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACK GROUND |
| III SCALE SMALLEST INCREMENT | 2.0 DEG CELSIUS |
| MANUFACTURERS CODE | 38056 |
| DESIGN CONTROL REFERENCE | 413E-JELO-PW/GHLDA |
Restrictions/Controls & Freight Information | NSN 6685-00-938-5438
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6685-00-938-5438
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
