Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-911-9751 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: BUWEPSDWG1269199, 1269199, 6685-00-911-9751, 00-911-9751, 6685009119751, 009119751
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 JUN 1966 | 00-911-9751 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

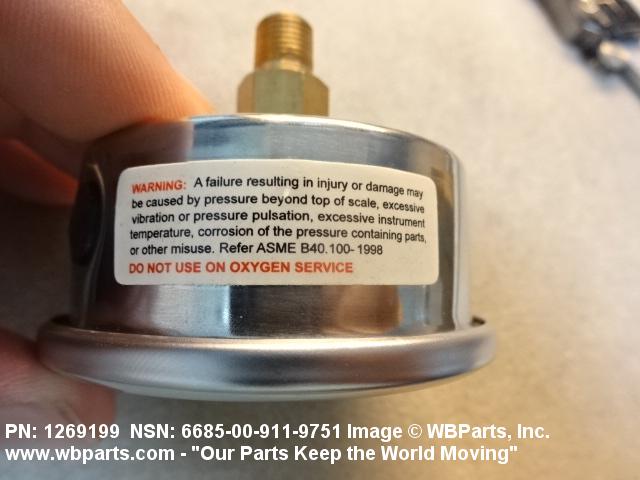

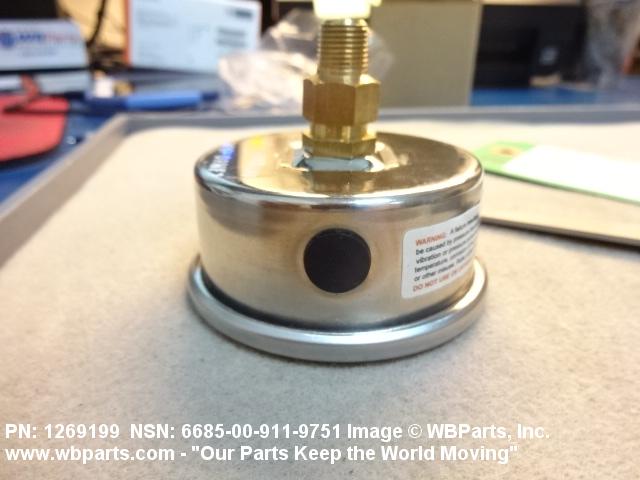

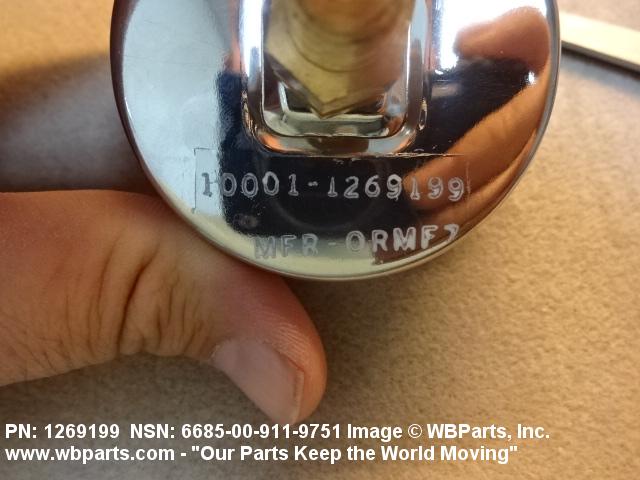

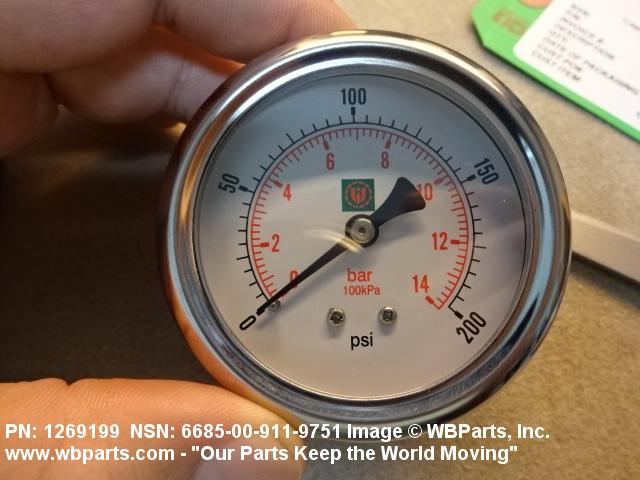

Drawings & Photos | NSN 6685-00-911-9751
Demand History | NSN 6685-00-911-9751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-911-9751 | 2022-08-228 | 11 | DIBBS |
| 6685-00-911-9751 | 2021-05-125 | 12 | DIBBS |
| 6685-00-911-9751 | 2021-02-47 | 17 | DIBBS |
| 6685-00-911-9751 | 2021-01-05 | 2 | DIBBS |
| 6685-00-911-9751 | 2020-12-348 | 3 | DIBBS |
| 6685-00-911-9751 | 2018-09-260 | 8 | Australia |
| 6685-00-911-9751 | 2017-08-220 | 2 | DIBBS |
| 6685-00-911-9751 | 2017-07-211 | 4 | DIBBS |
| 6685-00-911-9751 | 2017-07-211 | 2 | DIBBS |
| 6685-00-911-9751 | 2015-12-348 | 36 | DIBBS |
| 6685-00-911-9751 | 2012-09-263 | 1 | PT |
| 6685-00-911-9751 | 2012-08-237 | 4 | DIBBS |
| 6685-00-911-9751 | 2012-08-237 | 12 | DIBBS |
| 6685-00-911-9751 | 2010-04-112 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-911-9751
Technical Data | NSN 6685-00-911-9751
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | BRASS |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.000 TO 200.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2 PCT ENTIRE RANGE |
| GRADUATION UNIT | 40.000 POUNDS |
| SCALE SMALLEST INCREMENT | 5.000 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | WHITE FIGURES ON BLACK BACKGROUND |

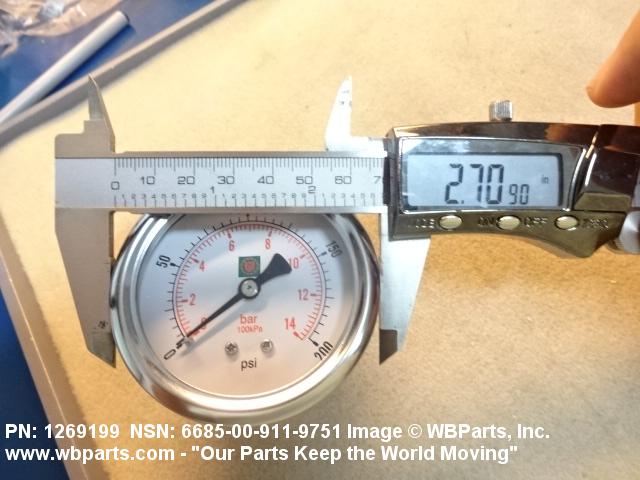

| DIAL SIZE | 2-3/4 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | WHITE |
| CASE MATERIAL | BRASS |

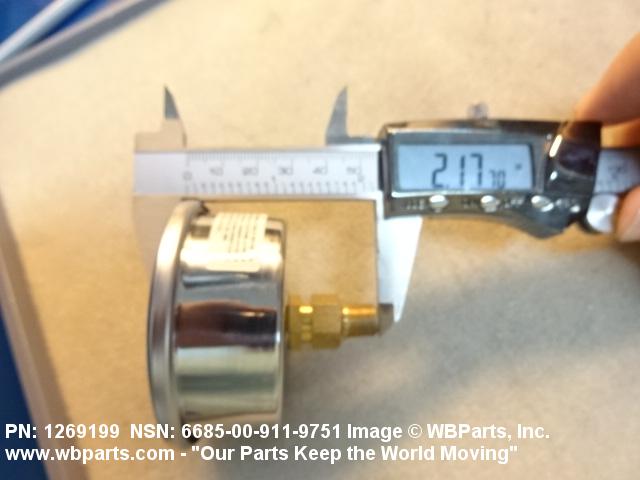

| OVERALL DIAMETER | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| OVERALL DEPTH | 2.000 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 1/8 IN. NPT |
| MOUNTING METHOD | RIGID STEM |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | GAGE MUST BE PROVIDED WITH PRESSURE RELIEF PLUS IN REAR OF CASE,TO RELIEVE THE INTERNAL PRESSURE AT ONE HALF THE VALVE NECESSARY TO BLOW OUT THE COVER LENS |
