NSN 6685-00-872-4774 SA233PEPRWBX, SA23-3PEP-RWBX, SG3NN60PWRANAG
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-872-4774 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SA233PEPRWBX, SA23-3PEP-RWBX, SG3NN60PWRANAG, MILG18997, MIL-G-18997, 6685-00-872-4774, 00-872-4774, 6685008724774, 008724774
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-872-4774 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

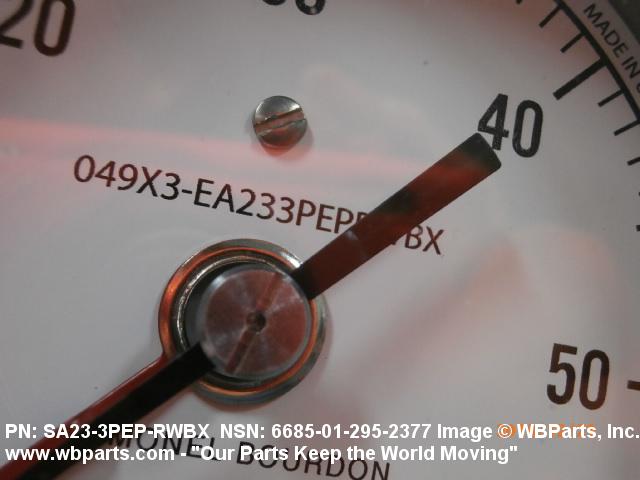

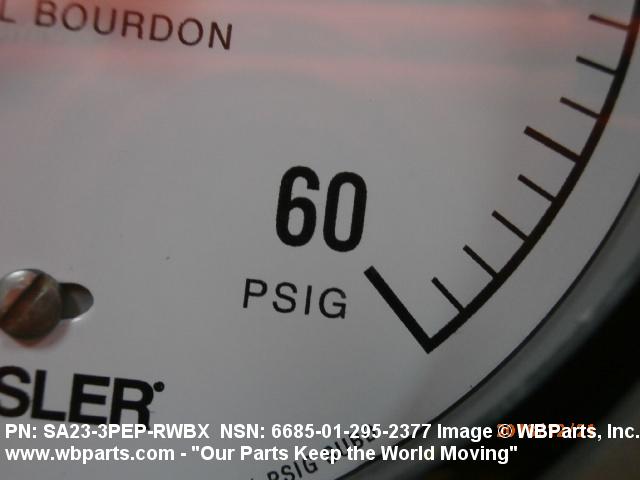

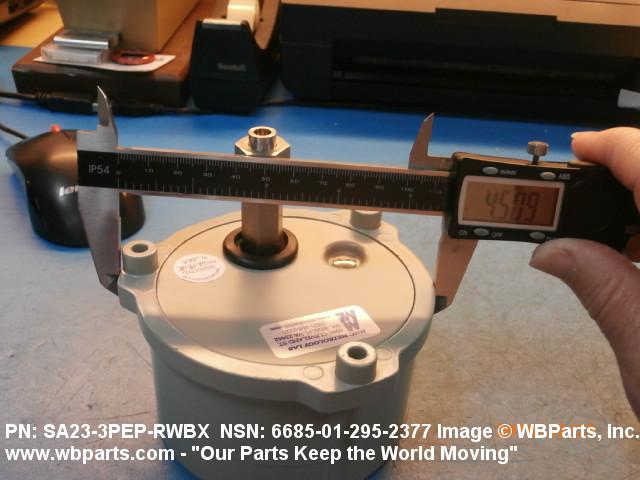

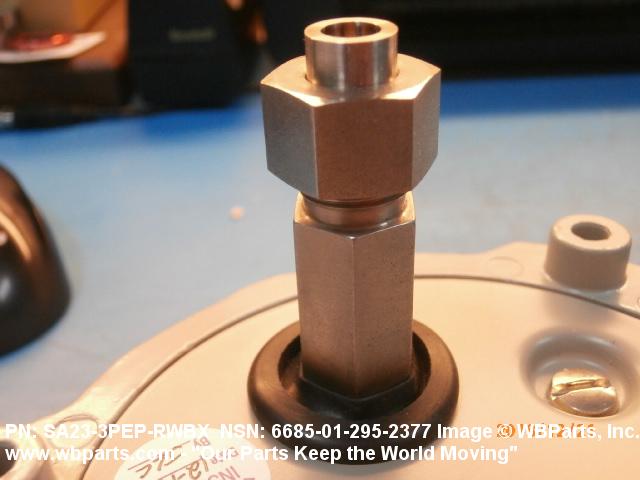

Drawings & Photos | NSN 6685-00-872-4774
Demand History | NSN 6685-00-872-4774
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-872-4774 | 2023-11-333 | 44 | DIBBS |
| 6685-00-872-4774 | 2023-06-171 | 28 | DIBBS |
| MILG18997 | 2021-04-109 | 8 | US |
| 6685-00-872-4774 | 2013-03-62 | 114 | DIBBS |
| 6685-00-872-4774 | 2012-04-114 | 37 | DIBBS |
| 6685-00-872-4774 | 2011-01-06 | 165 | DIBBS |
| 6685-00-872-4774 | 2010-06-154 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-872-4774
Technical Data | NSN 6685-00-872-4774
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL-COPPER-ALUMINUM ALLOY |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 60.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 1 PCT ABOVE 5 PCT SCALE RANGE |
| GRADUATION UNIT | 10.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 1.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES,WHITE BACKGROUND |
| DIAL SIZE | 3-1/2 IN. DIA |
| POINTER TYPE | INDICATING AND REFERENCE |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK AND RED |
| CASE MATERIAL | ALUMINUM |
| OVERALL DIAMETER | 3.969 INCHES NOMINAL |
| OVERALL DEPTH | 2.719 INCHES NOMINAL |
| BEZEL TYPE | THREAD |
| MATERIAL | STEEL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.250 IN. TUBE |
| MOUNTING METHOD | SURFACE |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| NONDEFINITIVE SPEC/STD DATA | A DESIGN AND A TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-18997 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | SG3NN60PWRANAG |
Restrictions/Controls & Freight Information | NSN 6685-00-872-4774
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-872-4774
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
