NSN 6685-00-872-4757 AS335451908200S12, AS33-545-1908200S12, SA243CBPRWBX
Product Details | DIAL INDICATING COMPOUND PRESSURE-VACUUM GAGE
6685-00-872-4757 An instrument designed to measure and indicate pressure and vacuum, on one dial having a divided scale, a single indicating pointer which rotates either clockwise or counterclockwise according to whether pressure is applied or withdrawn.
Part Alternates: AS335451908200S12, AS33-545-1908200S12, SA243CBPRWBX, SA24-3CBP-RWBX, SC4NN30CWRANAG, MILG18997, MILI189971, MILI18997-1, 85007585, 850-07585, 85083, 850-83, 0MF07, 101B241AFPC6, 101B349AF1, 1JH217213, 1JH2172-13, 451246PC33BXWDF007, 45-1246PC33BXWDF007, 451246PC46BXWDF, 45-1246PC46BXWDF, 45DL14NPTF, 4-5DL1-4NPTF, 5ABG72, 6685-00-872-4757, 00-872-4757, 6685008724757, 008724757
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-872-4757 | 07424 ( GAGE, COMPOUND PRESSURE-VACUUM, DIAL INDICATING ) |

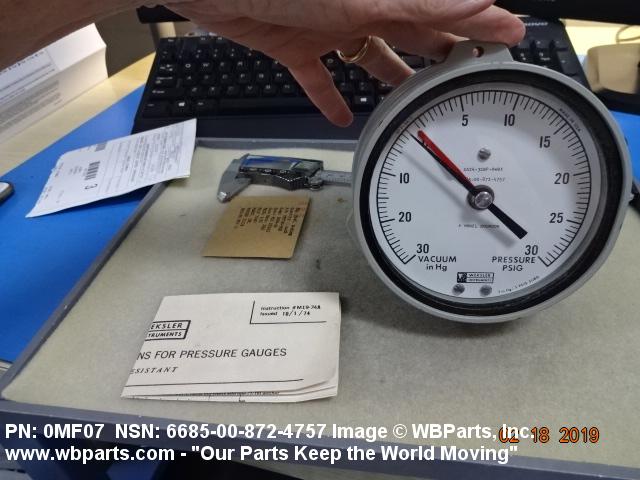

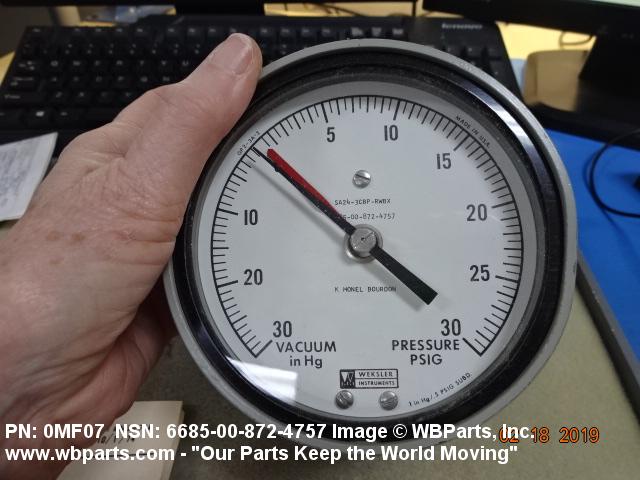

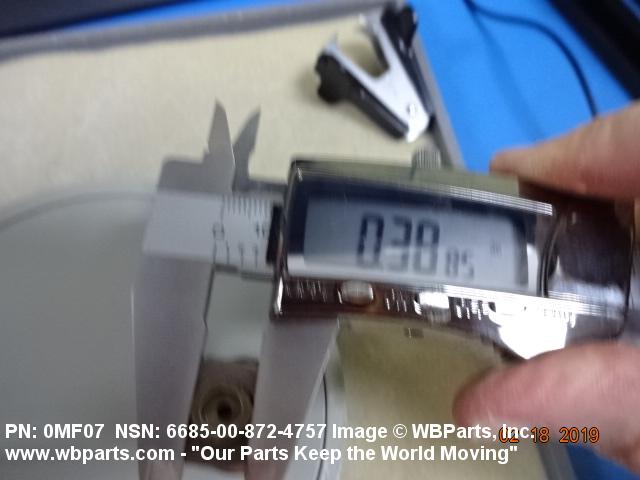

Drawings & Photos | NSN 6685-00-872-4757
Demand History | NSN 6685-00-872-4757
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILI189971 | 2023-06-180 | 3 | us |
| 5ABG72 | 2021-04-110 | 14 | US |
| 5ABG72 | 2021-04-109 | 14 | US |
| MILG18997 | 2021-04-109 | 8 | US |
| 6685-00-872-4757 | 2020-07-202 | 3 | US |
| 6685-00-872-4757 | 2018-09-253 | 1 | United States |
Cross Reference | NSN 6685-00-872-4757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0MF07 | 38056 | ASHCROFT INC. |
| 101B241AFPC6 | 03502 | GENERAL ELECTRIC CO NAVAL AND DRIVE TURBINE SYSTEMS DEPT |
| 101B349AF1 | 24446 | GENERAL ELECTRIC CO |
| 1JH2172-13 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 4-5DL1-4NPTF | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 45-1246PC33BXWDF007 | 38056 | ASHCROFT INC. |
| 45-1246PC46BXWDF | 38056 | ASHCROFT INC. |
| 5ABG72 | 38056 | ASHCROFT INC. |
| 850-07585 | 09647 | AQUA-CHEM INC. |
| 850-83 | 09647 | AQUA-CHEM INC. |
| AS33-545-1908200S12 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| MILG18997 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILI18997-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SA24-3CBP-RWBX | 64467 | WEKSLER GLASS THERMOMETER CORP |
| SC4NN30CWRANAG | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-872-4757
Related Products | NSN 6685-00-872-4757
Technical Data | NSN 6685-00-872-4757
| Characteristic | Specifications |
|---|---|

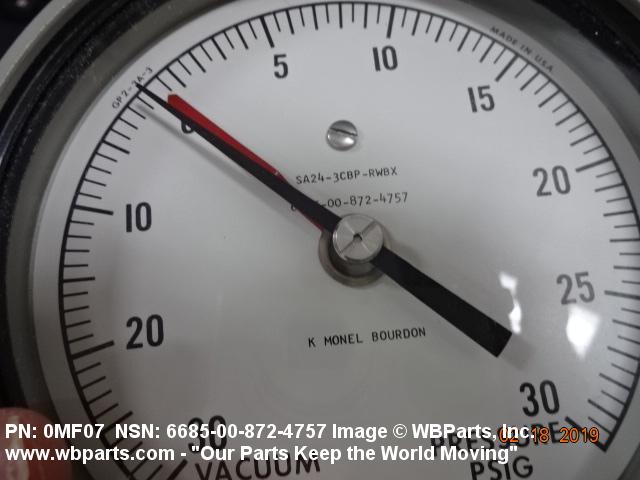

| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL COPPER ALLOY |
| SCALE TYPE | MULTIPLE |
| SCALE NAME | PRESSURE-VACUUM |
| SCALE RANGE | 0.0 TO 30.0 INCHES OF MERCURY AND 0.0 TO 30.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | PORM 1 PCT FULL SCALE |
| GRADUATION UNIT | 10.0 INCHES OF MERCURY AND 5.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 1.0 INCHES AND 1.0 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKINGS ON WHITE BACKGROUND |
| DIAL SIZE | 4-1/2 IN. DIA |
| SCALE MARKING | FREE OF OIL |
| POINTER TYPE | INDICATING AND REFERENCE |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK AND RED |
| SCALE NAME FOR WHICH POINTER IS DESIGNED | PRESSURE AND VACUUM |
| CASE MATERIAL | ALUMINUM |
| CASE SURFACE TREATMENT | ENAMEL |

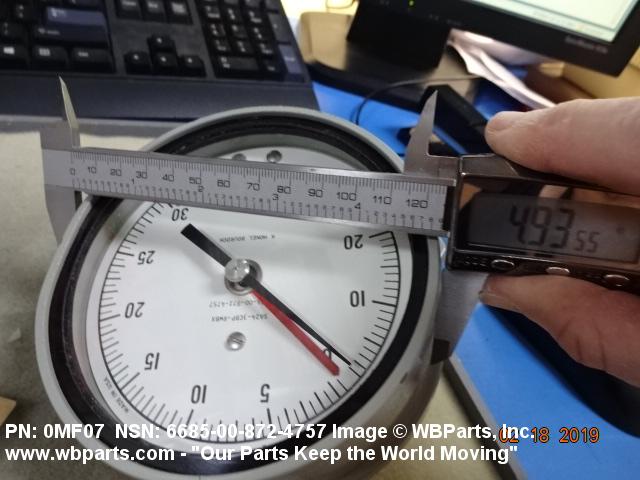

| OVERALL DIAMETER | 4.969 INCHES NOMINAL |

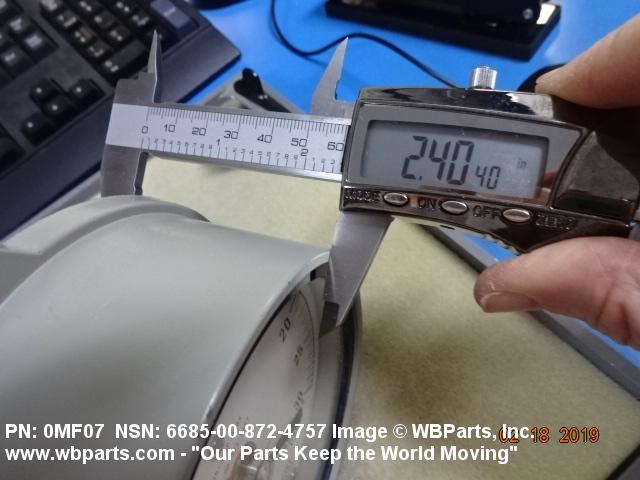

| OVERALL DEPTH | 2.406 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |

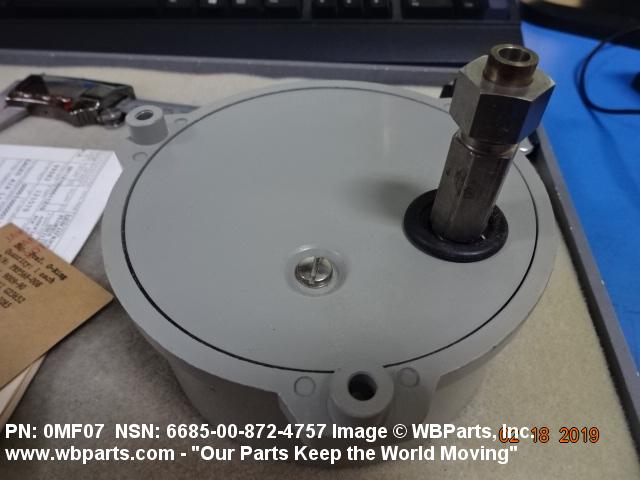

| CONNECTION LOCATION | BACK |

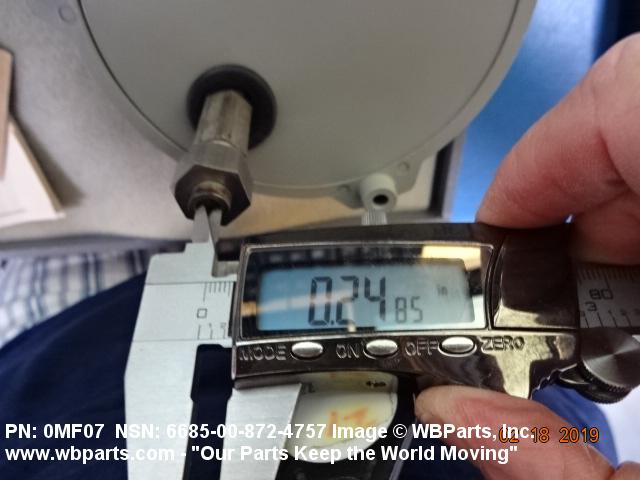

| CONNECTION SIZE | 0.250 IN. OD TUBE |
| MOUNTING METHOD | SURFACE |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILG18997 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI18997-1 |
Restrictions/Controls & Freight Information | NSN 6685-00-872-4757
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-872-4757
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
