NSN 6685-00-854-4500 J2942M001, J2942M-001, 1ABB03320AGA
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-854-4500 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: J2942M001, J2942M-001, 1ABB03320AGA, 21DFFM14CBM30, 2-1DFFM1-4CBM30, 6685-00-854-4500, 00-854-4500, 6685008544500, 008544500
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 27 SEP 1967 | 00-854-4500 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

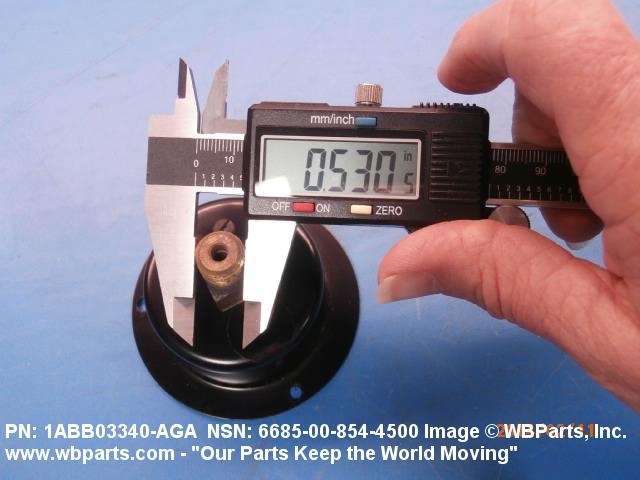

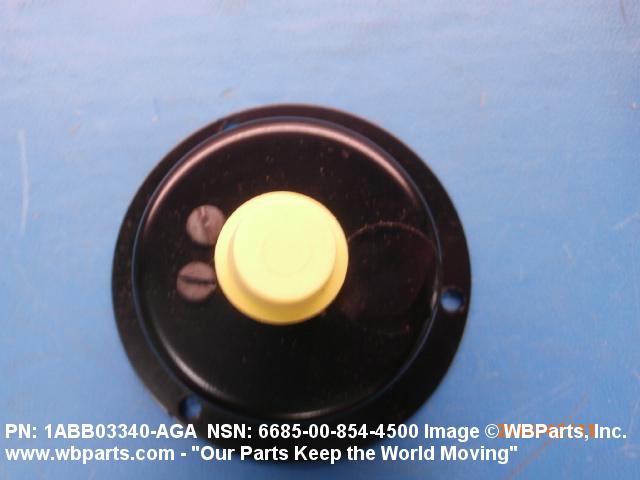

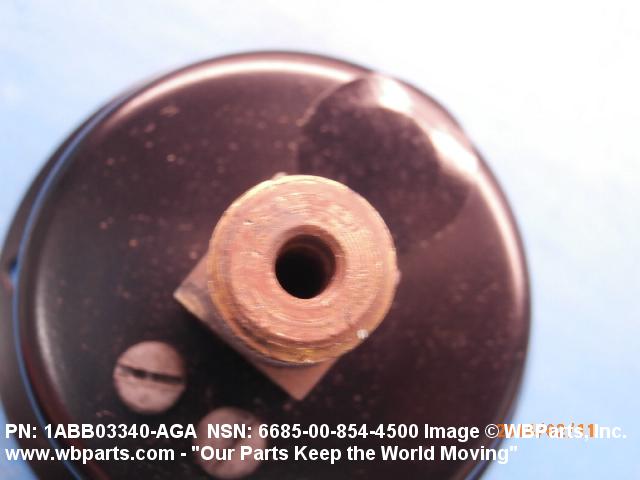

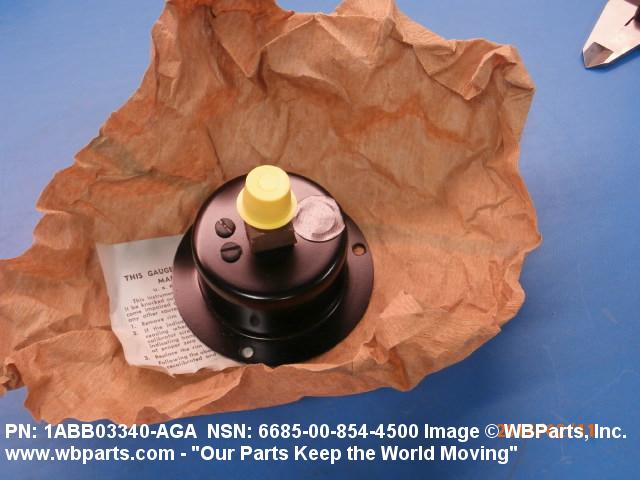

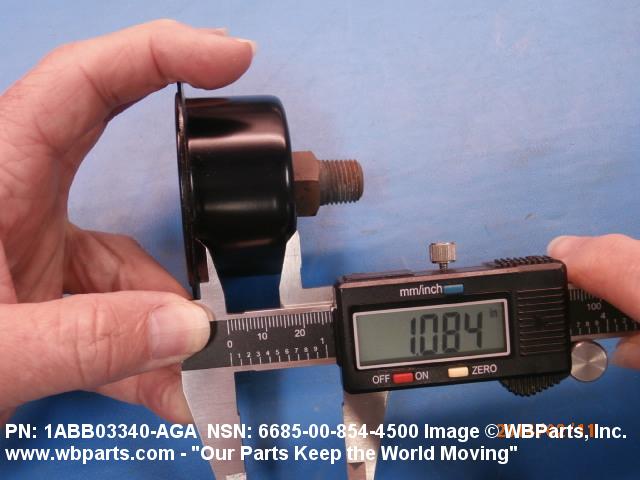

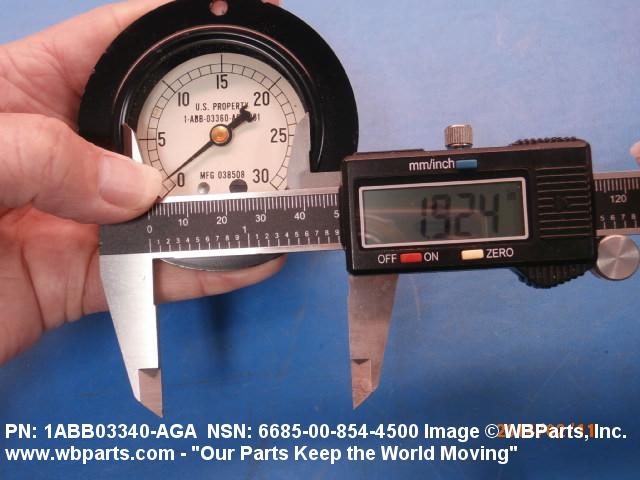

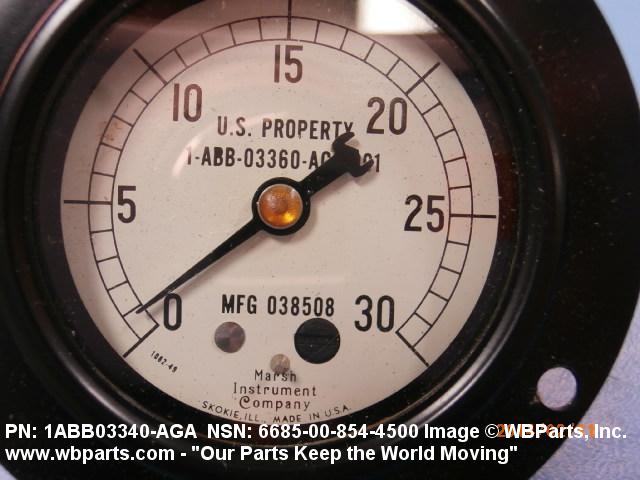

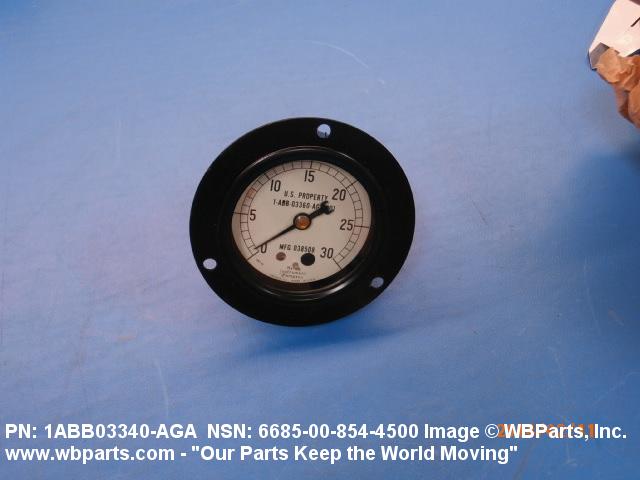

Drawings & Photos | NSN 6685-00-854-4500
Demand History | NSN 6685-00-854-4500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-854-4500 | 2018-12-345 | 47 | DIBBS |
| J2942M001 | 2017-03-89 | 2 | United States |
| 6685-00-854-4500 | 2016-07-183 | 1 | United States |
| 6685-00-854-4500 | 2016-04-103 | 1 | US |
| 6685-00-854-4500 | 2015-11-306 | 1 | United States |
| 6685-00-854-4500 | 2013-10-298 | 1 | United States |
| 6685-00-854-4500 | 2010-01-11 | 47 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-854-4500
Related Products | NSN 6685-00-854-4500
Technical Data | NSN 6685-00-854-4500
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | ANY ACCEPTABLE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |

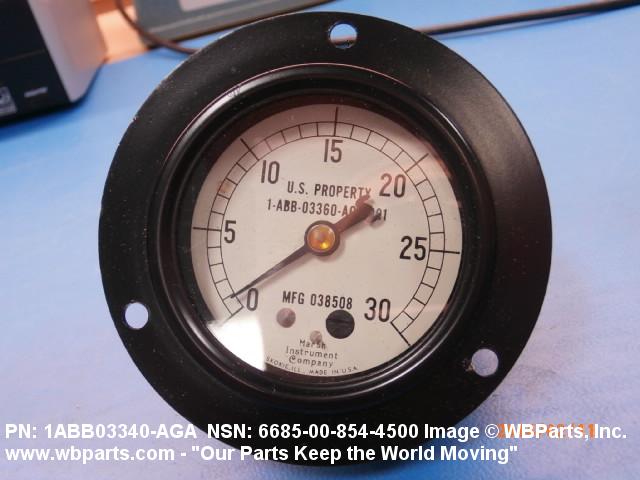

| SCALE RANGE | 0.000 TO 30.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | ANY ACCEPTABLE |
| GRADUATION UNIT | 5.0 POUNDS |
| SCALE SMALLEST INCREMENT | 1.0 POUNDS |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ON WHITE BACKGROUND |
| DIAL SIZE | 2 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | BRASS |
| CASE SURFACE TREATMENT | ENAMEL, BLACK |

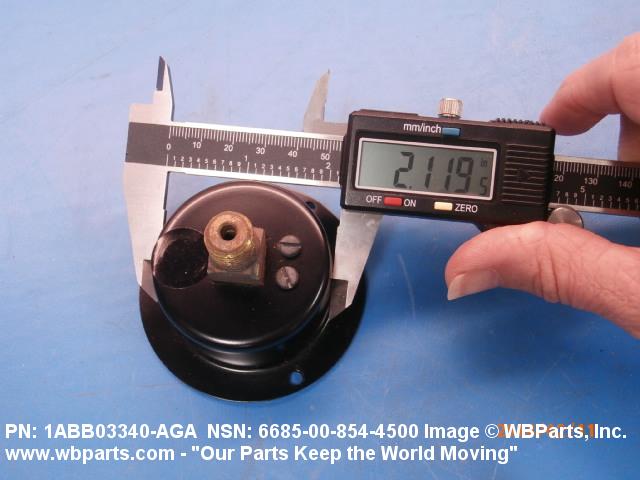

| OVERALL DIAMETER | 2.125 INCHES NOMINAL |
| OVERALL DEPTH | 1.078 INCHES NOMINAL |
| PROTECTIVE CRYSTAL MATERIAL | ANY ACCEPTABLE |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |

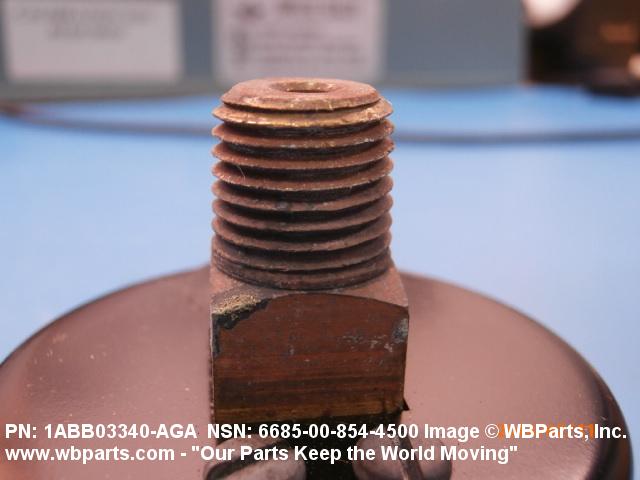

| CONNECTION SIZE | 1/4 IN. NPT |
| MOUNTING METHOD | FLUSH PANEL |
| BOLT CIRCLE DIAMETER | 2.625 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |

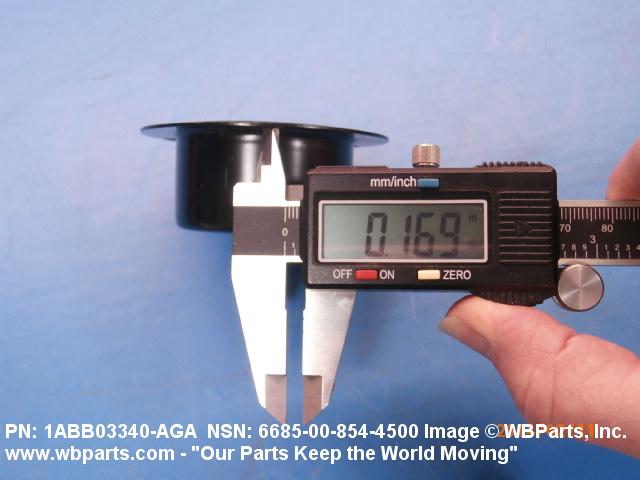

| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| UNIT PACKAGE QUANTITY | 1 |
| UNIT PACKAGE TYPE | BOX |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND A STYLE AND 1 CLASS AND 2 SIZE |
Restrictions/Controls & Freight Information | NSN 6685-00-854-4500
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-854-4500
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
