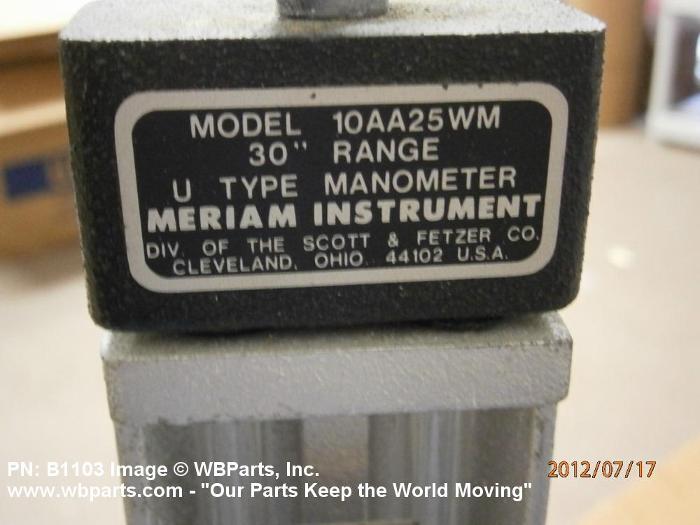

NSN 6685-00-848-6353 B1103, 10AA25WM RANGE 0/20, 10AA25WM20
Product Details | U-TUBE MANOMETER
6685-00-848-6353 00001016685000000
Part Alternates: B1103, 10AA25WM RANGE 0/20, 10AA25WM20, 10AA25WMRANGE020, 6685-00-848-6353, 00-848-6353, 6685008486353, 008486353
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 01 JAN 1962 | 00-848-6353 | 07449 ( MANOMETER, U-TUBE0 ) |
Demand History | NSN 6685-00-848-6353
Part Number | Request Date | QTY | Origin |
---|---|---|---|
B1103 | 2023-02-53 | 2 | United States |
10AA25WM20 | 2022-10-303 | 2 | DIBBS |
6685-00-848-6353 | 2016-09-251 | 4 | DIBBS |
6685-00-848-6353 | 2015-11-312 | 1 | DIBBS |
6685-00-848-6353 | 2015-10-280 | 4 | DIBBS |
B1103 | 2015-10-275 | 1 | United States |
B1103 | 2015-07-190 | 1 | United States |
6685-00-848-6353 | 2014-05-147 | 1 | DIBBS |
6685-00-848-6353 | 2014-05-139 | 1 | DIBBS |
6685-00-848-6353 | 2012-03-72 | 2 | DIBBS |
B1103 | 2011-12-364 | 2 | |
6685-00-848-6353 | 2010-07-189 | 3 | DIBBS |
6685-00-848-6353 | 2010-06-171 | 2 | DIBBS |
6685-00-848-6353 | 2009-12-362 | 2 | DIBBS |
Cross Reference | NSN 6685-00-848-6353
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-848-6353
Related Products | NSN 6685-00-848-6353
Technical Data | NSN 6685-00-848-6353
Characteristic | Specifications |
---|---|
MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH |
ZERO ADJUSTER | PROVIDED |

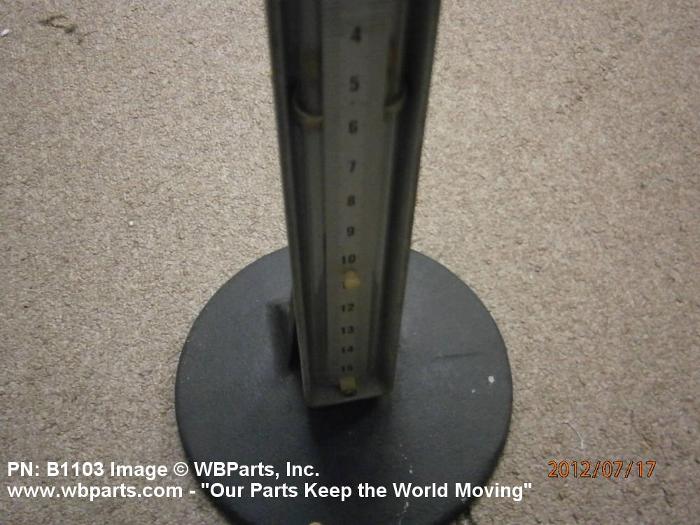

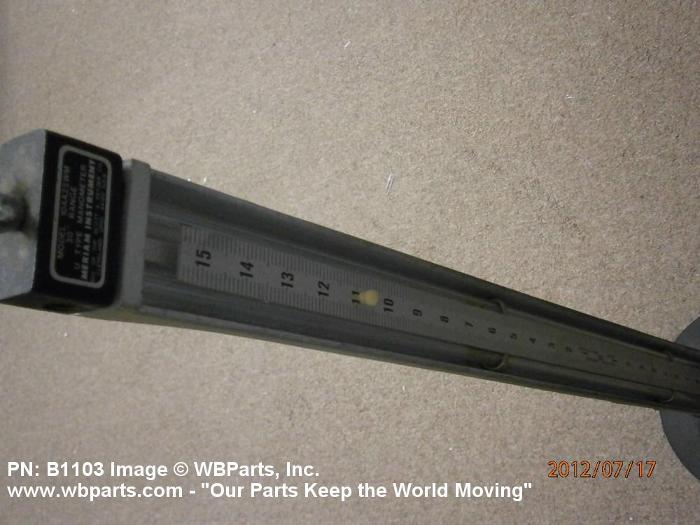

SCALE RANGE | 0.0 TO 20.0 INCHES |
SCALE SMALLEST INCREMENT | 0.1 INCHES |
PARALLAX ELIMINATING FEATURE | NOT PROVIDED |
INDICATOR TYPE | ONE LIQUID |
INDICATING LIQUID FOR WHICH DESIGNED | MERCURY |
INDICATING LIQUID | NOT PROVIDED |
RECEPTACLE TYPE | EXPANSION CHAMBER |
CONTROL VALVE | NOT PROVIDED |
EQUALIZING VALVE | NOT PROVIDED |

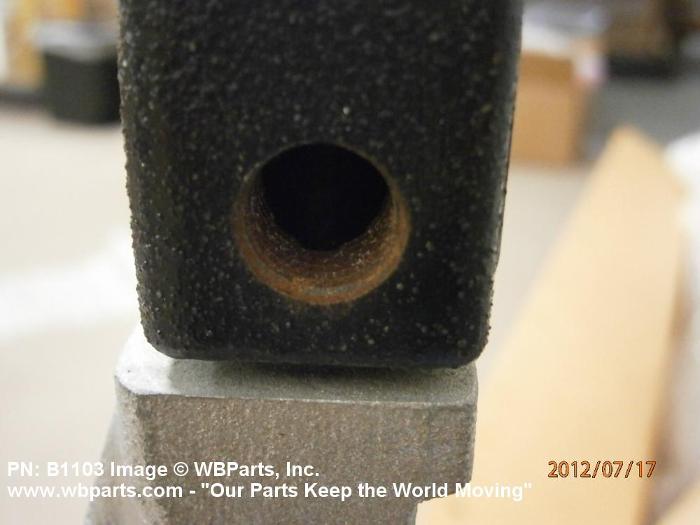

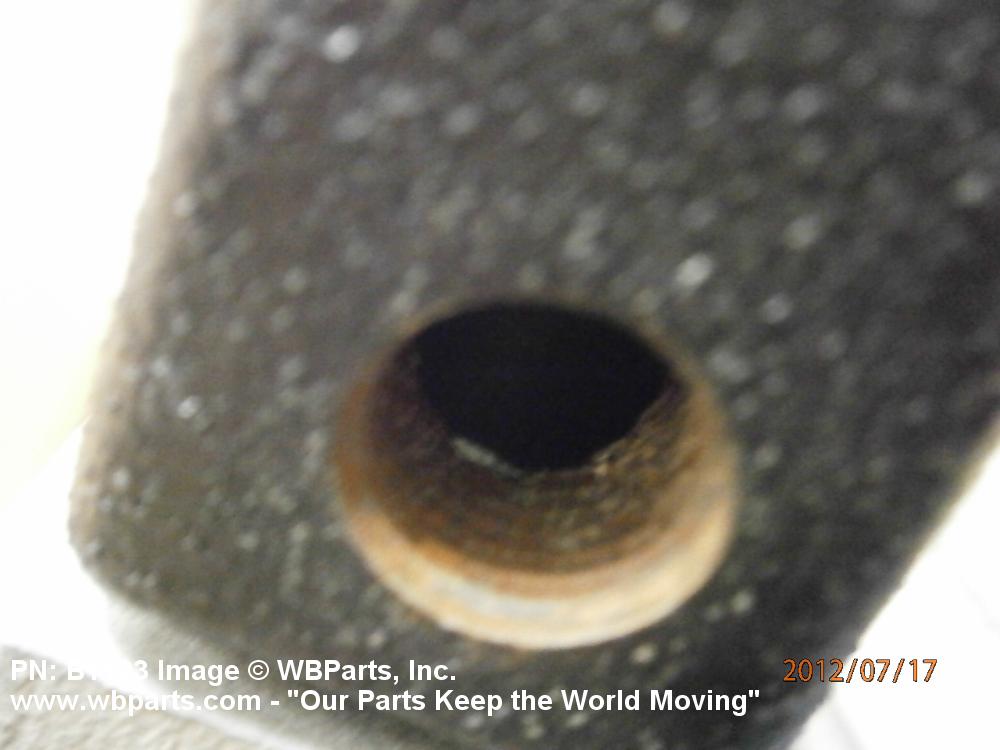

CONNECTION FACILITY TYPE | INTERNAL |
CONNECTION TYPE | THREADED |
THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4 NPT |
CONNECTION LOCATION | UPPER LEFT RIGHT SIDE |
MOUNTING PROVISION FOR WHICH DESIGNED | SURFACE PANEL |
SPECIAL FEATURES | NOT FILLED W/LIQUID |
Restrictions/Controls & Freight Information | NSN 6685-00-848-6353
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
Less than car load rating | ||
Less than truck load rating | F | 150.0 |
Water commodity Code | 653 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Q | Extremely fragile items including delicate instruments. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-848-6353
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
