NSN 6685-00-831-2712 SGF4M11N, XG4MC3KXWWANAX, EA243PJFRWA0
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-831-2712 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: SGF4M11N, XG4MC3KXWWANAX, EA243PJFRWA0, EA243PJFRWB0, EA24-3PJF-RWB0, MILG18997, MIL-G-18997, 451246P033BXWD6S17, 45-1246P033BXWD6S17, 6685-00-831-2712, 00-831-2712, 6685008312712, 008312712
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 SEP 1967 | 00-831-2712 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

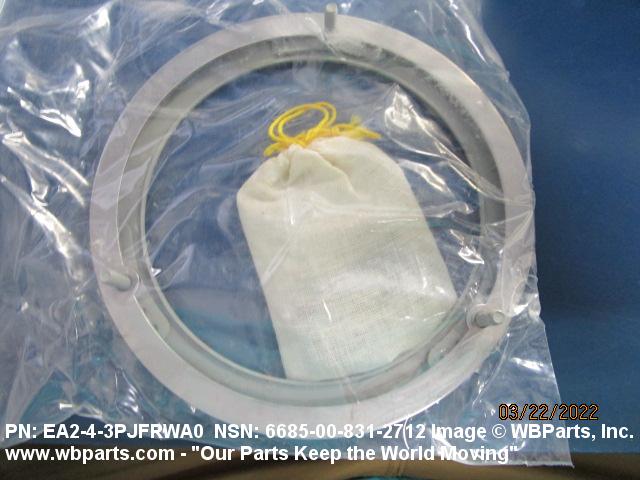

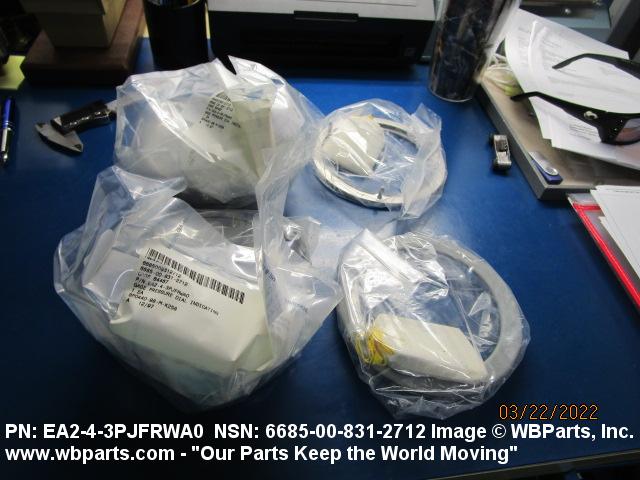

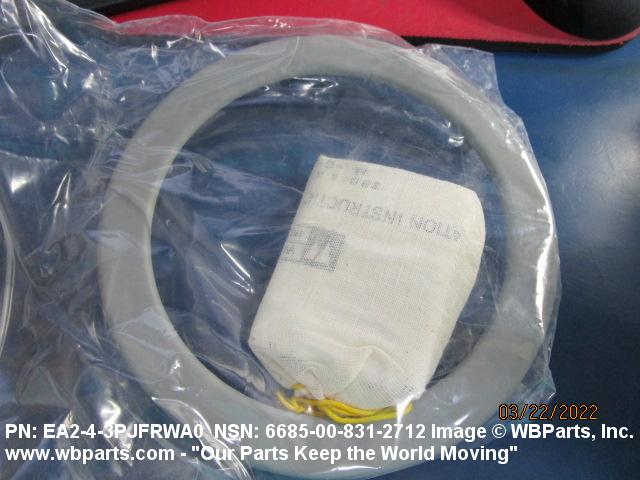

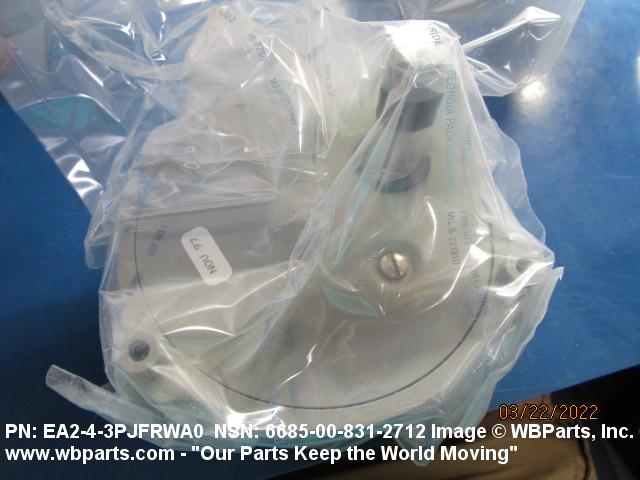

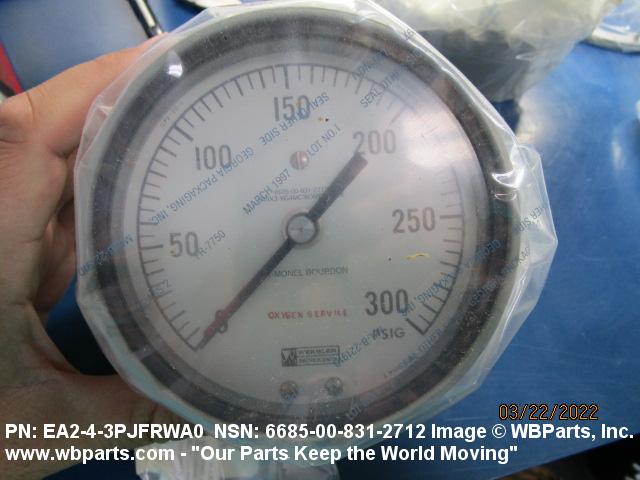

Drawings & Photos | NSN 6685-00-831-2712
Demand History | NSN 6685-00-831-2712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| EA243PJFRWA0 | 2022-11-312 | 3 | DIBBS |
| EA243PJFRWA0 | 2022-07-200 | 2 | DIBBS |
| EA243PJFRWA0 | 2022-03-87 | 2 | DIBBS |
| 6685-00-831-2712 | 2022-03-73 | 4 | United States |
| EA243PJFRWA0 | 2022-02-47 | 4 | DIBBS |
| EA243PJFRWA0 | 2022-02-39 | 4 | DIBBS |
| EA243PJFRWA0 | 2021-05-142 | 3 | DIBBS |
| EA243PJFRWA0 | 2021-05-133 | 3 | DIBBS |
| MILG18997 | 2021-04-109 | 8 | US |
| EA243PJFRWA0 | 2021-02-46 | 2 | DIBBS |
| 6685-00-831-2712 | 2017-11-320 | 7 | DIBBS |
| 6685-00-831-2712 | 2017-04-94 | 6 | DIBBS |
| 6685-00-831-2712 | 2017-01-04 | 7 | DIBBS |
| 6685-00-831-2712 | 2016-12-341 | 5 | DIBBS |
| 6685-00-831-2712 | 2012-09-249 | 21 | DIBBS |
| 6685-00-831-2712 | 2012-08-216 | 8 | DIBBS |
| 6685-00-831-2712 | 2012-01-11 | 9 | DIBBS |
| 6685-00-831-2712 | 2011-12-362 | 5 | DIBBS |
Cross Reference | NSN 6685-00-831-2712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45-1246P033BXWD6S17 | 38056 | ASHCROFT INC. |
| EA24-3PJF-RWB0 | 049X3 | ASHCROFT INC. DBA WEKSLER |
| EA243PJFRWA0 | 049X3 | ASHCROFT INC. DBA WEKSLER |
| MIL-G-18997 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SGF4M11N | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| XG4MC3KXWWANAX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-831-2712
Technical Data | NSN 6685-00-831-2712
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | NICKEL COPPER ALLOY |
| SCALE TYPE | SINGLE |
| SCALE NAME | OXYGEN |
| SCALE RANGE | 0.000 TO 300.000 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 1 PCT ABOVE 5 PCT OF SCALE RANGE |
| GRADUATION UNIT | 25.000 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 5.000 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES,WHITE BACKGROUND |
| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | ALUMINUM |
| OVERALL DIAMETER | 6.000 INCHES NOMINAL |
| OVERALL DEPTH | 2.500 INCHES NOMINAL |
| BEZEL TYPE | THREAD |
| MATERIAL | STEEL |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BACK |
| CONNECTION SIZE | 0.250 IN. TUBE |
| MOUNTING METHOD | FLUSH PANEL |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 5.594 INCHES NOMINAL |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| SPECIAL FEATURES | CLEANED FOR OXYGEN PER BAU343 |
| NONDEFINITIVE SPEC/STD DATA | A DESIGN AND A TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-18997 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | XG4MC3KXWWANAX |
Restrictions/Controls & Freight Information | NSN 6685-00-831-2712
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-831-2712
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
